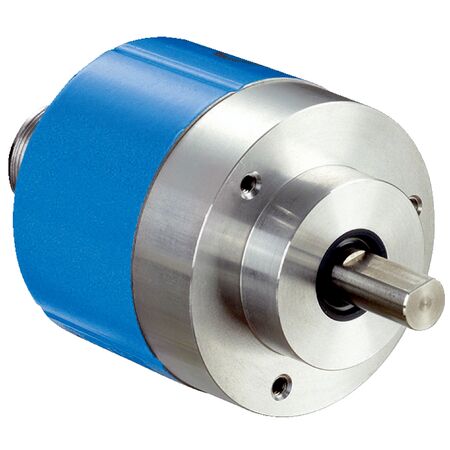

High Resolution Rotary Encoder ARS60-A4B02048 | 2048 Steps/Rev | IP65 Protection | by SICK
The High Resolution Rotary Encoder ARS60-A4B02048 offers exceptional precision with 2,048 steps per revolution, making it ideal for industrial automation and robotics. With a robust aluminum die cast housing and IP65 protection, it ensures reliable performance in harsh environments. Designed for safety with a 300-year MTTFD rating, this encoder is perfect for applications requiring accurate position measurement and feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60-A4B02048 | 2048 Steps/Rev | IP65 Protection | by SICK
Brand: SICK
SKU: 1034549
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 2,048 steps per revolution (11 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male M23, 12-pin axial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65 protection
- Low operating torque of typically 0.3 Ncm
- Wide operating temperature range from -20°C to +85°C
- Certified for safety with MTTFD of 300 years according to EN ISO 13849-1
- Communication via SSI interface with Gray code
- High resistance to shock (50 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial rotary encoders and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft rotation feedback
- Machine tools requiring high resolution and reliability
- Safety-related systems needing certified components
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4B02048 rotary encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications requiring high precision and reliability.
