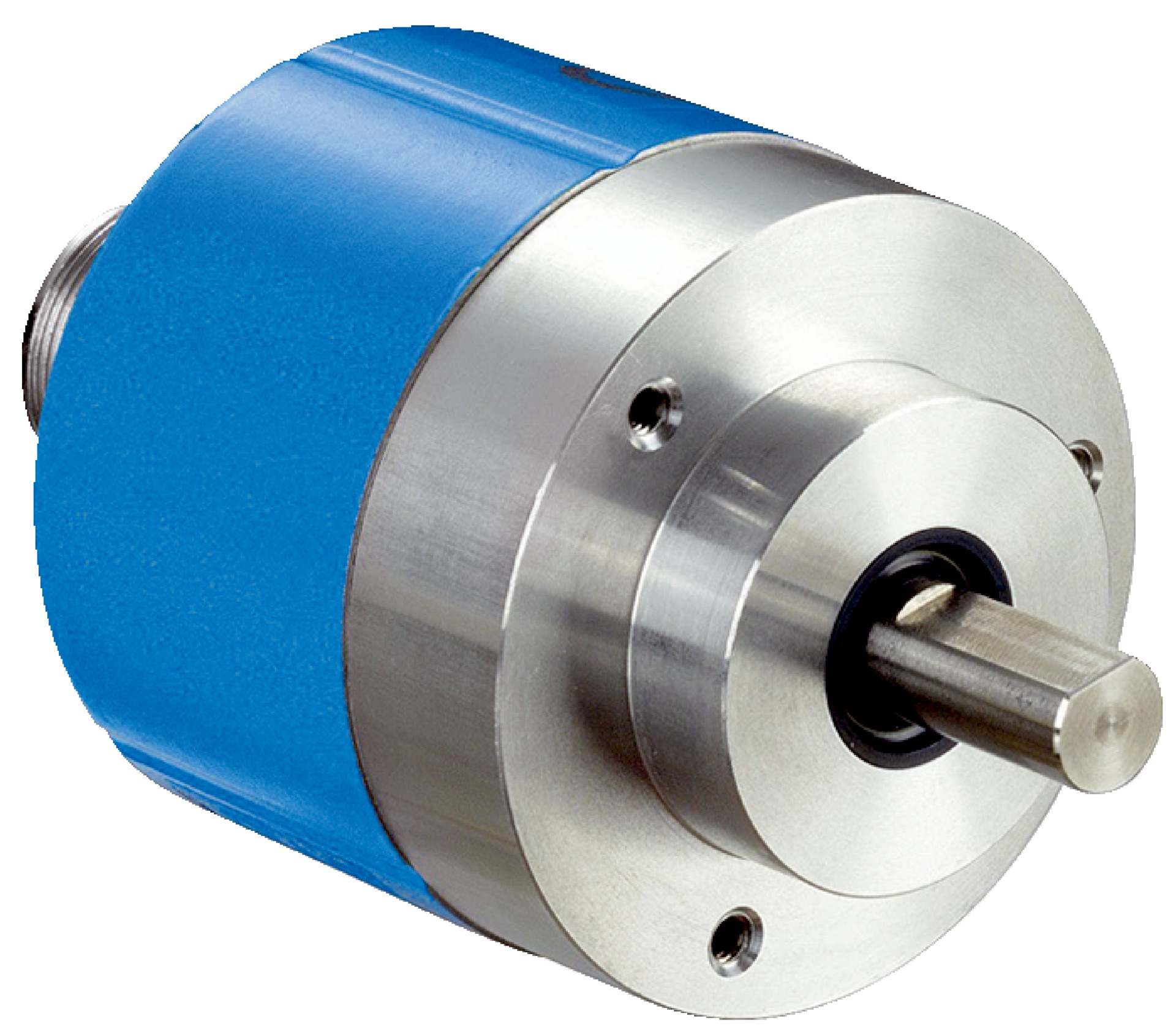

High Resolution Rotary Encoder ARS60 | 2534 Steps/Rev | IP65 Enclosure | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precise position measurement in industrial automation and robotics. With 2,534 steps per revolution and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Ideal for machine tools and conveyor systems, this encoder features a robust aluminum housing and low operating torque, making it perfect for applications requiring accurate angular feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 2534 Steps/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1035798
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 2,534
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: BCD
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,534 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low operating torque of typically 0.3 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- Parallel data communication interface with BCD code
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate angular positioning
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (typ. 90 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

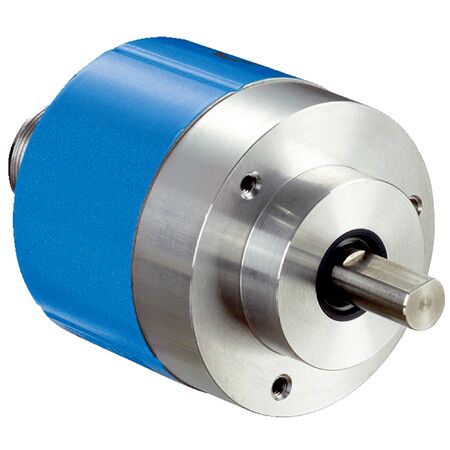

The SICK ARS60-J4B02534 rotary encoder is available for immediate purchase, ideal for industrial automation, robotics, and precision machinery requiring reliable angular position feedback.
