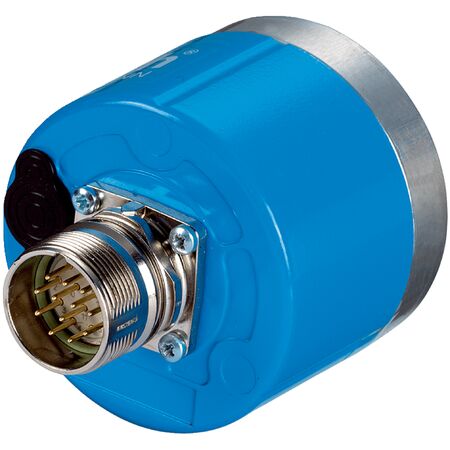

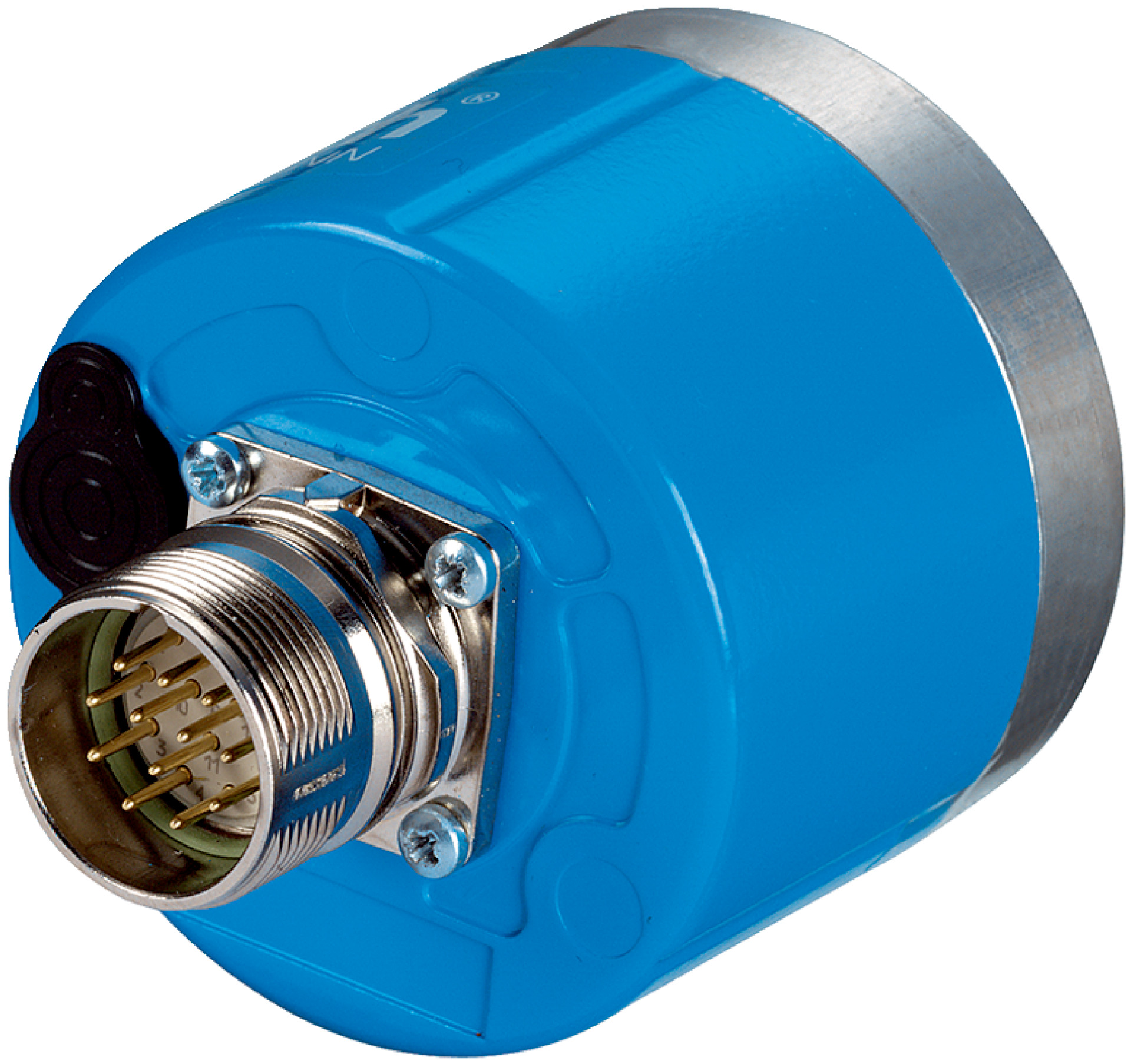

High Resolution Rotary Encoder ARS60 | 32,767 Steps/Rev | IP65 Rated | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precision in industrial automation, offering up to 32,767 steps per revolution and an IP65 rating for robust performance. With a wide operating temperature range from -20°C to +85°C and a low start-up torque, it's perfect for applications in robotics, machine tool positioning, and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 32,767 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1031820
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Maximum resolution: 32,767 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Shaft diameter: 15 mm with front clamp
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65 (IEC 60529)
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with up to 32,767 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft design with front clamp shaft characteristics
- Low start-up torque of typically 0.6 Ncm and operating torque of 0.4 Ncm
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
- SSI communication interface with Gray code output
- Compact and lightweight design weighing approximately 0.3 kg
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-AAB32767 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
