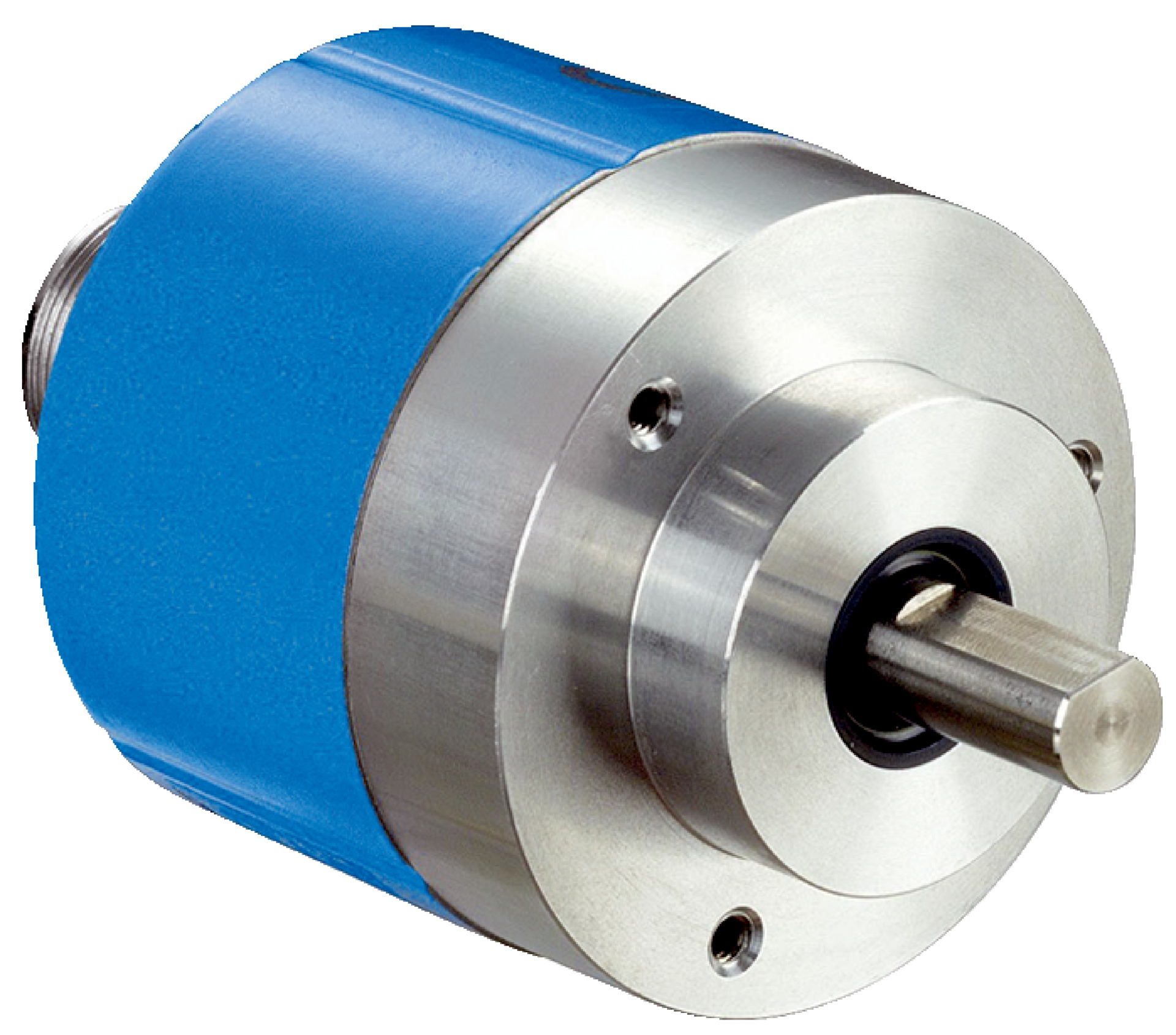

High-Resolution Rotary Encoder ARS60 | 360 Steps/Rev | IP65 Rated | by SICK
The High-Resolution Rotary Encoder ARS60 offers exceptional precision with 360 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust aluminum die-cast housing and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Designed for efficiency, it features low operating torque and high resistance to shocks and vibrations, making it perfect for precision measurement and feedback in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Resolution Rotary Encoder ARS60 | 360 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1034487
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High-Resolution Rotary Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Maximum resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low operating and start-up torque for efficient operation
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data communication interface
- Wide operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-H4B00360 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
