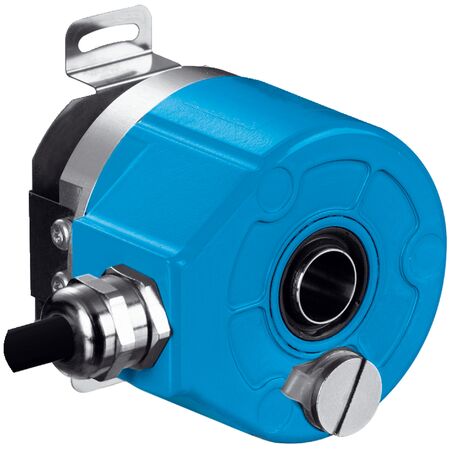

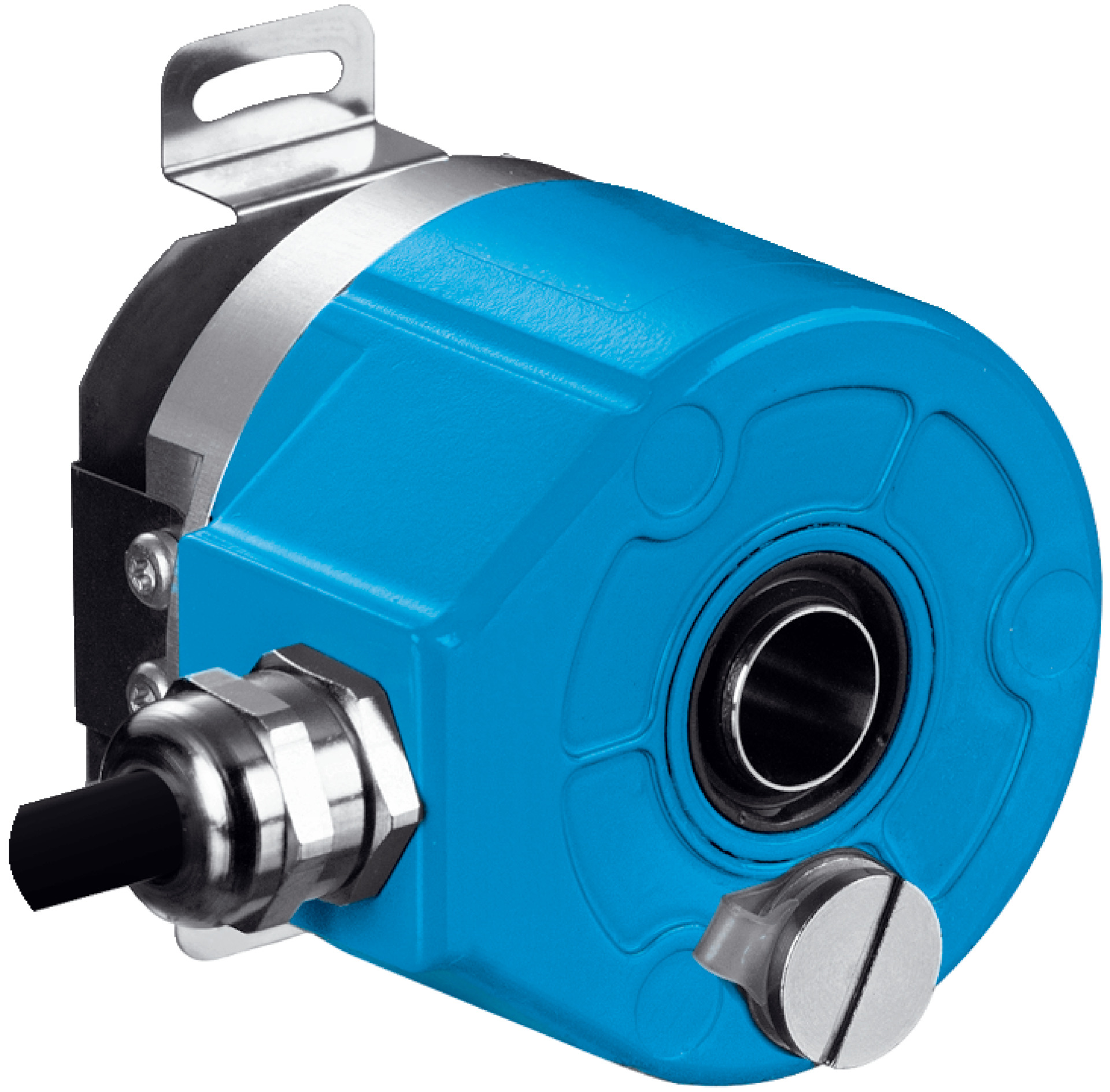

Product Name/Title: High Resolution Rotary Encoder ARS60-ADM04096 | 4096 Steps/Rev | IP64 Enclosure | by SICK
Brand: SICK
SKU: 1033904
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, SSI Rotary Encoder, High Resolution Rotary Encoder
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: 11-wire cable, radial, 5 m length
- Mechanical design: Through hollow shaft with 12 mm diameter
- Housing material: Aluminum die cast
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP64
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum die cast housing with IP64 enclosure rating
- SSI communication interface with Gray code output
- Low operating torque of typically 1.6 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks (50 g) and vibration (20 g)
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Mean time to dangerous failure (MTTFD) of 300 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate angular feedback
- Machine tools requiring high resolution rotary encoders
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with typical operating current of 60 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-ADM04096 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
