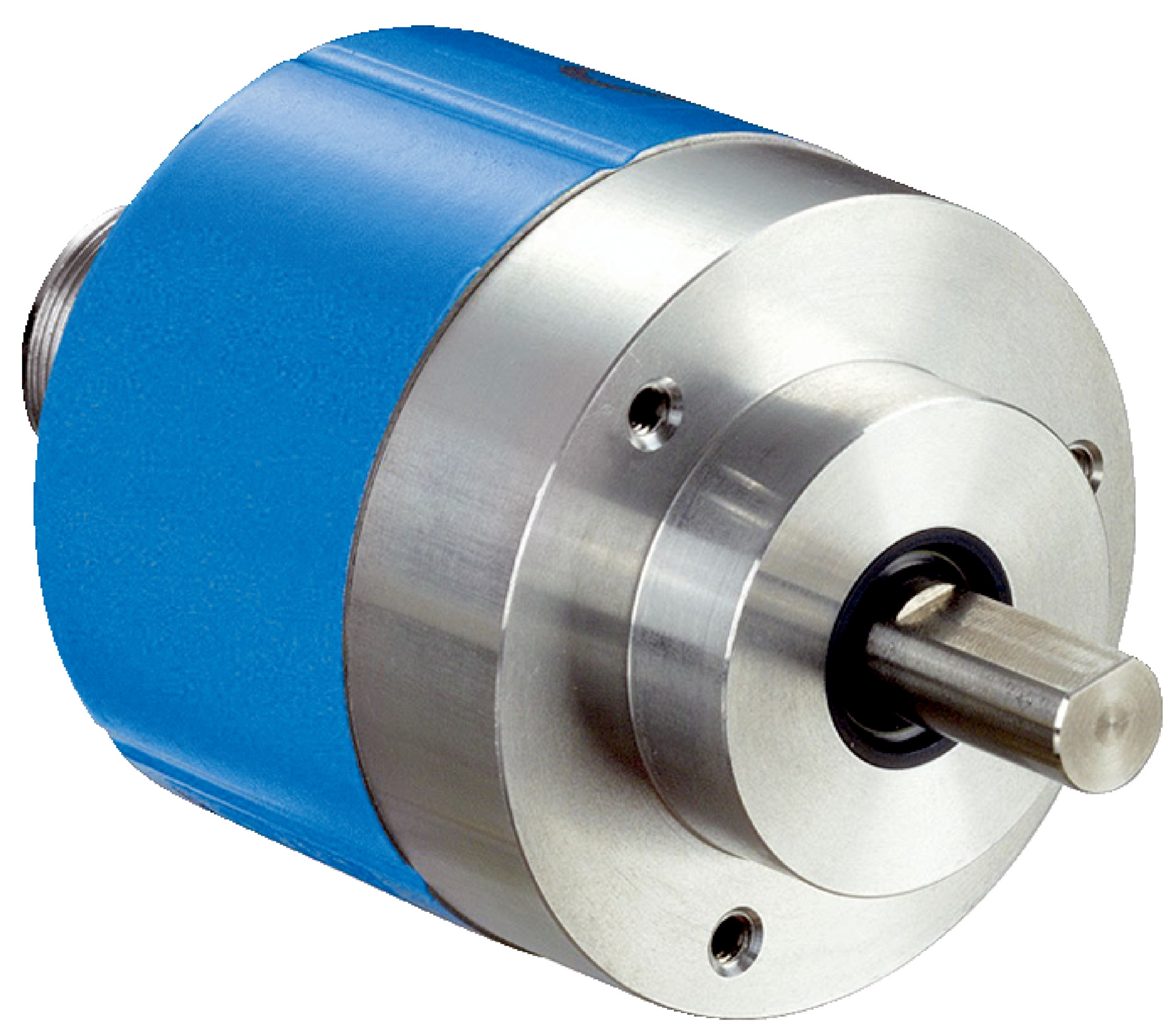

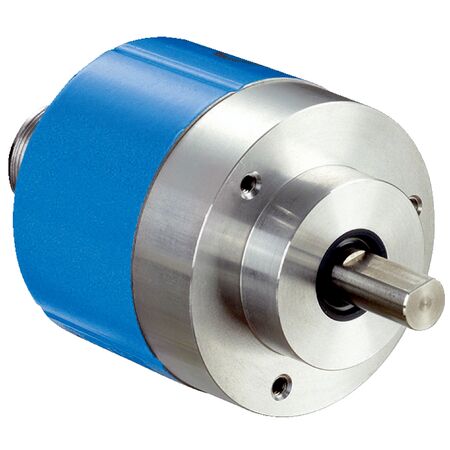

High Resolution Rotary Encoder ARS60-F4B04096 | 4096 Steps/Rev | IP65 Rated | by SICK
The High Resolution Rotary Encoder ARS60-F4B04096 features an impressive 4,096 steps per revolution, ensuring precise measurements for industrial automation and robotics. With an IP65 rated enclosure, it offers robust protection against dust and water, making it ideal for harsh environments. Designed for safety-related monitoring, this encoder is built to last with a durable aluminum housing and low operating torque.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60-F4B04096 | 4096 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1037306
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low operating torque of typically 0.3 Ncm
- Wide operating temperature range from -20°C to +85°C
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data communication interface with Gray code
- Fast initialization time of 80 ms
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (typ. 90 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-F4B04096 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety-related applications.
