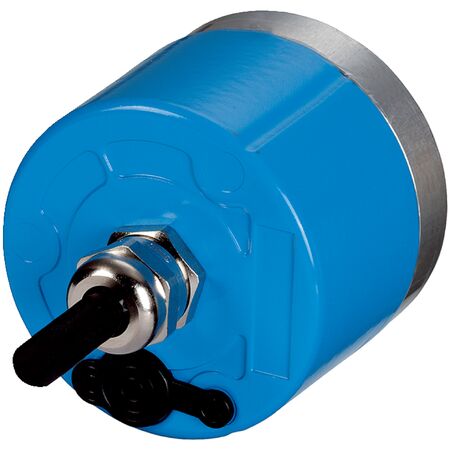

High Resolution Rotary Encoder ARS60 | 4096 Steps/Rev | IP66 Enclosure | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precise position measurement in industrial automation, featuring 4,096 steps per revolution and an IP66 rated enclosure for dust and water protection. With a robust aluminum die cast housing and a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics, machine tools, and conveyor systems requiring accurate motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 4096 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1035157
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data word
- Initialization time: 80 ms
- Code type: BCD
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Connection type: Cable, 22-wire, axial, 3 m
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 0.4 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Cable connection with 22 wires, 3 meters axial length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems monitoring and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating current of typically 90 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-J4S04096 rotary encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
