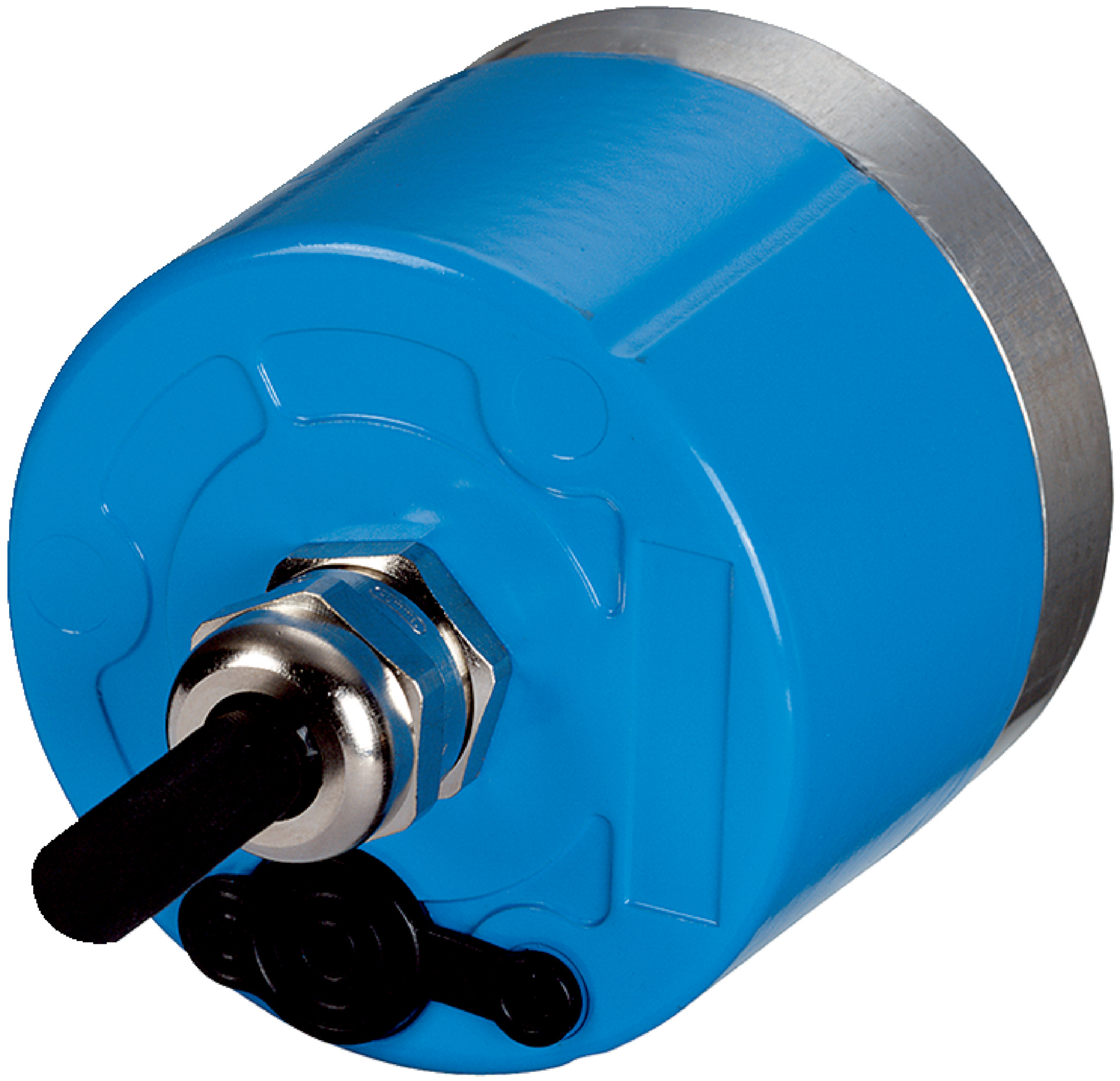

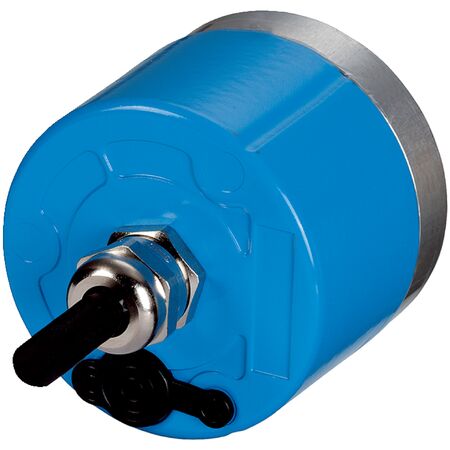

High Resolution Rotary Encoder ARS60 | 4320 Steps/Rev | IP66 Enclosure | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precise position measurement in industrial automation, featuring 4,320 steps per revolution and an IP66 rated enclosure for dust and water protection. With a robust aluminum die cast housing and a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics, machine tools, and conveyor systems, ensuring high reliability and repeatability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 4320 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1037770
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, Industrial Position Sensor
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 4,320
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: 11-wire cable, axial, 5 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,320 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Operating temperature range from -20°C to +85°C
- Low operating torque of typically 0.3 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Communication via SSI interface with Gray code
- High repeatability with standard deviation of 0.005°
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate rotational feedback
- Machine tools requiring high resolution and reliability
- Conveyor systems and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption (typ. 60 mA)
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK ARS60-A4T04320 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
