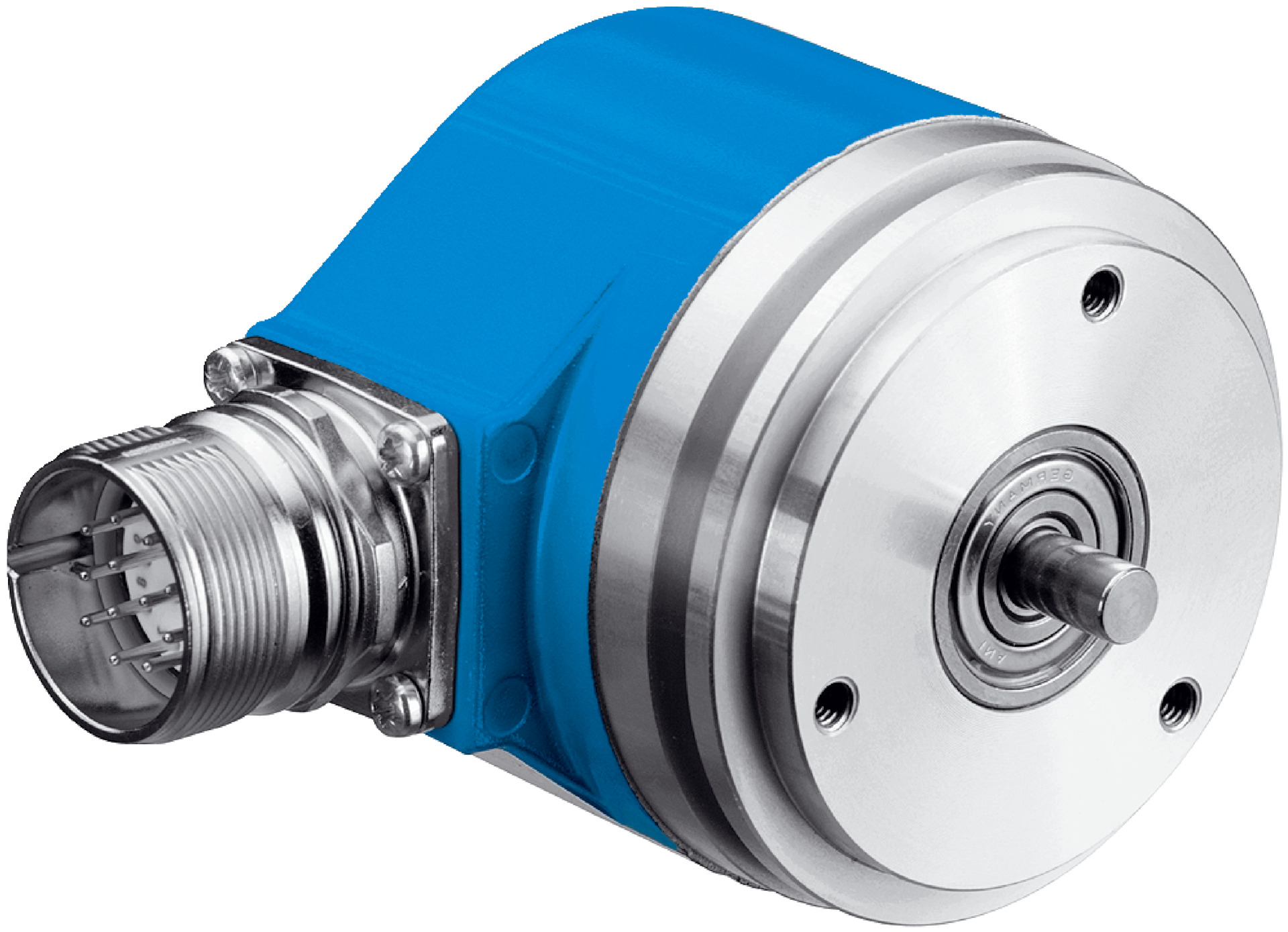

High-Resolution Rotary Encoder ARS60 | 8129 Steps/Rev | IP65 Enclosure | by SICK
The High-Resolution Rotary Encoder ARS60 is engineered for precision in industrial automation, featuring 8,129 steps per revolution and an IP65-rated enclosure for dust and water protection. With a robust aluminum die-cast housing and reliable SSI communication, it's perfect for robotics, machine tool monitoring, and control systems, ensuring excellent repeatability and a wide operating temperature range from -20 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Resolution Rotary Encoder ARS60 | 8129 Steps/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1031446
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High-Resolution Rotary Encoder, SSI Rotary Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 8,129
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20 °C to +85 °C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,129 steps per revolution
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Low operating torque of typically 0.2 Ncm
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Reliable communication via SSI interface
- Gray code output with adjustable code sequence parameter
- Excellent repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption with typical 60 mA operating current
- Compliance with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A1A08129 rotary encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
