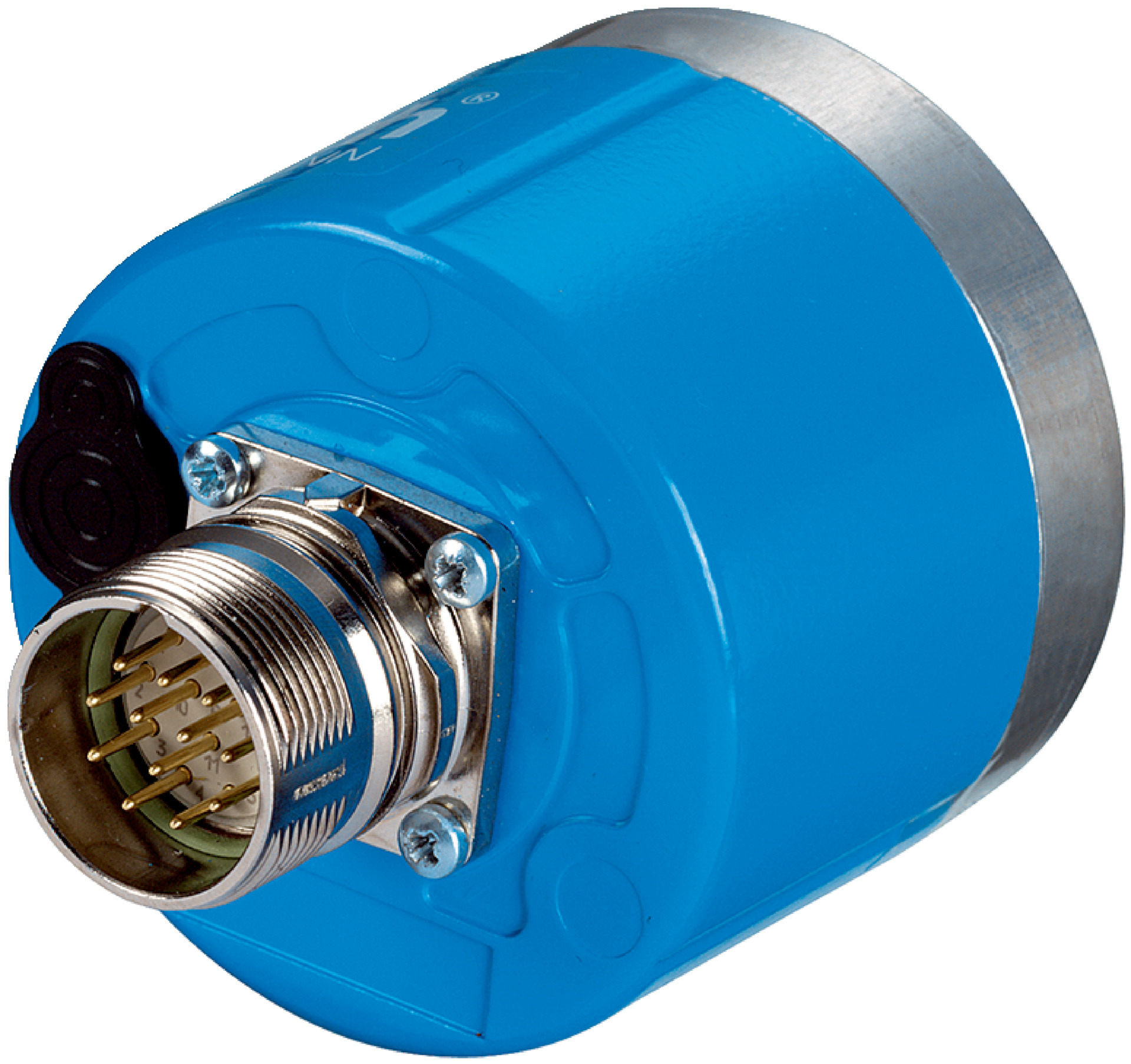

High Resolution Rotary Encoder ARS60 | 8196 Steps/Rev | IP65 Rated | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precision measurement in industrial automation, featuring 8196 steps per revolution and a robust aluminum die cast housing with an IP65 rating. With a wide operating temperature range of -20°C to +85°C and high resistance to shock and vibration, this encoder is perfect for robotics and motion control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 8,196
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Start up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65 (male connector)
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,196 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft with front clamp for secure mounting
- Low start-up torque of typically 0.6 Ncm
- Operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
- SSI communication interface with Gray code output
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Position and speed feedback in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

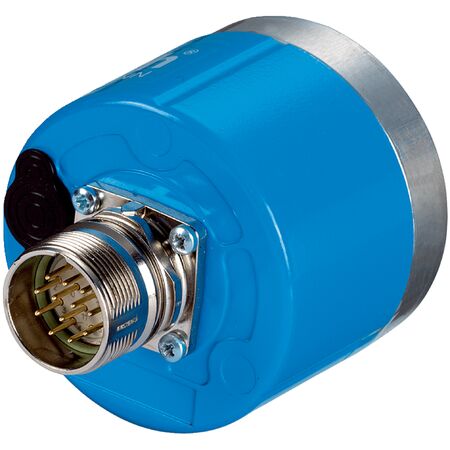

The SICK ARS60-AAB08196 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
