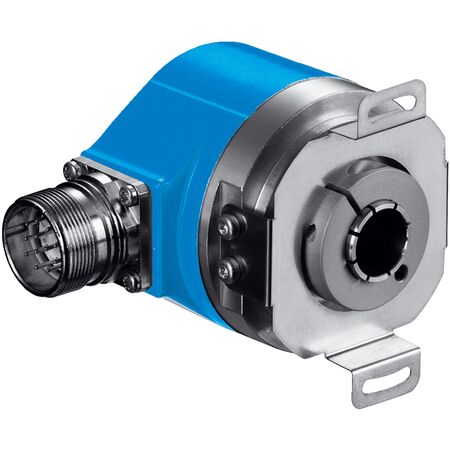

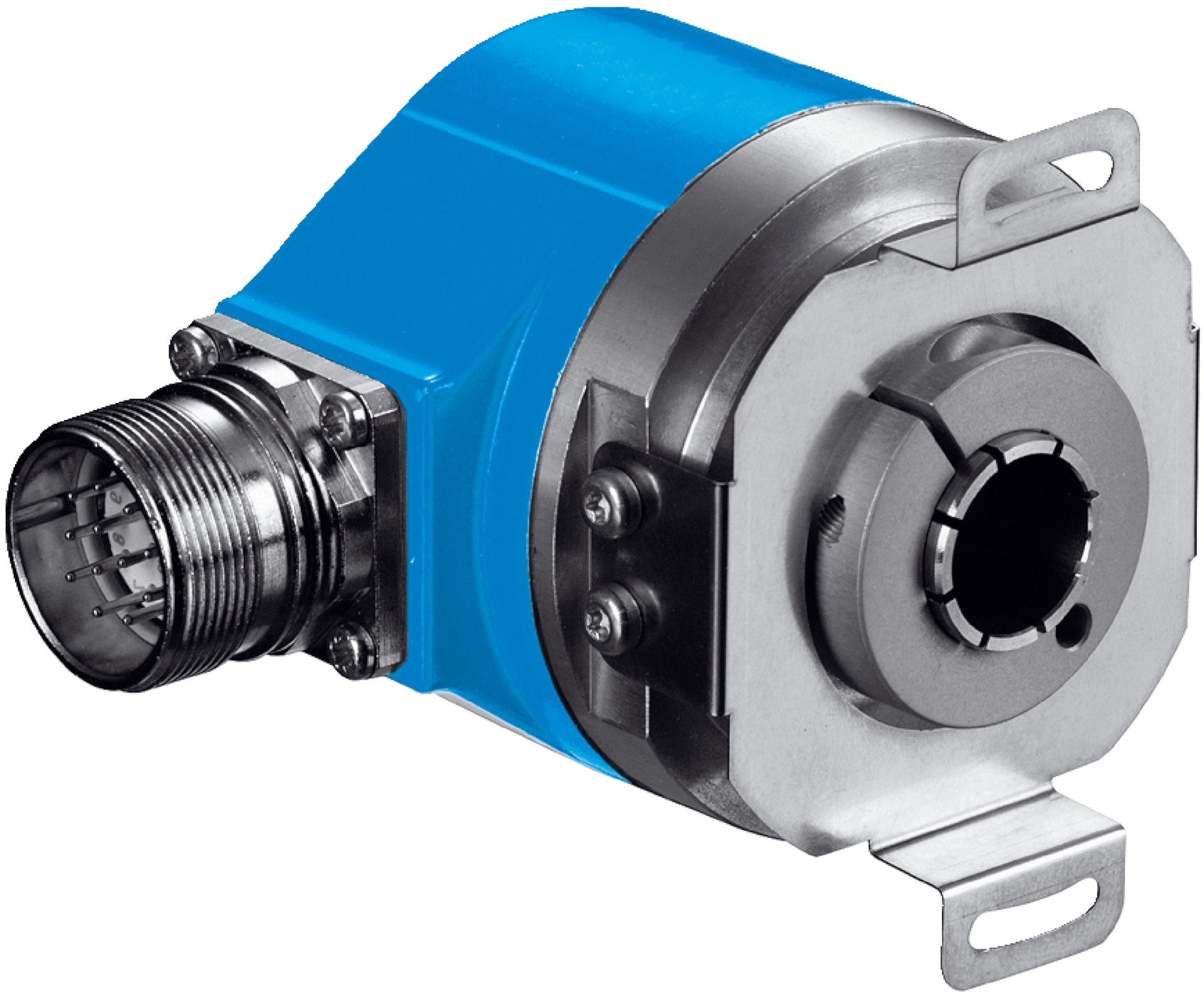

High-Resolution Rotary Encoder ARS60-GDA02880 | 2880 Steps/Rev | IP64 Enclosure | by SICK
The High-Resolution Rotary Encoder ARS60-GDA02880 offers an impressive 2,880 steps per revolution, making it ideal for precision measurement in industrial automation and robotics. With a robust aluminum die-cast housing and an IP64 rated enclosure, it ensures durability and protection against dust and splashes. Designed for professional installation, this encoder is perfect for safety-related monitoring in machinery and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 2,880 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray, trimmed
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Start-up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Operating speed: Up to 3,000 min⁻¹
- Enclosure rating: IP64
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,880 steps per revolution
- Robust aluminum die cast housing
- Through hollow shaft design with 12 mm diameter
- IP64 rated enclosure for dust and splash protection
- Low start-up torque of typically 2.2 Ncm
- High repeatability with standard deviation of 0.005°
- Parallel data communication interface
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-GDA02880 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
