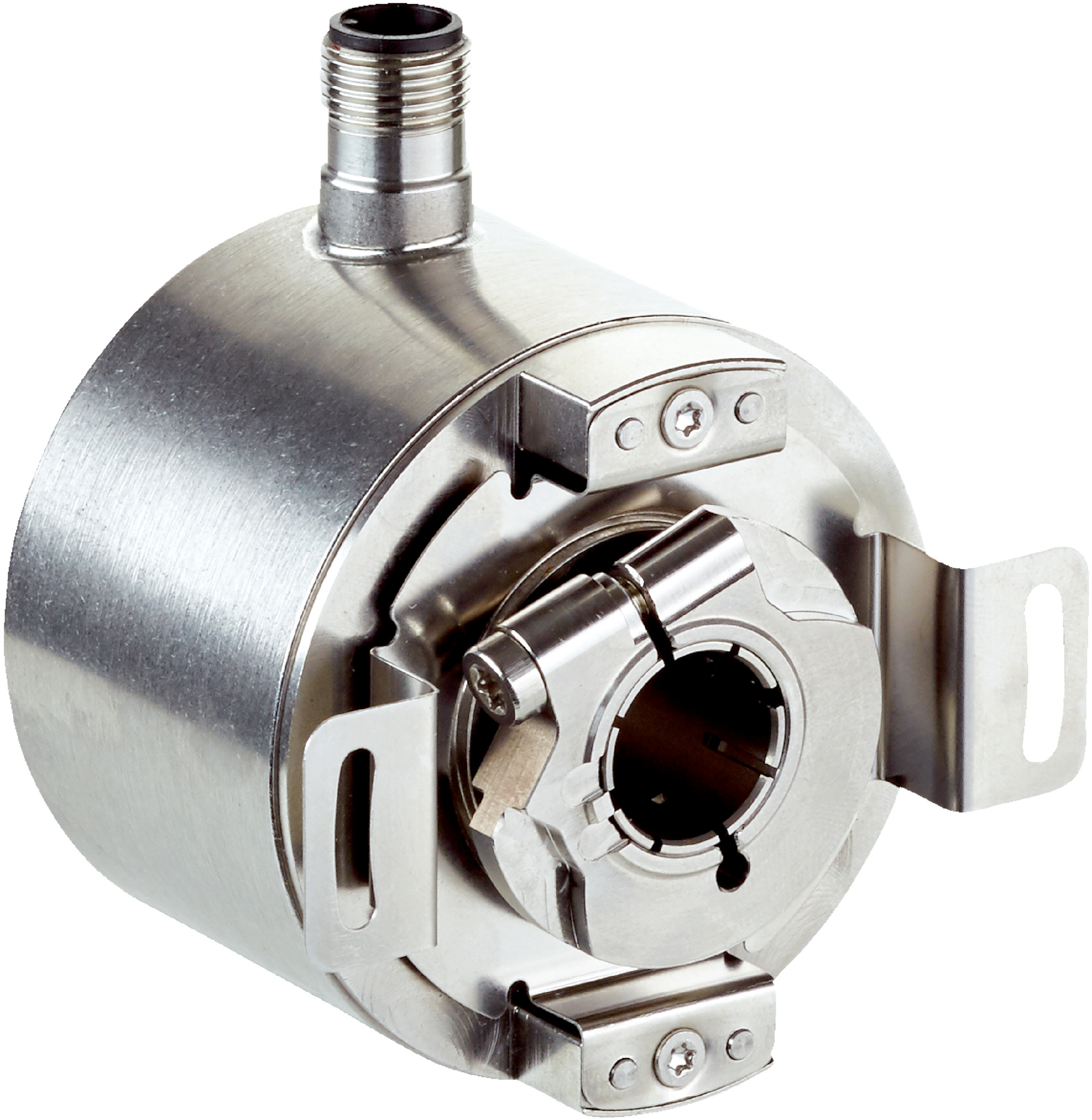

High-Resolution Safety Encoder AFM60I-BCRC262144 | 262,144 Steps/Rev | IP67 Rated | by SICK

BRAND: SICK
SKU: 1138218
$3,131.80 List price: $3,936.30
+ −
30 Days Return Electricians Unlock Trade Access
The AFM60I-BCRC262144 high-resolution safety encoder delivers exceptional precision with 262,144 steps per revolution and a robust IP67 enclosure. Designed for industrial automation and safety-critical applications, it features a long MTTFD of 250 years and fast initialization time of 50 ms, ensuring reliable performance in demanding environments. Ideal for robotics and motion monitoring, this encoder is built to withstand extreme temperatures from -40 °C to +100 °C.
Technical Specifications
  • MTTFD: 250 years (EN ISO 13849-1)
  • Resolution: 262,144 steps per revolution (18 bit), 4,096 revolutions (12 bit)
  • Error limits G: 0.03°
  • Repeatability standard deviation σr: 0.002°
  • Communication interface: SSI + incremental, Gray code
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Clock frequency: 2 MHz
  • Output frequency: ≤ 820 kHz
  • Load current: ≤ 30 mA
  • Supply voltage: 4.5 to 32 V DC
  • Power consumption: ≤ 0.5 W
  • Connection type: Male connector, M12, 12-pin, radial
  • Mechanical design: Blind hollow shaft, 3/8 inch diameter
  • Operating speed: 6,000 min⁻¹
  • Bearing lifetime: 3.0 x 10^9 revolutions
  • Enclosure rating: IP67
  • Operating temperature: -40 °C to +100 °C
  • Dimensions (H x L x W): 40mm x 60mm x 40mm
  • Weight: 0.5 kg
Key Features
  • High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
  • Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
  • SSI and incremental communication interfaces with Gray code
  • Robust stainless steel V2A housing, shaft, and flange
  • IP67 rated enclosure for protection against dust and water
  • Operating temperature range from -40 °C to +100 °C
  • Low power consumption ≤ 0.5 W with reverse polarity protection
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
  • Fast initialization time of 50 ms and position forming time under 1 µs
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial safety encoders and electrical connections to ensure compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Safety-related motion monitoring
  • Robotics and machinery requiring precise position feedback
  • High-speed rotary applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable stainless steel construction extends product lifespan reducing waste
  • Low power consumption contributes to energy efficiency in industrial systems
  • High reliability reduces downtime and maintenance frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK AFM60I-BCRC262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
