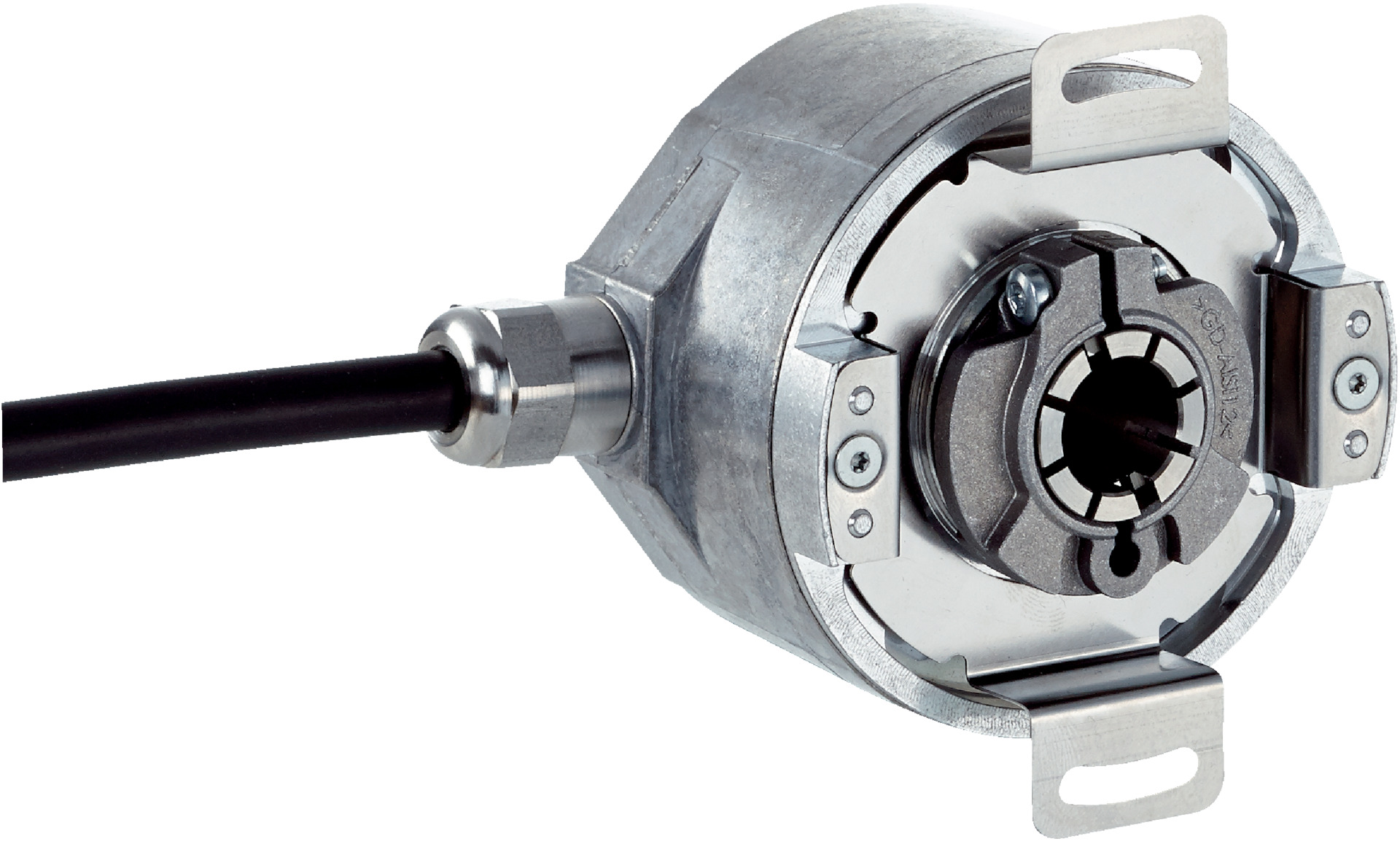

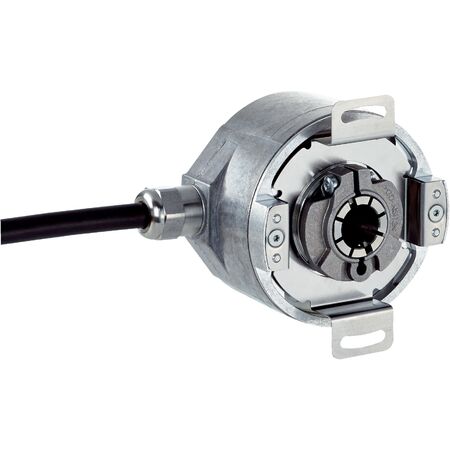

High-Resolution Safety Encoder AFM60A-TDKK262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The AFM60A-TDKK262144 high-resolution safety encoder delivers exceptional precision with 262,144 steps per revolution and a robust design featuring a stainless steel shaft. Ideal for industrial automation and safety-critical applications, it boasts an impressive MTTFD of 250 years and operates at speeds up to 9,000 min⁻¹. With IP65 and IP67 ratings, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Load resistance: ≥ 120 Ω
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 10 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating speed: ≤ 9,000 min⁻¹
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with stainless steel shaft and aluminum housing
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Gray code and Sin/Cos signals
- High repeatability with standard deviation of 0.002°
- Low operating and start-up torque for minimal mechanical load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical safety standards and encoder integration to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Robotics and machinery requiring precise position feedback
- High-speed rotary applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-TDKK262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
