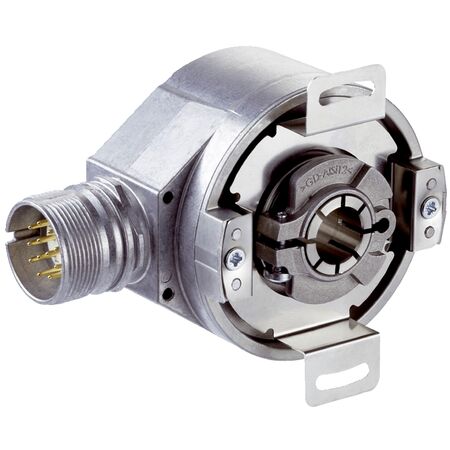

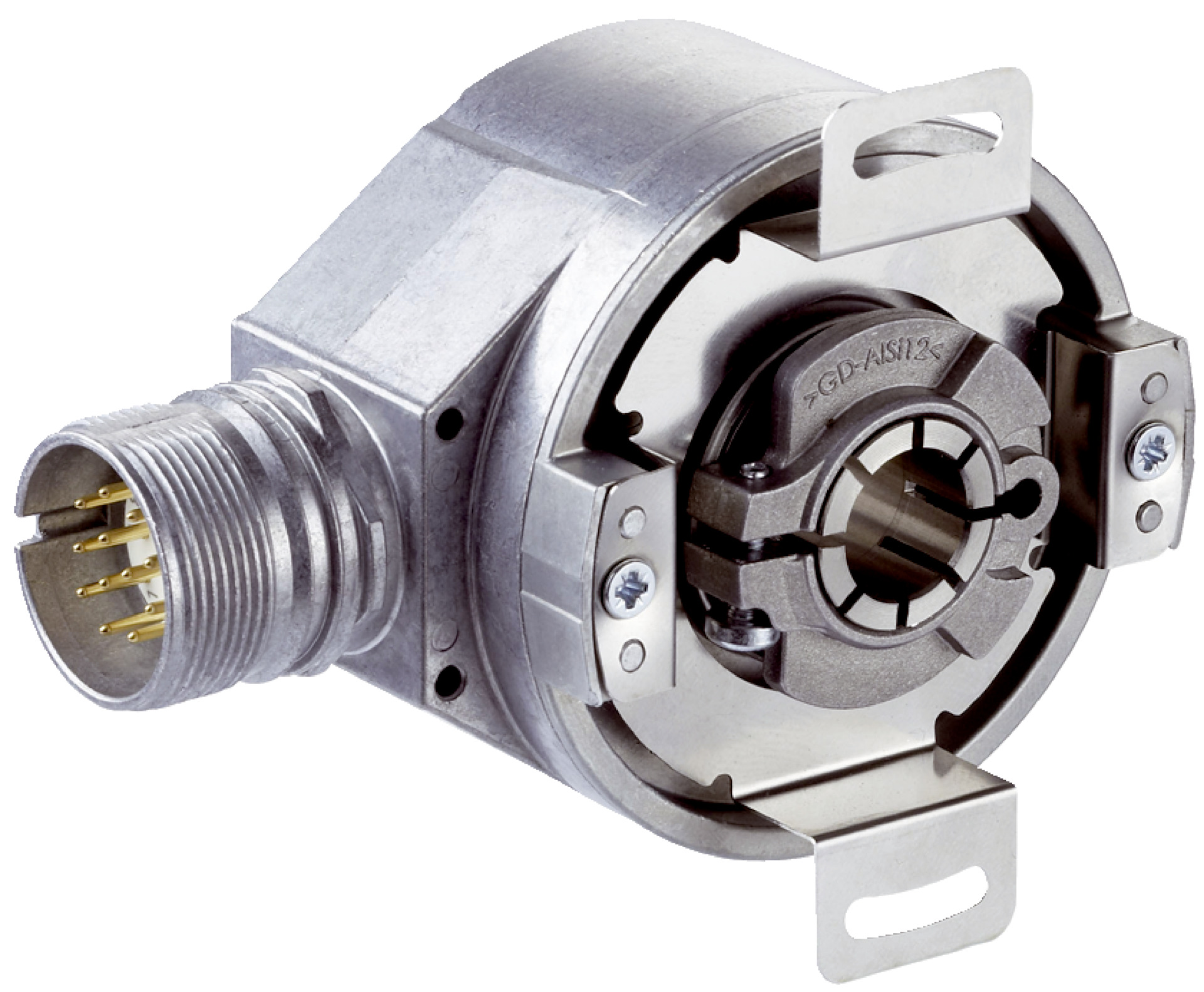

High-Resolution Safety Encoder AFM60A-TELA262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The AFM60A-TELA262144 high-resolution safety encoder offers an impressive 262,144 steps per revolution, making it ideal for industrial automation and safety-critical applications. With a robust design featuring IP65 and IP67 ratings, it ensures reliable performance in harsh environments. Perfect for robotics and motion control systems, this encoder guarantees precise position sensing and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.03°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 12 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.8 Ncm
- Operating torque: < 0.6 Ncm
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.05 mm radial, ± 0.1 mm axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: –40 °C to +100 °C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Safety-related mean time to dangerous failure (MTTFD) of 250 years compliant with EN ISO 13849-1
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 shaft side and IP67 housing side protection for harsh environments
- Low start-up torque (<0.8 Ncm) and operating torque (<0.6 Ncm)
- Fast position forming time under 1 microsecond
- Communication via SSI and incremental HTL interfaces
- Reverse polarity protection and low power consumption (≤0.7 W)
- High resistance to shocks (60 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems to ensure proper electrical and mechanical integration.
Applications
- Industrial automation for precise position sensing
- Safety-related machinery control
- Robotics and motion control systems
- High-speed rotary applications requiring accurate feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60A-TELA262144 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
