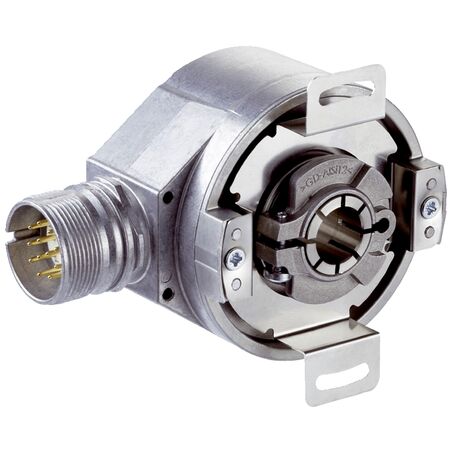

High-Resolution Safety Encoder AFM60A-TGAA065536 | 65,536 Steps/Rev | IP65/IP67 Rated | by SICK
The AFM60A-TGAA065536 high-resolution safety encoder delivers exceptional precision with 65,536 steps per revolution and a robust design featuring a stainless steel shaft. Ideal for industrial automation and safety-critical applications, it boasts an impressive MTTFD of 250 years and operates efficiently with low power consumption. With IP65 and IP67 ratings, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 65,536 steps per revolution (16 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 14 mm diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.6 Ncm at +20 °C
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 60 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 65,536 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low power consumption of ≤ 0.7 W
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- Excellent repeatability with standard deviation of 0.002°
- Resistance to shocks up to 60 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Safety-related motion monitoring
- Robotics and machinery requiring precise position feedback
- High-speed rotary applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-TGAA065536 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
