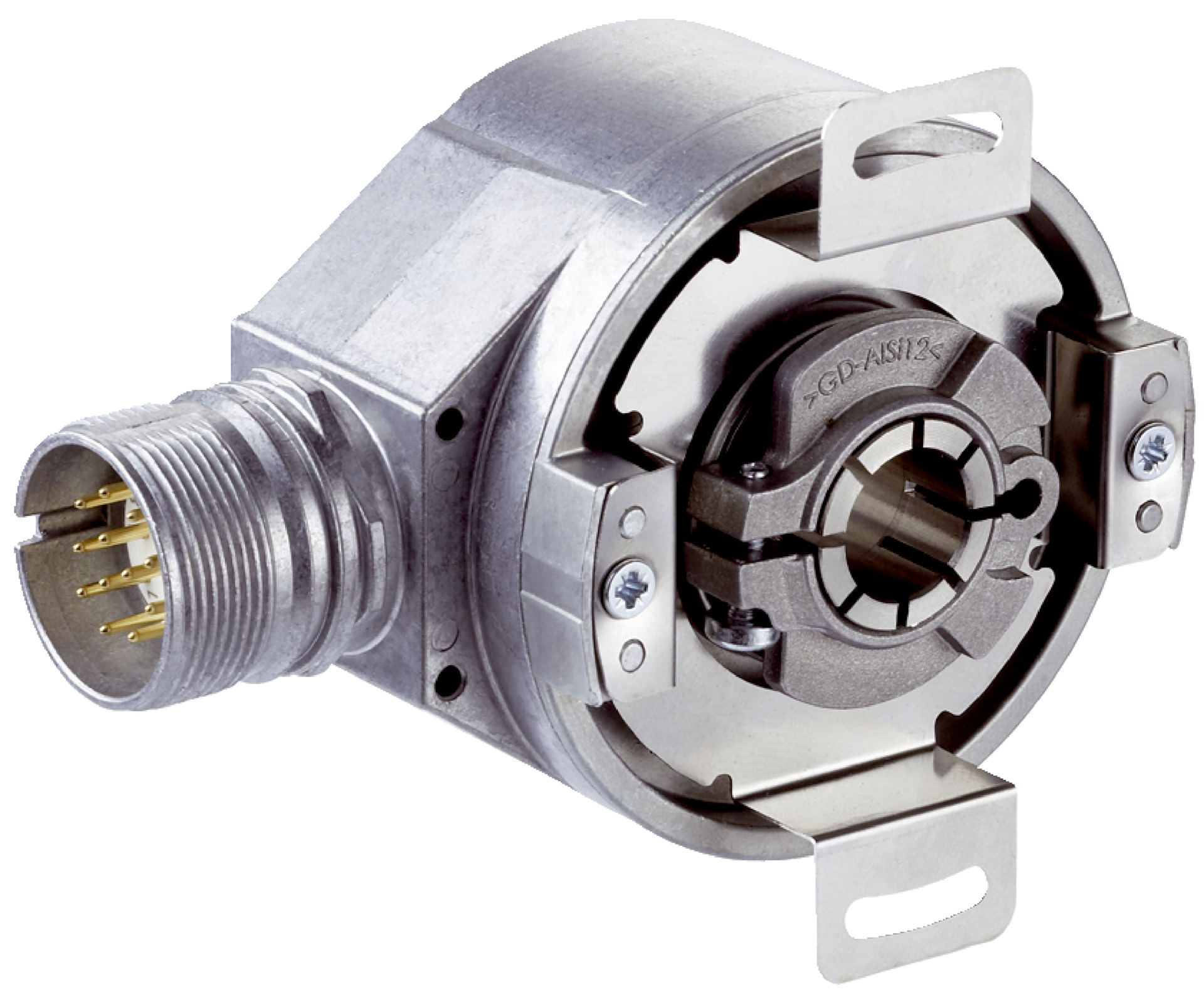

High-Resolution Safety Encoder AFM60B | 32,768 Steps/Rev | IP65/IP67 Rated | by SICK
The High-Resolution Safety Encoder AFM60B is designed for precise position sensing in industrial automation. With a remarkable resolution of 32,768 steps per revolution and an impressive MTTFD of 250 years, this encoder ensures reliability in safety-related motion control systems. Its robust design features an IP65 rated shaft side and IP67 rated housing side, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 32,768 steps/revolution x 4,096 revolutions (15 bit x 12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Through hollow shaft, 1/2 inch diameter
- Materials: Stainless steel shaft, aluminum flange and housing
- Operating torque: < 0.6 Ncm at 20°C
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Safety-related mean time to dangerous failure (MTTFD) of 250 years
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Low power consumption of ≤ 0.7 W
- Reverse polarity protection included
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter for clockwise/counterclockwise counting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder integration and electrical safety standards.
Applications
- Industrial automation for precise position sensing
- Safety-related motion control systems
- Robotics and machinery requiring high accuracy feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

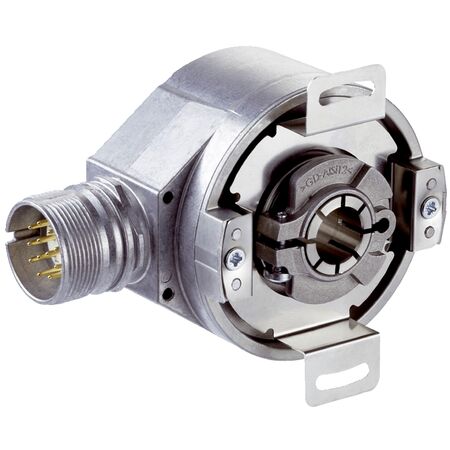

The SICK AFM60B-TFAA032768 safety encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
