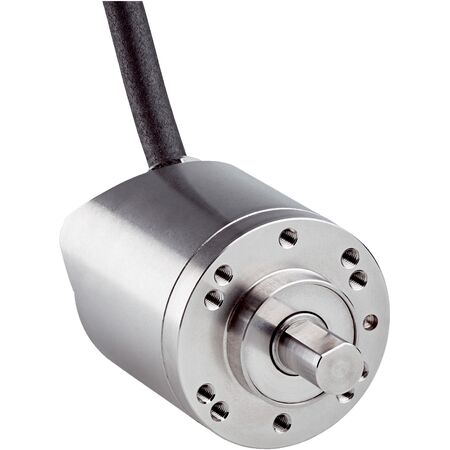

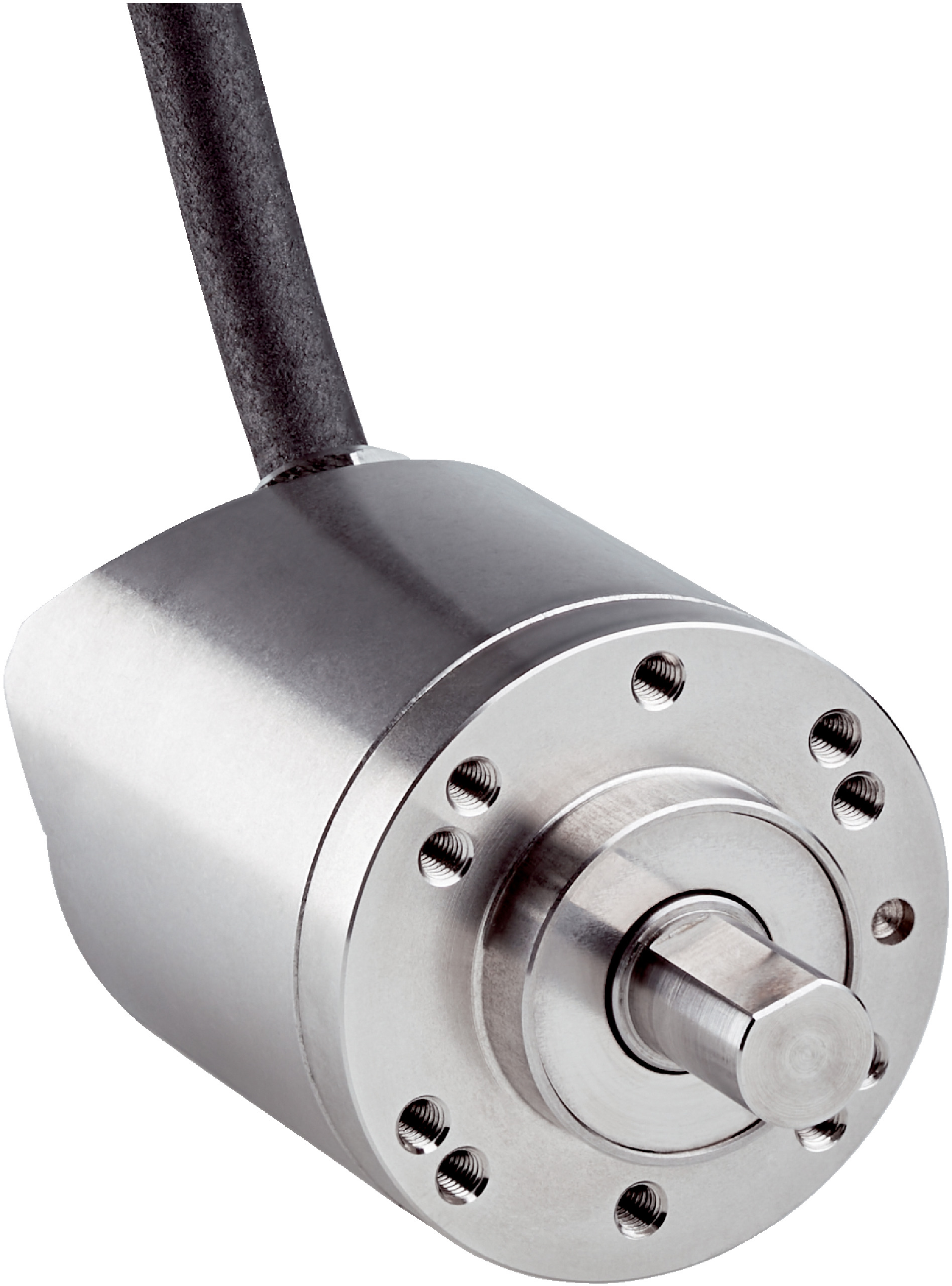

High-Resolution SSI Encoder | 16,384 Steps/Rev | IP67 & IP69K Rated | Low Torque | by SICK
The High-Resolution SSI Encoder offers an impressive 16,384 steps per revolution, making it ideal for industrial automation and precision machinery. With a robust stainless steel housing and an IP67/IP69K rating, it ensures durability and protection against dust and water. Designed for applications requiring accurate position feedback, this encoder features a fast position forming time of 125 µs and low operating torque, making it perfect for robotics and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit)
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Operating torque: < 1 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Low operating torque less than 1 Ncm
- Fast position forming time of 125 µs
- Reverse polarity protection included
- Wide operating temperature range from -40 °C to +100 °C
- High resistance to shock (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption of ≤ 1.5 W minimizes energy use
- High ingress protection reduces failure rates in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-S3PM016384 SSI Encoder is available for immediate purchase, ideal for industrial automation and safety-related position feedback applications.
