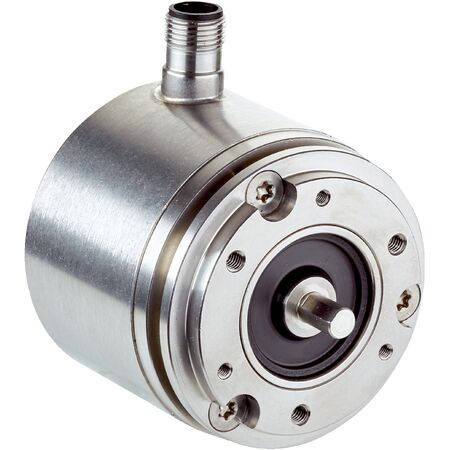

High-Resolution SSI Encoder | 262,144 Steps | IP67 Rated | by SICK
The AFS60I-S1AC262144 high-resolution SSI encoder offers an impressive 262,144 steps per revolution, making it ideal for precision positioning in industrial automation and robotics. With a robust stainless steel design and an IP67 rating, it ensures reliable performance in harsh environments. Experience fast initialization and low power consumption, perfect for safety-related applications requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Materials: Stainless steel V2A (shaft, flange, housing)
- Start up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with flat, 6 mm diameter and 10 mm length
- Low power consumption ≤ 0.5 W without load
- Reverse polarity protection included
- High operating speed up to 9,000 min⁻¹
- IP67 rated enclosure for shaft and housing sides
- Excellent resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
- Communication via SSI interface with Gray code
- Fast initialization time of 50 ms and position forming time < 1 µs
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Safety-related parameter MTTFD of 250 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision positioning and motion control
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption minimizes energy usage
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-S1AC262144 SSI Encoder is available for immediate purchase, ideal for industrial automation and safety-related positioning applications.
