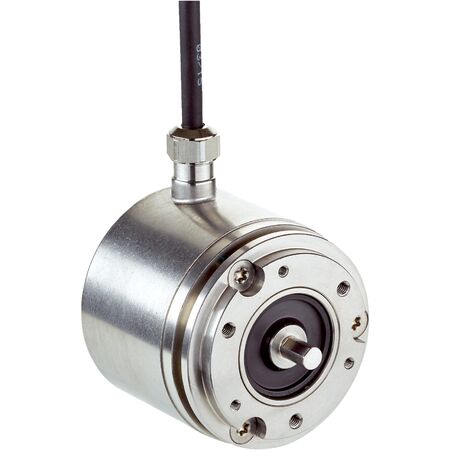

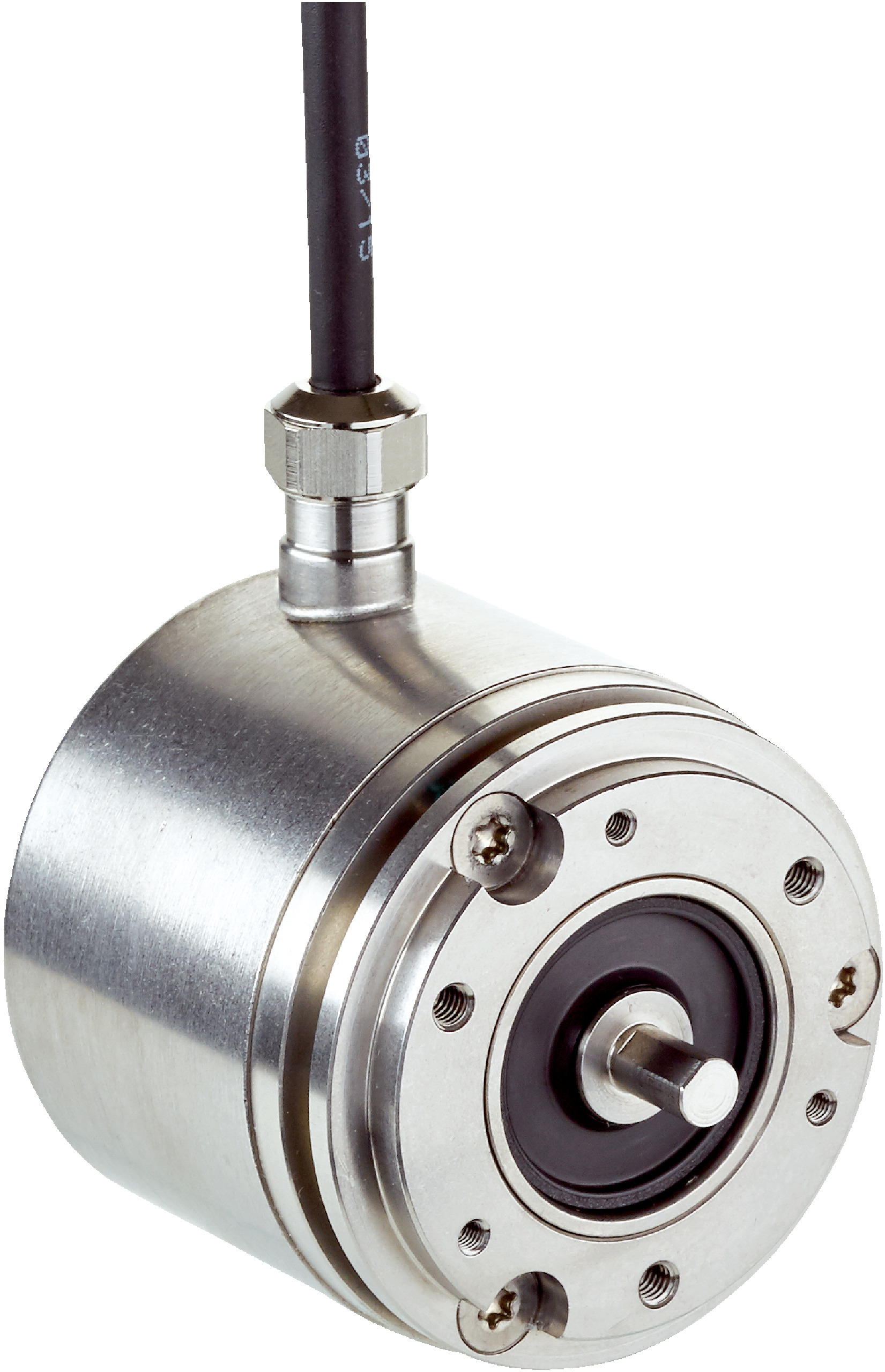

High-Resolution SSI Encoder | 262,144 Steps/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The High-Resolution SSI Encoder offers an impressive 262,144 steps per revolution, making it ideal for precision positioning in industrial automation and control systems. With a robust stainless steel housing and an IP67 rating, this encoder is built to withstand harsh environments while ensuring excellent repeatability and low power consumption. Perfect for robotics and machine tool applications, it delivers reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Set (electronic adjustment): H-active (L = 0 - 3 V, H = 4.0 - U s V)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 ... 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: 9,000 min⁻¹
- Moment of inertia of the rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft side and housing side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with flat, 6 mm diameter and 10 mm length
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W
- Reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Excellent repeatability with standard deviation σr of 0.002°
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision positioning and measurement tasks
- Machine tool and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-S1PK262144 SSI Encoder is available for immediate purchase, ideal for high-precision industrial automation and control applications.
