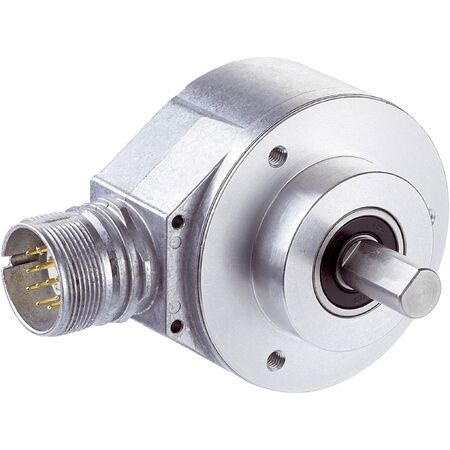

High-Resolution SSI Encoder | 32,768 Steps & 4,096 Revolutions | IP65/IP67 Rated | by SICK
The High-Resolution SSI Encoder is designed for precision in industrial automation, featuring 32,768 steps per revolution and 4,096 revolutions for accurate positioning. With an IP65 rating on the shaft side and IP67 on the housing side, it ensures robust performance in harsh environments. Ideal for robotics and motion control, this encoder offers low power consumption and high repeatability, making it a reliable choice for safety-related machinery monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Resolution: 32,768 steps per revolution (15 bit) and 4,096 revolutions (12 bit)
- Error limits: 0.05°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI + Sin/Cos, Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 200 kHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm, length: 19 mm, stainless steel with flat
- Housing material: Aluminum die cast
- Operating torque: < 0.3 Ncm
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 (shaft side), IP67 (housing side)
- Operating temperature range: -40 °C to +100 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid shaft and face mount flange
- Stainless steel shaft with flat for secure mounting
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Low operating torque and startup torque for efficient operation
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Communication via SSI interface with Sin/Cos output
- High repeatability with standard deviation of 0.002°
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Safety-related machinery monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-S4KA032768 SSI Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
