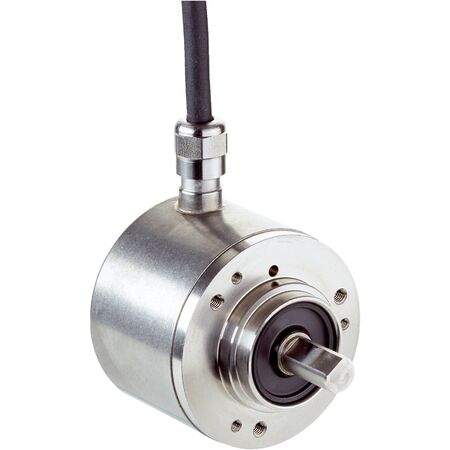

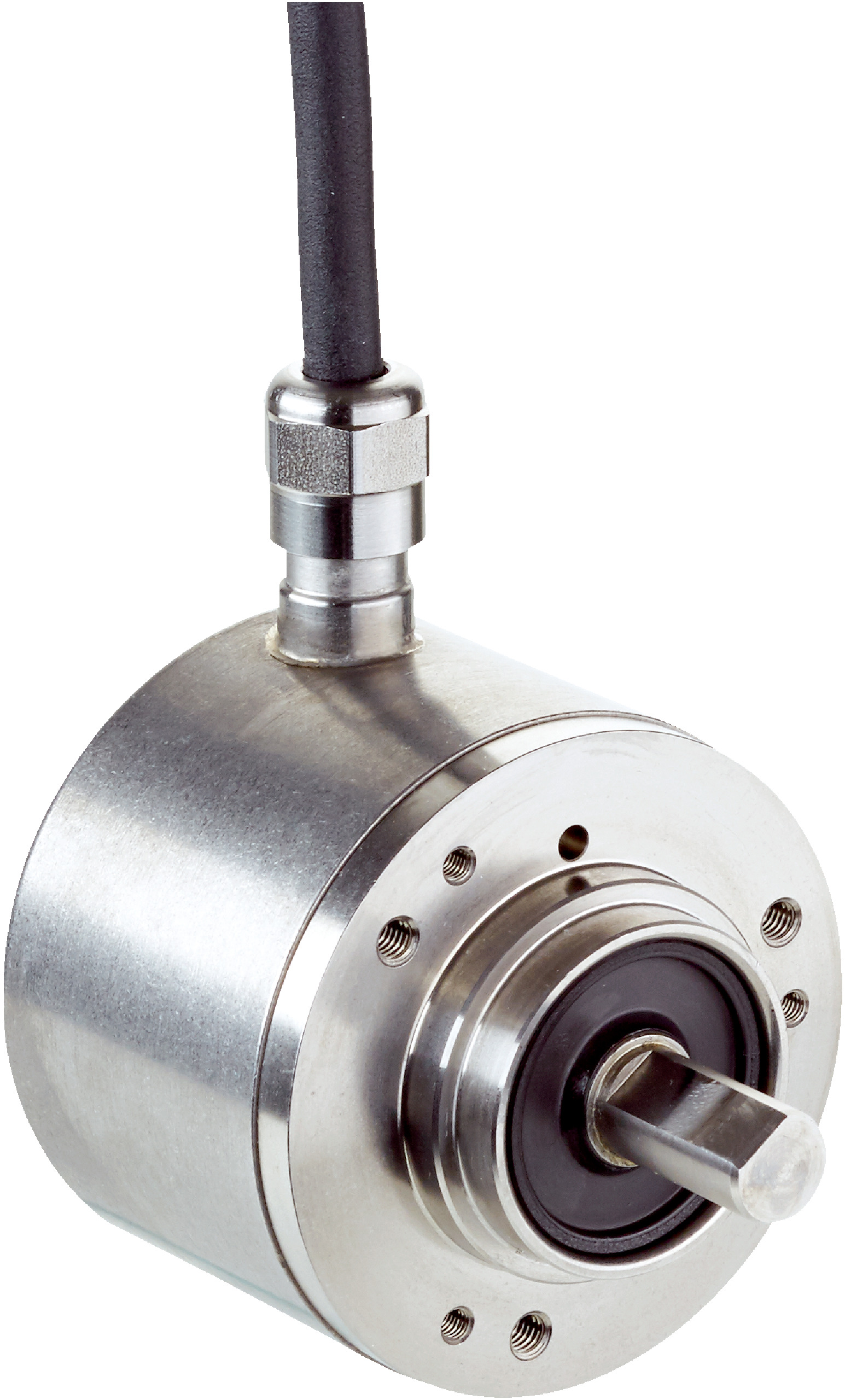

High-Resolution SSI Encoder AFS60I-S4PK262144 | 262,144 Steps | IP67 Rated | by SICK
The AFS60I-S4PK262144 high-resolution SSI encoder offers 262,144 steps per revolution, making it ideal for precision industrial automation and robotics. With a robust IP67 rated enclosure and low power consumption, this encoder ensures reliable performance in harsh environments, providing accurate position feedback for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft side and housing side)
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with flat, 10 mm diameter and 19 mm length
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W with reverse polarity protection
- Fast initialization time of 50 ms and position forming time under 1 µs
- Supports SSI communication interface with Gray code
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Resistance to shocks up to 100 g and vibration up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder setup and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60I-S4PK262144 SSI Encoder is available for immediate purchase, ideal for precision industrial automation and safety-related applications.
