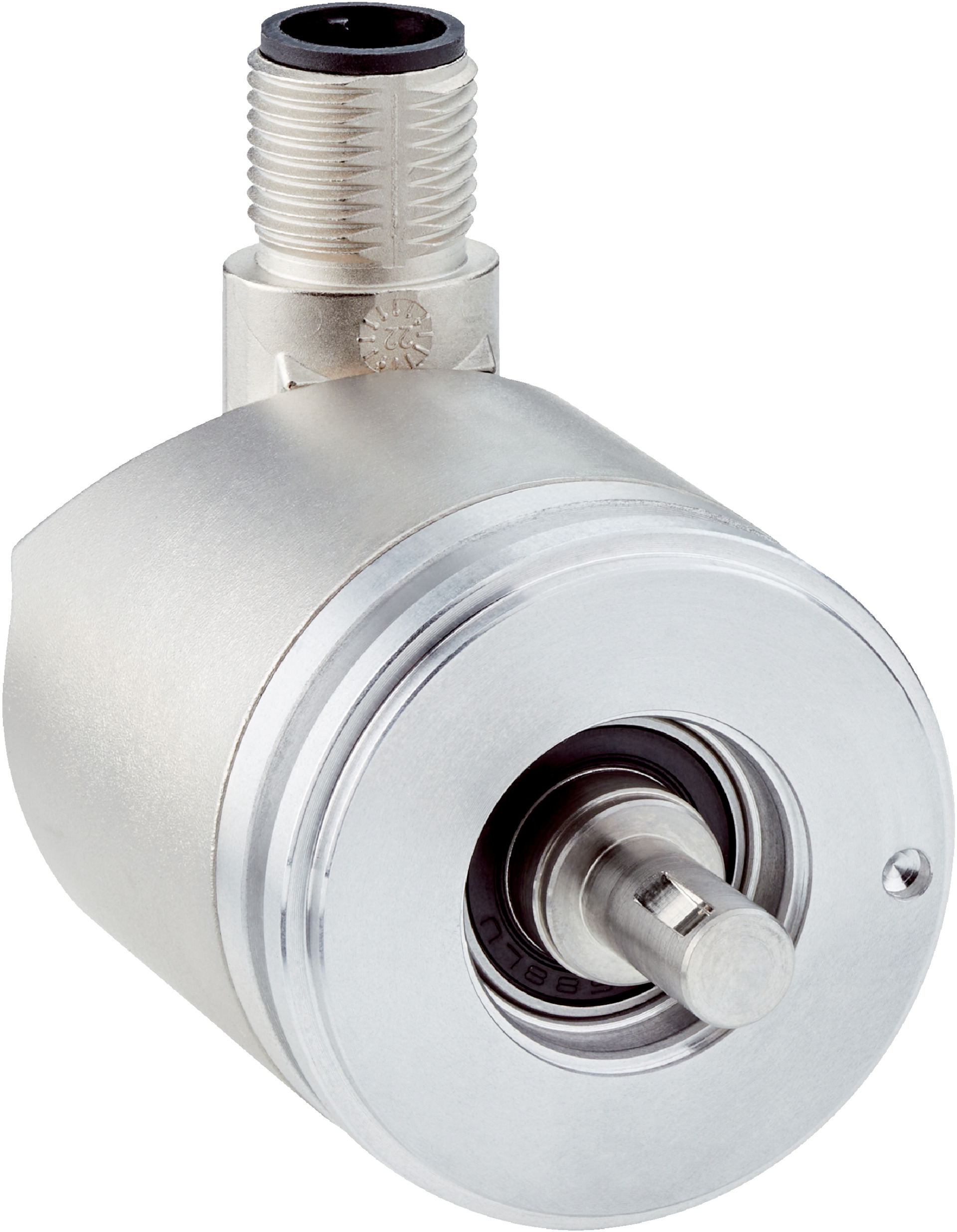

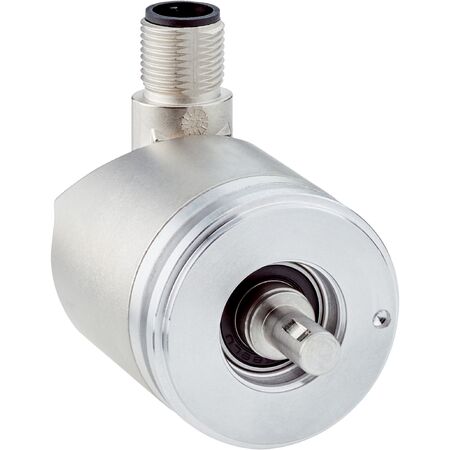

High-Resolution SSI Encoder AHM36A-SDPC014x12 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The AHM36A-SDPC014x12 high-resolution SSI encoder delivers exceptional precision with 16,384 steps per revolution and 4,096 revolutions. Designed for industrial automation and robotics, it features a robust stainless steel shaft and aluminum flange, ensuring durability in harsh environments. With an impressive operating temperature range of -40°C to +100°C and IP66/IP67 ratings, this encoder is perfect for safety-related motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 230 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Number of revolutions: 4,096 (12 bit)
- Max resolution: 14 bit x 12 bit (16,384 x 4,096)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Connection type: Male connector, M12, 8-pin
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 12 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc
- Start up torque: 1 Ncm at +20°C
- Operating torque: < 1 Ncm at +20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 and IP67 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust mechanical design with solid stainless steel shaft and aluminum flange
- Wide operating temperature range from -40°C to +100°C
- IP66 and IP67 rated enclosure for harsh environments
- Low power consumption of ≤ 1.5 W
- Reverse polarity protection included
- Fast position forming time of 125 µs
- Supports Gray and binary code types with configurable code sequence
- High shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36A-SDPC014x12 SSI Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
