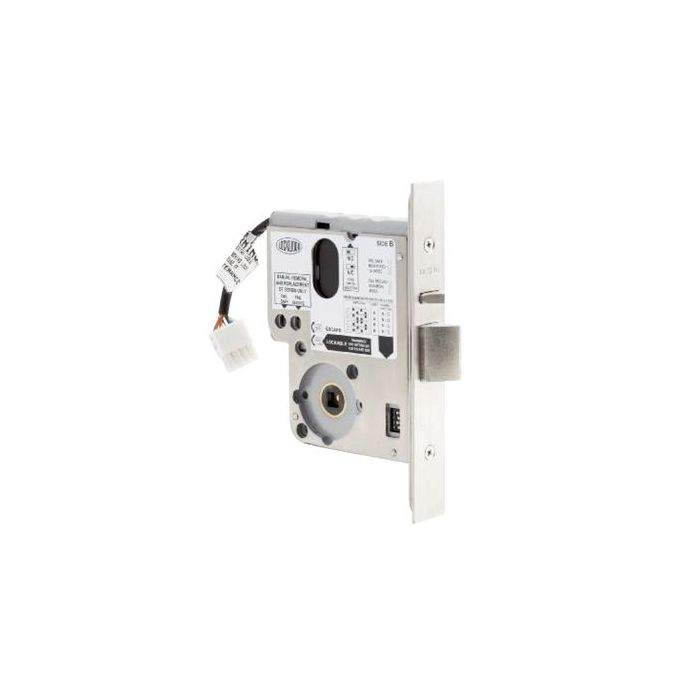

High Security Electric Mortice Lock | 12-24VDC | Dual Key Override & Stainless Steel Construction | by Dicker Data
The High Security Electric Mortice Lock is designed for robust security in government and commercial applications, operating on 12-24VDC with dual key override monitoring. Built with stainless steel components and a fail secure/fail safe configuration, it ensures reliable access control while meeting stringent fire safety standards. Ideal for high-security environments, this lock offers peace of mind and compliance with Australian Lock Standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Security Electric Mortice Lock | 12-24VDC | Dual Key Override & Stainless Steel Construction | by Dicker Data
Brand: Dicker Data
SKU: 3579HSELMOSC
Alternatively Known As: Electric Mortice Lock, High Security Mortice Lock, SCEC Endorsed Mortice Lock, Lockwood 3579HS, Secure Area Mortice Lock
Technical Specifications
- Operating Voltage: 12VDC - 24VDC
- Current: 500mA max, 80mA holding at 12VDC; 275mA max, 50mA holding at 24VDC
- LED Current: Additional 15mA max when LEDs are fitted
- Monitoring: Dual key override, deadlatched, locked, door closed, request to exit
- Microswitches: 500mA max @ 30VDC each circuit
- Reedswitch: 100mA max @ 30VDC
- Operational Temperature Range: -20°C to +60°C
- Case/Cover: High purity Zinc alloy with stainless steel plates
- Backset: 60mm standard (also available 89mm & 127mm)
- Latch Bolts: Reversible stainless steel
- Door Clearance: 3 - 6.5mm
- Door Thickness: 32 to 50mm standard
- Cylinder: Standard Lockwood oval shaped cylinders
- Cabling: 1.6m cable with 12 pin socket, recommended 18AWG cable runs up to 30m
- Furniture Compatibility: Lockwood series door furniture
- Standard Finish: Satin Chrome (SC)
- Standards and Compliance: SL8 and D8 Australian Lock Standard (AS4145.2.2008), Fire rated up to 4 hours per AS1905.1-2005, C-Tick Certified, SCEC Endorsed for SL3 Medium Threat Level Areas
- Dimensions (H x L x W): 150mm x 200mm x 60mm
- Weight: 3 kg
Key Features
- Designed for fail secure functionality externally and fail safe internally
- Constructed with stainless steel latch and faceplate
- Stainless steel plates encapsulate the body against vandalism
- Available in monitored versions only
- Dual key override monitoring
- Door position/Reed switch monitoring
- Request to exit (REX) monitoring
- LED indication
- Field changeable settings including fail safe/fail secure configuration
- Multi-voltage operation (12-24 VDC)
- Handing configurable for left and right hand doors
- Selectable free lever or locked lever on both sides
- Key override monitoring on both sides
- Monitoring contacts normally closed
Professional Installation Requirements
- Professional installation by a qualified locksmith or security systems installer is required to ensure correct configuration and compliance with security and fire safety standards.
Applications
- High security government buildings
- Institutional facilities
- Commercial projects requiring secure area access control
- Fire door assemblies requiring up to 4 hours fire resistance
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
- AS/NZS 2208 – Safety Glass in Buildings
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Supports fire safety compliance reducing environmental hazards
Warranty Information
5 years warranty.
Available Now
The Lockwood High Security SCEC Electric Mortice Lock 60mm B/Set Mon KOM 12-24VDC 5YR is available for immediate purchase, ideal for high security government, institutional, and commercial applications.
