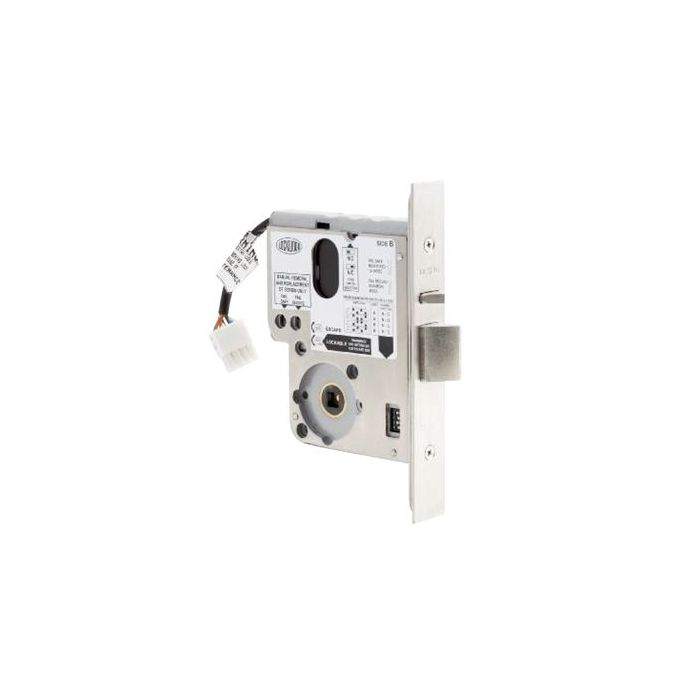

High Security Electric Mortice Lock | 12-24VDC | Fail Safe & Dual Key Override | Satin Chrome | by Dicker Data
High Security Electric Mortice Lock operates on 12-24VDC, featuring fail safe and dual key override for enhanced security. Ideal for commercial and institutional buildings, this lock is built from high purity zinc alloy and stainless steel, ensuring durability and reliability. With multiple monitoring options, it provides peace of mind for access control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Security Electric Mortice Lock | 12-24VDC | Fail Safe & Dual Key Override | Satin Chrome | by Dicker Data
Brand: Dicker Data
SKU: 4579HSELM0SC
Alternatively Known As: Electric Mortice Lock, High Security Mortice Lock, Fail Safe Mortice Lock, Lockwood 4579 Electric Lock
Technical Specifications
- Operating Voltage: 12VDC - 24VDC
- Current: 500mA max, 80mA holding at 12VDC; 275mA max, 50mA holding at 24VDC
- LED Current: Additional 15mA max when LEDs fitted
- Monitoring: Dual key override, deadlatched, locked, door closed, request to exit
- Microswitch Rating: 500mA max @ 30VDC per circuit
- Reed Switch Rating: 100mA max @ 30VDC
- Operating Temperature: -20°C to +60°C
- Backset: 89mm
- Latch Bolts: Reversible stainless steel
- Door Clearance: 3 - 6.5mm
- Door Thickness: 32 to 50mm standard
- Cylinder: Standard Lockwood oval shaped cylinders
- Cabling: 1.6m cable with 12 pin socket, recommended 18AWG cable for runs up to 30m
- Finish: Satin Chrome
- Dimensions (H x L x W): 150mm x 40mm x 89mm
- Weight: 2.5 kg
Key Features
- Fail secure externally and fail safe internally when used with electric strike
- Constructed from high purity zinc alloy with stainless steel plates
- Reversible stainless steel latch bolts
- Dual key override and multiple monitoring options including deadlatch, locked status, door closed, and request to exit
- Compatible with Lockwood series door furniture
- Standard satin chrome finish
Professional Installation Requirements
- Installation by a qualified locksmith or security professional is recommended to ensure correct integration with electric strikes and compliance with security standards.
Applications
- High security access control for commercial and institutional buildings
- Fail safe locking systems requiring external fail secure and internal fail safe operation
- Use with electric strikes for enhanced security and monitoring
Standards & Compliance
- Complies with AS4145.2.2008 (Australian Lock Standard SL8 and D8 Durability)
- Fire rated up to 4 hours per AS1905.1.2005
- C-Tick Certified
- SCEC Endorsed for SL3 Medium Threat Level Areas
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Energy efficient operation with low current draw
- Supports long cable runs reducing installation waste
Warranty Information
5 year manufacturer warranty.
Available Now
The LOCKWOOD 4579 High Security Electric Mortice Lock is available for immediate purchase, ideal for high security commercial and institutional access control applications.
