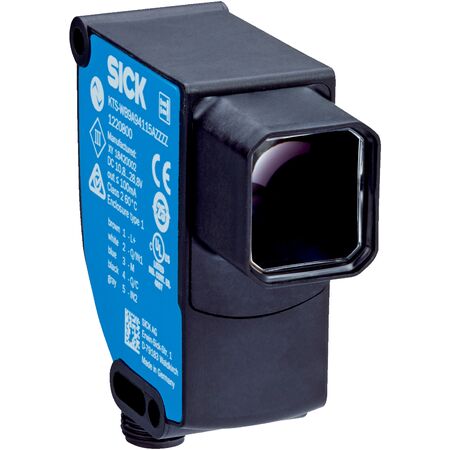

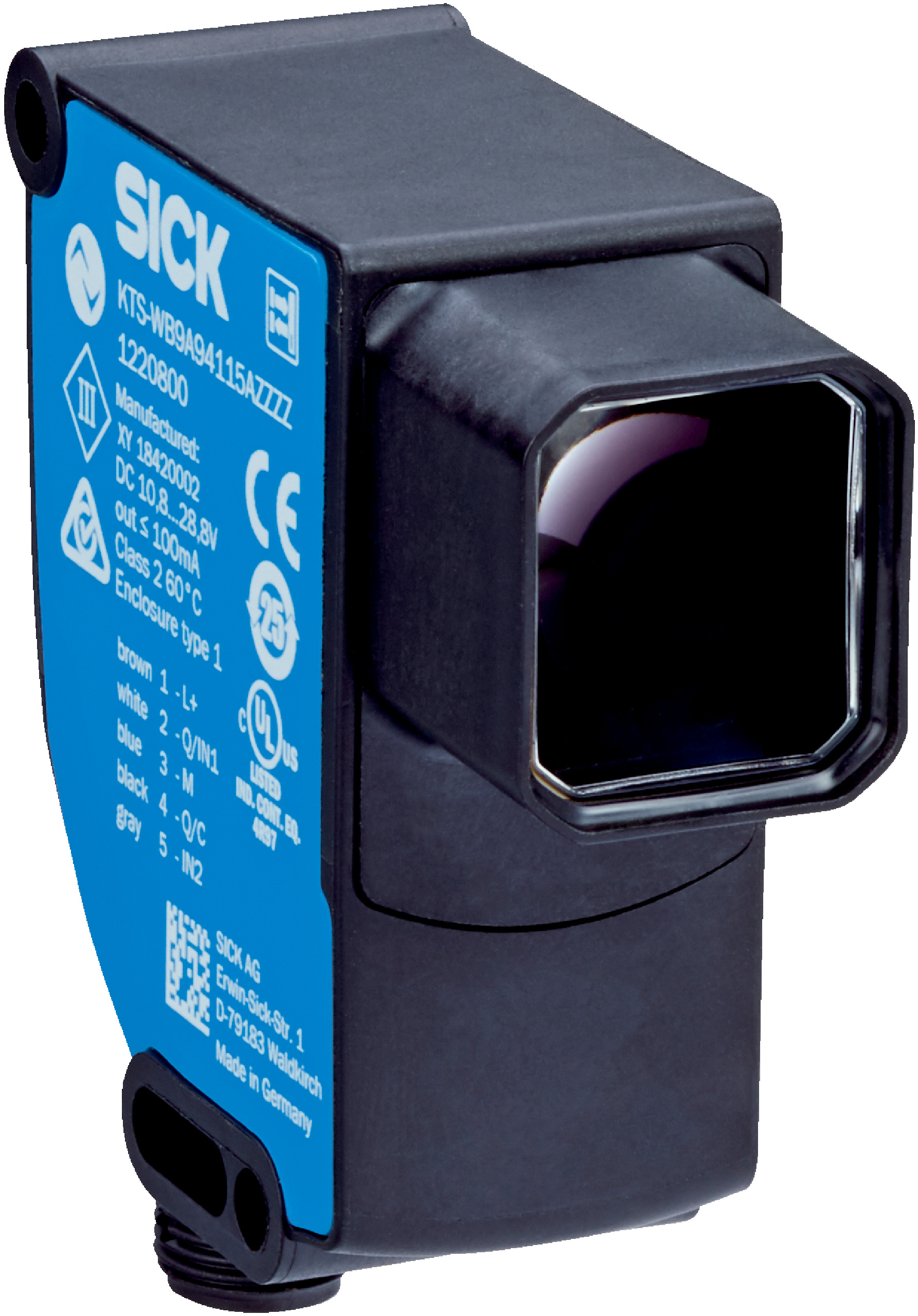

High Sensitivity Proximity Sensor | RGB LED Light Source | IP67 Rated | by SICK
The High Sensitivity Proximity Sensor is designed for industrial automation, featuring a sensing distance of up to 40 mm and an RGB LED light source with wavelengths of 470 nm, 525 nm, and 625 nm. With a robust IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for high precision sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission: Long side of housing with 3.9 mm x 0.9 mm spot size
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Supply voltage: 10.8 V DC to 28.8 V DC with ≤ 5 V pp ripple
- Switching frequency: 25 kHz, response time: 20 µs
- Protection class: III, circuit protection against reverse polarity and short circuits
- Connection: M12 5-pin plug
- Operating temperature: -20 °C to +60 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- High sensitivity with long sensing distance up to 40 mm
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull PNP/NPN switching output with light/dark switching function
- Robust housing made of VISTAL® with glass optics
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -20 °C to +60 °C
- Short response time of 20 µs and switching frequency of 25 kHz
- Reverse polarity and short-circuit protected outputs
- Connection via M12 5-pin plug
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- High precision sensing in manufacturing processes
- Use in environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTS-WB9134115AZZZZZZSZZZZZZZZ1 sensor is available for immediate purchase, ideal for industrial automation and high precision sensing applications.
