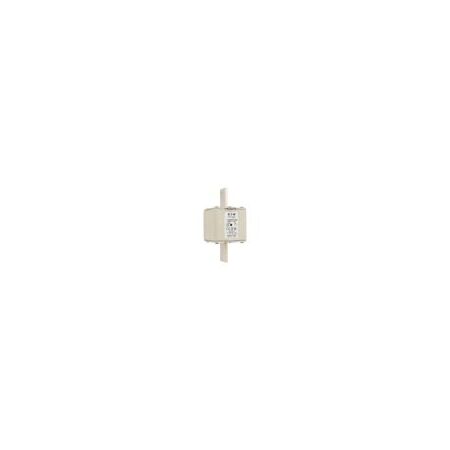

High Speed Fuse 1000A 690V | Class aR | Dual Indicator & Live Gripping Lugs | DIN 3 by Eaton
High speed fuse rated at 1000A and 690V, designed for industrial electrical protection. Ideal for high-speed circuit interruption and semiconductor device safety, it features a dual indicator for status and live gripping lugs for safe handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 1000A 690V | Class aR | Dual Indicator & Live Gripping Lugs | DIN 3 by Eaton
Brand: Eaton
SKU: 170M6814D
Alternatively Known As: High Speed Fuse 1000A, aR Fuse 690V, DIN 3 High Speed Fuse, Eaton Bussmann High Speed Fuse
Technical Specifications
- Amperage Rating: 1000 A
- Voltage Rating: 690 V AC (IEC), 700 V (UL)
- Class: aR
- Fuse Size: 3
- Breaking Capacity: 200 kA
- Clearing (I2T): 985000 at 660 V
- Pre arc (I2T): 140000
- Watt Losses: 56 W
- Fitted with Dual Indicator
- Live gripping lugs for safe installation
- Dimensions (H x L x W): 87mm x 150mm x 71mm
- Weight: 1.112 kg
Key Features
- High speed fuse-link with 1000 A amperage rating
- Rated for AC voltage up to 690 V (IEC) and 700 V (UL)
- Class aR fuse for semiconductor protection
- Dual indicator for fuse status
- Live gripping lugs for safe handling
- Breaking capacity of 200 kA
- Complies with IEC standards and UL recognized
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Industrial electrical protection
- High-speed circuit interruption in electrical panels
- Protection of semiconductor devices and sensitive equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, reducing hazardous substances
- CE marked ensuring compliance with environmental and safety regulations
Warranty Information
Standard Eaton warranty applies; refer to Eaton for specific warranty terms.
Available Now
The Eaton FUSE 1000A 690V aR DIN 3 HSDNH is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
