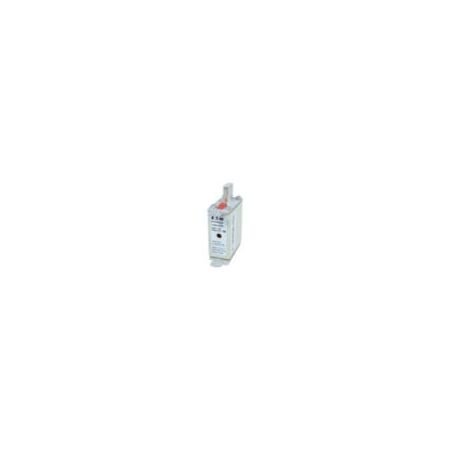

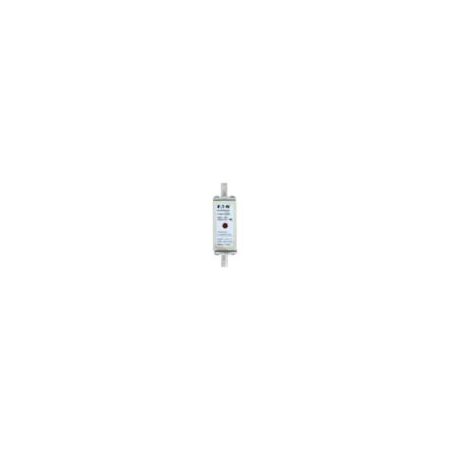

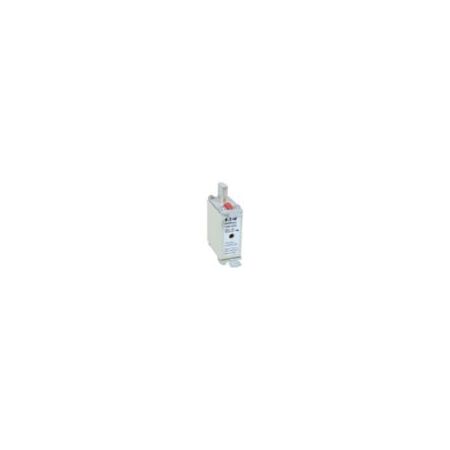

High Speed Fuse 160A 690V aR | 200 kA Breaking Capacity | Dual Indicator | DIN 000 by Eaton
High speed fuse rated at 160A and 690V, designed for industrial electrical protection. With a breaking capacity of 200 kA and a dual indicator for easy monitoring, it's perfect for high-speed circuit interruption and safeguarding sensitive electronic equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 160A 690V aR | 200 kA Breaking Capacity | Dual Indicator | DIN 000 by Eaton
Brand: Eaton
SKU: 170M1569D
Alternatively Known As: High speed fuse 160A, 690V aR fuse, DIN 000 fuse, Bussmann square body fuse, HSDNH fuse
Technical Specifications
- Amperage Rating: 160 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Voltage Type: AC
- Breaking Capacity: 200 kA
- Class: Class aR
- Fuse Size: 000
- Clearing (I2T): 16500 at 660 V
- Pre arc (I2T): 2300
- Watt Losses: 25 W
- Fitted with: Dual indicator
- Certifications: UL Recognized IEC Rated
- Compliances: CE Marked RoHS Compliant
- Dimensions (H x L x W): 51mm x 79mm x 21mm
- Weight: 0.136 kg
Key Features
- High speed square body fuse design
- Combination fuse status indicator for easy monitoring
- Rated for 160A and 690V (IEC) AC voltage
- Breaking capacity of 200 kA
- Class aR fuse for semiconductor protection
- Dual indicator fitted for fuse status
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Industrial electrical protection
- High-speed circuit interruption in electrical panels
- Protection of sensitive electronic equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant reducing hazardous substances
- CE marked ensuring compliance with environmental and safety standards
Warranty Information
Warranty as per Eaton standard terms and conditions, typically 1 year against manufacturing defects.
Available Now
The Eaton Bussmann Series High Speed Square Body Fuse 160A 690V aR DIN 000 HSDNH is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
