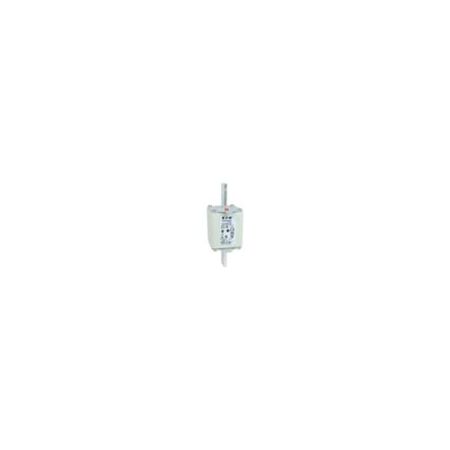

High Speed Fuse 500A 690V | 200 kA Breaking Capacity | Class aR | Dual Indicator by Eaton
High speed fuse rated for 500A and 690V, featuring a 200 kA breaking capacity and dual indicator for easy monitoring. Ideal for industrial electrical protection and semiconductor device safeguarding, this fuse ensures reliable circuit interruption and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 500A 690V | 200 kA Breaking Capacity | Class aR | Dual Indicator by Eaton
Brand: Eaton
SKU: 170M5810D
Alternatively Known As: High speed fuse 500A, aR fuse 690V, DIN fuse 2, Bussmann 170M5810D fuse
Technical Specifications
- Amperage Rating: 500 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Voltage Type: AC
- Clearing (I2T): 155000 at 660 V
- Pre arc (I2T): 21500
- Watt Losses: 34 W
- Breaking Capacity: 200 kA
- Class: Class aR
- Fuse Size: 2
- Fitted with: Dual indicator
- Certifications: UL Recognized, IEC Rated
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 72mm x 150mm x 54mm
- Weight: 0.675 kg
Key Features
- High speed square body fuse design
- Combination fuse status indicator for easy monitoring
- Rated for 500A and 690V (IEC) / 700V (UL)
- Breaking capacity of 200 kAIC
- Class aR fuse for semiconductor protection
- Dual indicator fitted for fuse status
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse integration.
Applications
- Industrial electrical protection
- High-speed circuit interruption in electrical panels
- Protection of semiconductor devices and sensitive equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, reducing hazardous substances
- CE marked ensuring compliance with environmental and safety standards
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Bussmann 500A 690V aR High Speed Square Body Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
