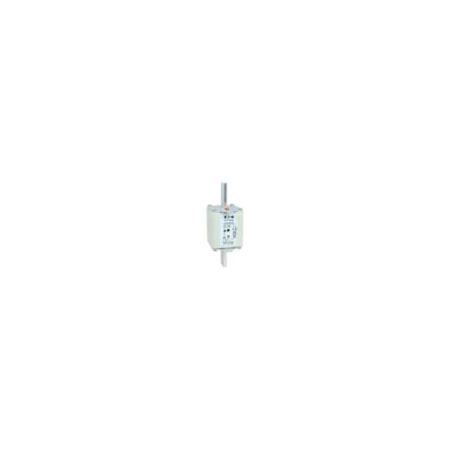

High Speed Fuse 700A 690V aR DIN 2 | 200 kA Breaking Capacity | Dual Indicator | Class aR by Eaton
High speed fuse rated at 700A and 690V, designed for industrial electrical protection. Ideal for high-speed circuit interruption, it features a 200 kA breaking capacity and a dual indicator for fuse status, ensuring reliable operation in power distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Speed Fuse 700A 690V aR DIN 2 | 200 kA Breaking Capacity | Dual Indicator | Class aR by Eaton
Brand: Eaton
SKU: 170M5813D
Alternatively Known As: High Speed Fuse 700A, aR Fuse 700A, DIN 2 High Speed Fuse, Bussmann Square Body Fuse
Technical Specifications
- Amperage Rating: 700 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Voltage Type: AC
- Clearing (I2T): 430000 at 660 V
- Pre arc (I2T): 60500
- Watt Losses: 43 W
- Breaking Capacity: 200 kA
- Class: Class aR
- Fuse Size: 2
- Fitted with: Dual indicator
- Dimensions (H x L x W): 72mm x 150mm x 54mm
- Weight: 0.676 kg
Key Features
- High speed square body fuse
- Combination fuse status indicator
- Class aR fuse for semiconductor protection
- Blade end DIN 43-620 on both ends
- Breaking capacity of 200 kA
- Dual indicator fitted for fuse status
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse operation.
Applications
- Industrial electrical protection
- High-speed circuit interruption in electrical systems
- Protection of power distribution equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard Eaton warranty applies; refer to Eaton product warranty documentation for details.
Available Now
The Eaton Bussmann Series High Speed Square Body Fuse 700A 690V aR DIN 2 HSDNH is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
