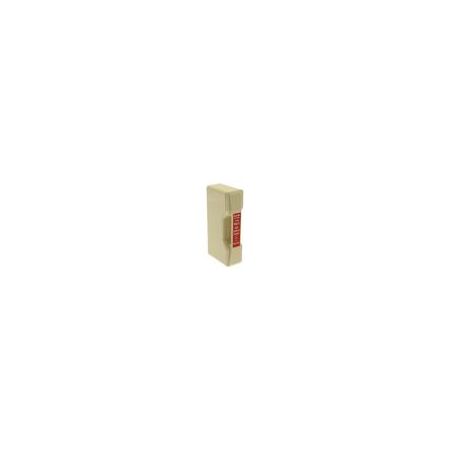

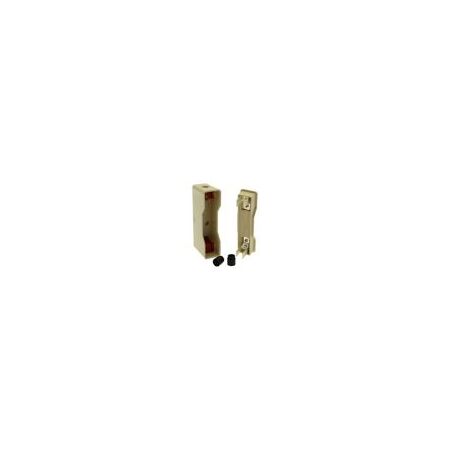

High-Speed Fuse Holder 63A | AC 1200V & DC 750V | Front Wire Connection | Bolt-in TSC TAC by Eaton
High-speed fuse holder rated for 63A, suitable for AC 1200V and DC 750V applications—ideal for electrical distribution systems. Built for industrial and commercial use, with front wire connection and bolt-in fuse-links for fast-acting protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Speed Fuse Holder 63A | AC 1200V & DC 750V | Front Wire Connection | Bolt-in TSC TAC by Eaton
Brand: Eaton
SKU: RSL63H
Alternatively Known As: High-speed fuse holder, 63A fuse holder, front wire fuse holder, bolt-in fuse holder
Technical Specifications
- Amperage Rating: 63 A
- Voltage Rating: AC 1200 V, DC 750 V
- Number of Poles: Single-pole
- Connection Type: Front wire connected
- Fuse Link Type: Bolt-in TSC TAC
- Compliance: CE RoHS Compliant
- Certification: BS 2692-1
- Dimensions (H x L x W): 79mm x 162mm x 41mm
- Weight: 0.5 kg
Key Features
- High-speed fuse holder for fast-acting protection
- Rated for 63 A amperage
- Suitable for AC 1200 V and DC 750 V applications
- Single-pole design
- Front wire connected with bolt-in fuse-links TSC TAC
- Complies with BS 2692-1 standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical distribution systems
- Industrial and commercial fuse protection
- Low voltage electrical installations requiring high-speed fuse protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's warranty policy for details.
Available Now
The Eaton 1000V GE Fuseholder Front Wire is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
