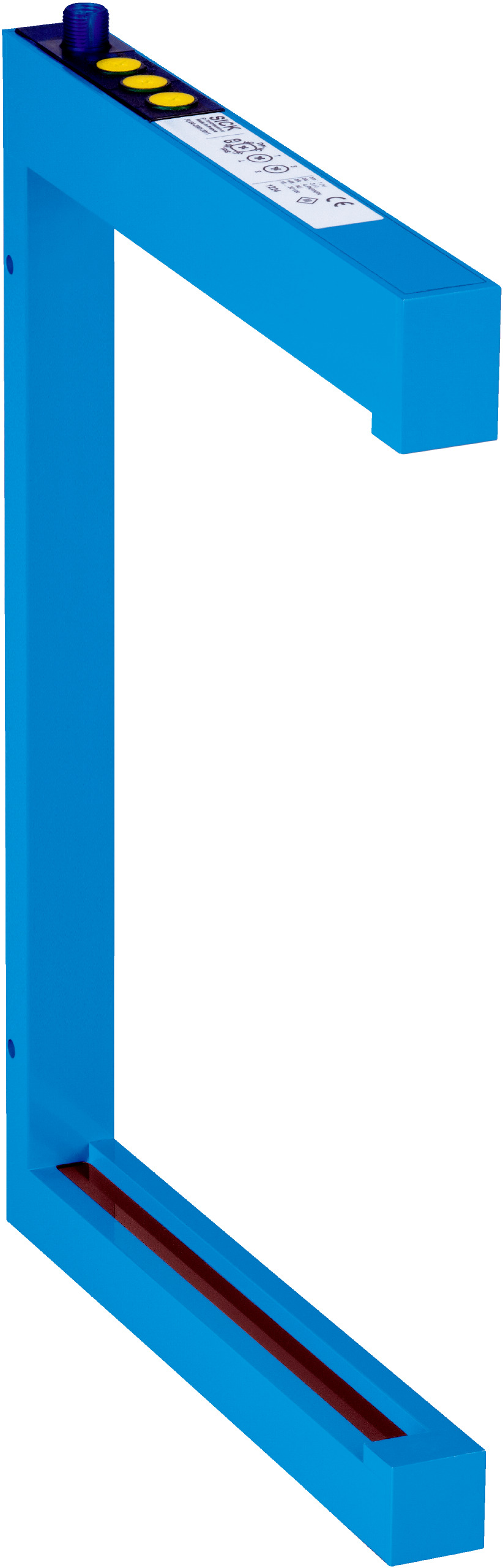

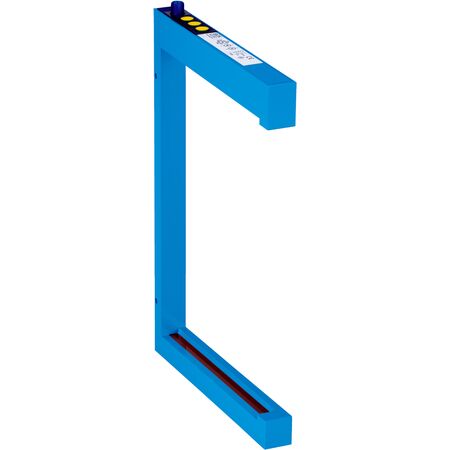

High-Speed Object Sensor SICK FLG4-20025021 | 2 mm Minimum Detectable Object | IP65 Enclosure | by SICK
The SICK FLG4-20025021 high-speed object sensor features a sender/receiver principle with a minimum detectable object size of just 2 mm, making it ideal for precise industrial automation and quality control applications. With an impressive switching frequency of 5,000 Hz and robust IP65-rated aluminum housing, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object (MDO): 2 mm (dynamic 4 mm, static 6 mm)
- Beam separation: 4 mm
- Detection height: 250 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wavelength: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area: 250 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: Sunlight 10,000 lx
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 312mm
- Weight: 0.86 kg
Key Features
- Open device version with sender/receiver sensor principle
- Minimum detectable object size as small as 2 mm (dynamic 4 mm, static 6 mm)
- Adjustable light/dark switching output via rotary switch
- High switching frequency of 5,000 Hz for fast response
- Robust aluminum painted housing with IP65 enclosure rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with efficient DC supply voltage
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK FLG4-20025021 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
