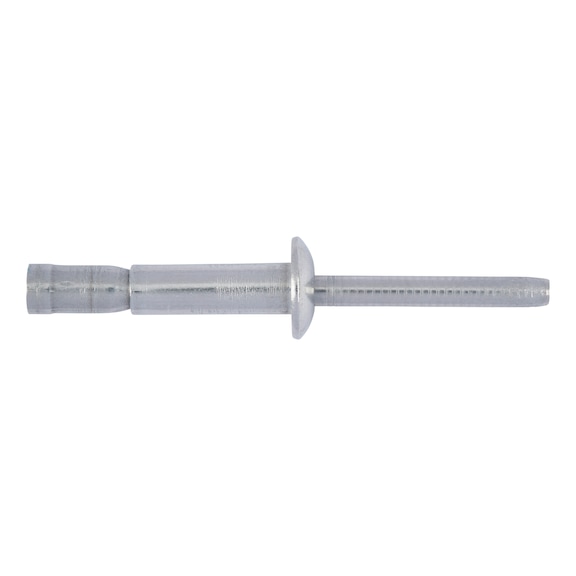

High-strength MBT Blind Stud Flat Head | Aluminium Construction | Vibration-Proof & High Load Capacity | @Pack of 25 | by Wurth
High-strength MBT blind stud flat head is designed for industrial and construction fastening applications, featuring an aluminium construction for durability and recyclability. With a vibration-proof design and high tensile strength, these blind studs ensure secure fastening for high-load mechanical connections, making them ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-strength MBT Blind Stud Flat Head | Aluminium Construction | Vibration-Proof & High Load Capacity | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 921265159
Alternatively Known As: Blind Rivet Stud, Aluminium Blind Rivet, MBT Rivet, Flat Head Blind Stud, High Strength Blind Fastener
Technical Specifications
- Material of sleeve: Aluminium
- Material of mandrel: Aluminium
- Surface of the mandrel: Plain
- Surface of the sleeve: Plain

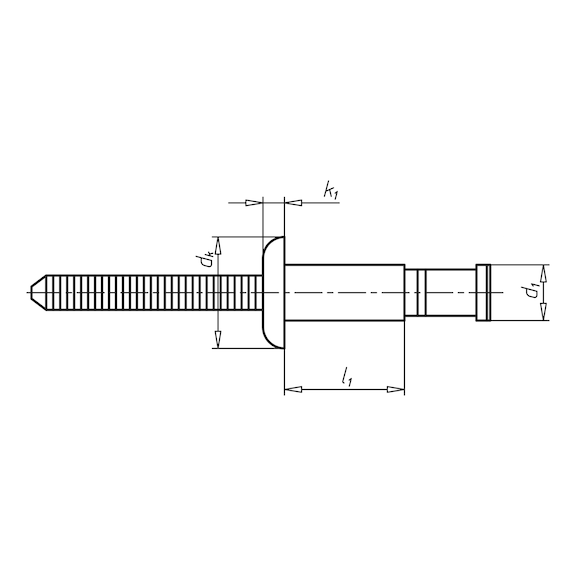

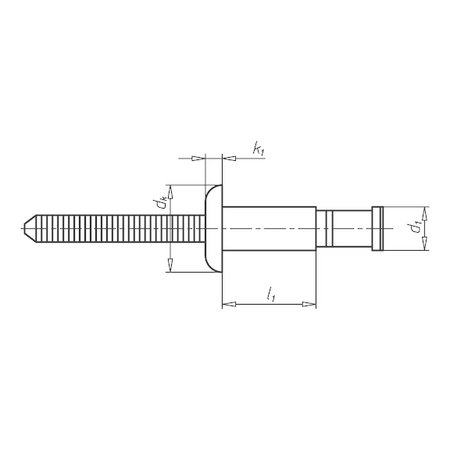

- Nominal diameter x length (d1 x l1): 6.4 x 18.8 mm
- Head diameter (dk): 13.4 mm
- Head height (k1): 2.7 mm
- Min./max. grip range: 2.03-15.87 mm
- Min./max. drill hole diameter: 6.6-7 mm
- Shear-fracture load: 6 kN
- Tensile fracture load: 4.22 kN
- Head type: Truss head
- Dimensions (H x L x W): 2.7mm x 18.8mm x 13.4mm
- Weight: 0.02 kg
Key Features
- Sleeve and mandrel made from aluminium
- High-strength riveting range with even preloading

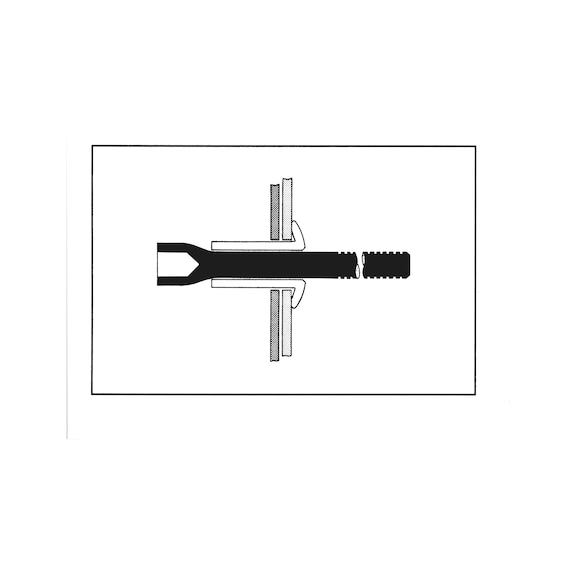

- Positive and friction locking for secure fastening
- Completely vibration-proof with excellent fatigue properties
- High tensile and shear strength values for highest loads
- Captive mandrel (mechanically locked) for safety
- Safe filling of drill hole: airtight and splash-proof
- Exceptionally large clamping length range
- Quick installation with consistently high quality using pneumatic device
Professional Installation Requirements
- Must be installed using lever riveting pliers (art. no. 0949810) or PNG 122 (art. no. 070393733) with matching nozzle (∅ 6.5 mm: art. no. 0946830) for proper fastening and safety.
Applications
- Industrial and construction fastening applications
- High-load mechanical connections
- Vibration-resistant assembly requirements
- Airtight and splash-proof fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Aluminium construction allows for recyclability and reduced environmental impact
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth High-strength MBT Blind Stud Flat Head 25 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
