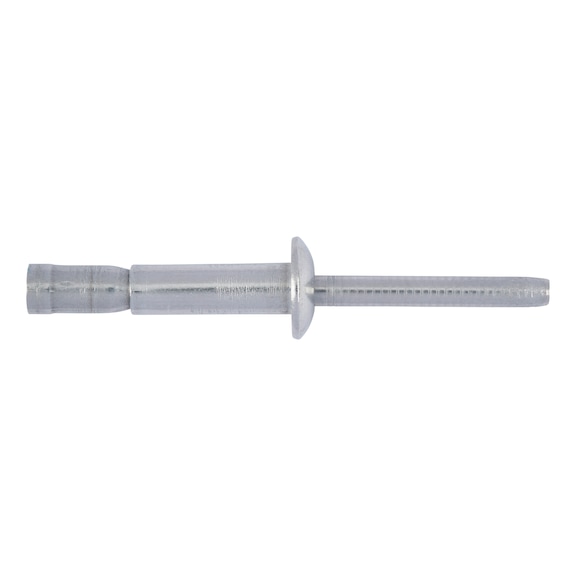

High-strength MBT Blind Stud Flat Head | Aluminium Construction | Vibration-Proof & Fatigue-Resistant | @Pack of 25 | by Wurth
High-strength MBT blind stud flat head is designed for industrial riveting applications, featuring an aluminium construction for durability and recyclability. With excellent fatigue properties and vibration-proof design, it's perfect for mechanical assemblies and high load-bearing connections in construction and manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-strength MBT Blind Stud Flat Head | Aluminium Construction | Vibration-Proof & Fatigue-Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 92126595
Alternatively Known As: Blind rivet stud, Aluminium blind stud, MBT rivet stud, Flat head blind rivet stud
Technical Specifications
- Material of sleeve: Aluminium
- Material of mandrel: Aluminium
- Surface of the mandrel: Plain
- Surface of the sleeve: Plain
- Nominal diameter x length (d1 x l1): 6.4 x 13.7 mm
- Head diameter (dk): 13.4 mm
- Head height (k1): 2.7 mm
- Min./max. grip range: 2.03-9.53 mm
- Min./max. drill hole diameter: 6.6-7 mm
- Shear-fracture load: 6 kN
- Tensile fracture load: 4.22 kN
- Head type: Truss head
- Dimensions (H x L x W): 3mm x 14mm x 13mm
- Weight: 0.05 kg
Key Features
- Sleeve and mandrel made from aluminium
- High-strength riveting range with even preloading
- Positive and friction locking, completely vibration-proof
- Excellent fatigue properties
- High tensile and shear strength values for highest loads
- Captive mandrel (mechanically locked)
- Safe filling of drill hole: airtight and splash-proof
- Exceptionally large clamping length range
- Quick installation with consistently high quality using pneumatic device
Professional Installation Requirements
- Must be installed using lever riveting pliers (art. no. 0949810) or PNG 122 (art. no. 070393733) with matching nozzle (∅ 6.5 mm: art. no. 0946830) for proper fastening and safety.
Applications
- Industrial riveting applications requiring high-strength fastening
- Mechanical assemblies needing vibration-proof and fatigue-resistant connections
- Use in airtight and splash-proof drill hole filling
- Suitable for high load-bearing connections in construction and manufacturing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Aluminium construction allows for recyclability and reduced environmental impact
- Durable and vibration-proof design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth High-strength MBT Blind Stud Flat Head 25 PCS is available now for immediate purchase. Ideal for industrial and construction applications requiring high-strength, vibration-proof fastening.
