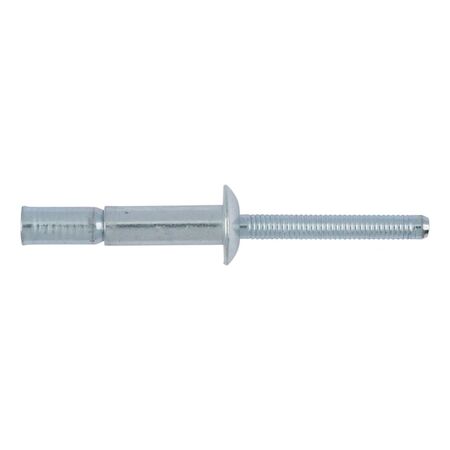

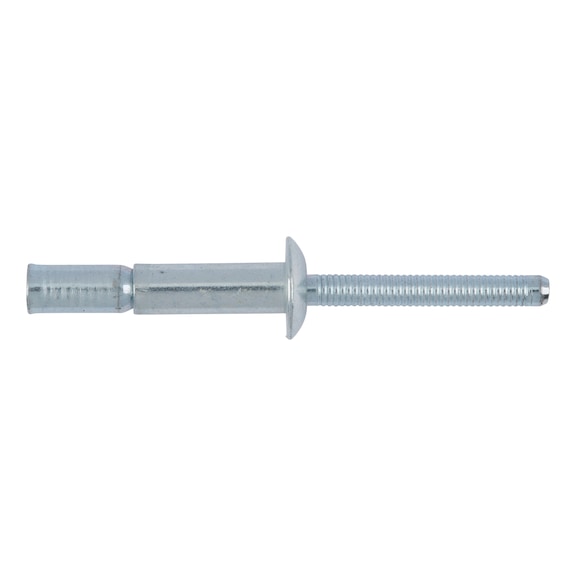

High-strength MBT Blind Stud Flat Head | Zinc Plated Steel | Vibration-Proof Connections | @Pack of 25 | by Wurth
High-strength MBT blind stud flat head is designed for industrial and construction riveting applications, featuring zinc plated steel for corrosion resistance and exceptional tensile strength. Ideal for high-load fastening requirements, it ensures vibration-proof mechanical connections, making it perfect for steel and metal assembly that requires airtight and splash-proof joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material of sleeve: Steel
- Material of mandrel: Steel
- Surface of mandrel: Zinc plated
- Surface of sleeve: Zinc plated
- Nominal diameter x length: 6.4 x 33 mm
- Head diameter: 13.4 mm
- Head height: 2.7 mm
- Min./max. grip range: 2.03-15.87 mm
- Min./max. drill hole diameter: 6.6-7 mm
- Shear-fracture load: 11.78 kN
- Tensile fracture load: 10.45 kN
- Head type: Truss head
- Dimensions (H x L x W): 3mm x 33mm x 13mm
- Weight: 0.05 kg
Key Features
- Sleeve and mandrel made from zinc plated, blue passivated (A2K) steel
- High-strength riveting range with even preloading
- Positive and friction locking for vibration-proof connections
- Excellent fatigue properties with high tensile and shear strength
- Captive mandrel mechanically locked for safety
- Safe filling of drill hole ensuring airtight and splash-proof joints
- Exceptionally large clamping length range
- Quick installation with pneumatic device
- Must be installed with lever riveting pliers or PNG 122 and matching nozzle
Professional Installation Requirements
- Installation requires use of lever riveting pliers (art. no. 0949810) or PNG 122 (art. no. 070393733) with matching nozzles (4.8 mm or 6.5 mm). Professional installation recommended for safety and quality.
Applications
- Industrial and construction riveting applications
- High-load fastening requirements
- Vibration-proof mechanical connections
- Use in steel and metal assembly requiring airtight and splash-proof joints
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth High-strength MBT Blind Stud Flat Head 25 PCS is available for immediate purchase. Ideal for industrial and construction riveting applications requiring high strength and vibration-proof fastening.
