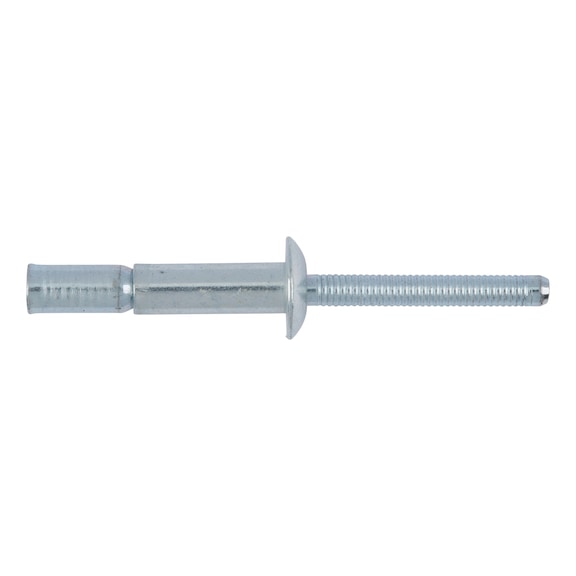

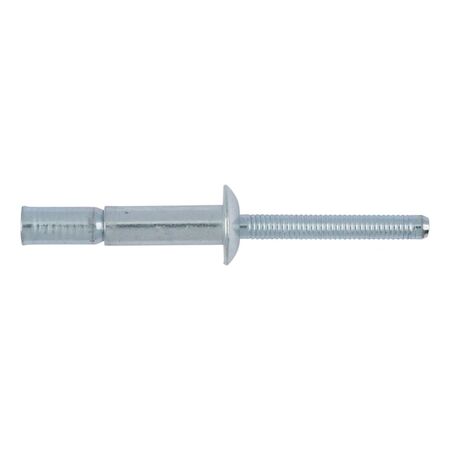

High-strength MBT Blind Stud Flat Head | Zinc Plated Steel | Vibration-Proof | @Pack of 25 | by Wurth
High-strength MBT blind stud flat head is designed for industrial and construction fastening applications, featuring zinc plated steel for corrosion resistance and exceptional tensile strength. Ideal for high-load mechanical connections, this pack of 25 ensures reliable, vibration-resistant assembly with airtight sealing, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-strength MBT Blind Stud Flat Head | Zinc Plated Steel | Vibration-Proof | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 92136595
Alternatively Known As: Blind Rivet, Blind Stud, MBT Rivet, High Strength Blind Rivet, Flat Head Blind Rivet
Technical Specifications
- Material of sleeve: Steel
- Material of mandrel: Steel
- Surface of the mandrel: Zinc plated
- Surface of the sleeve: Zinc plated
- Nominal diameter x length (d1 x l1): 6.4 x 13.7 mm
- Head diameter (dk): 13.4 mm
- Head height (k1): 2.7 mm
- Min./max. grip range: 2.03-9.53 mm
- Min./max. drill hole diameter: 6.6-7 mm
- Shear-fracture load: 11.78 kN
- Tensile fracture load: 10.45 kN
- Head type: Truss head
- Dimensions (H x L x W): 2.7mm x 13.7mm x 13.4mm
- Weight: 0.05 kg
Key Features
- Sleeve and mandrel made from zinc plated, blue passivated (A2K) steel
- High-strength riveting range with even preloading
- Positive and friction locking, completely vibration-proof
- Excellent fatigue properties
- High tensile and shear strength values for highest loads
- Captive mandrel (mechanically locked)
- Safe filling of drill hole: airtight and splash-proof
- Exceptionally large clamping length range
- Quick installation with consistently high quality using pneumatic device
Professional Installation Requirements
- Must be installed using lever riveting pliers (art. no. 0949810) or PNG 122 (art. no. 070393733) with matching nozzle (∅ 4.8 mm: art. no. 0946820 or ∅ 6.5 mm: art. no. 0946830). Professional installation recommended for optimal performance.
Applications
- Industrial and construction fastening applications
- High-load mechanical connections
- Vibration-resistant assembly requirements
- Airtight and splash-proof fastening needs
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth High-strength MBT Blind Stud Flat Head 25 PCS is available for immediate purchase. Ideal for high-load fastening applications requiring vibration resistance and airtight sealing.
