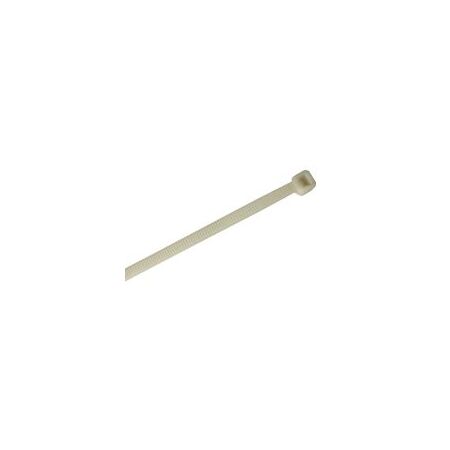

High Temp Cable Tie PA46 200x4.8mm Natural Pack of 100 Cabac
Cabac high temperature PA46 cable tie 200x4.8mm in natural, pack of 100. Rated -40 to +150 deg C, oil resistant and halogen free. Ideal near motors and engines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: High-Temperature Cable Ties, PA46 Cable Ties, Heat-Resistant Cable Ties, Automotive Cable Ties
Technical Specifications
- Part Number: CT200NT/100HT
- Material: Polyamide 46 (PA46)
- Colour: Natural
- Length: 200 mm
- Width: 4.8 mm
- Thickness: 1.2 mm
- Operating Temperature: -40°C to +150°C
- Installation Temperature: -10°C to +130°C
- Minimum Loop Tensile Strength: 22.6 kg
- Maximum Bundle Diameter: 49.5 mm
- Flammability Rating: UL 94 V-2
- Chemical Resistance: Resistant to oils, greases, petroleum-derived hydrocarbons, alcohols, glycols, dilute acids, dilute alkalis and neutral or basic salt solutions
- Halogen Content: Halogen free to EN 14582:2016
- Compliance: ANSI/UL 62275, RoHS and REACH
- Dimensions (H x L x W): 1.2mm x 200mm x 4.8mm
- Weight: 0.15 kg
Key Features
- High thermal stability and strength retention at elevated temperatures
- Suitable for cable bundling near engines, motors, pumps, compressors and other heat-generating equipment
- Resistant to oils, greases and petroleum-based fluids
- Improved wear, creep and fatigue performance compared with standard nylon cable ties
- Natural PA46 construction for high-temperature automotive, electrical and industrial applications
- Pack contains 100 cable ties
Applications
- Automotive wiring and engine compartments
- Electrical installations exposed to elevated temperatures
- Industrial machinery and control equipment
- Cable bundling near motors, pumps and compressors
- Applications exposed to oils, greases and petroleum-based fluids
Environmental Benefits
- Halogen-free construction reduces the use of halogenated materials in the product
- RoHS and REACH compliance supports restricted-substance management
- Durable PA46 construction and resistance to heat, chemicals, creep and fatigue can extend service life and reduce replacement waste
- Plastic components may be recyclable subject to local recycling facilities and material-separation requirements
Warranty Information
Cabac’s published terms provide repair or replacement for goods found defective within one year from the date of supply, subject to correct installation, use and applicable Australian Consumer Law rights. ([cabac.com.au](https://www.cabac.com.au/terms-and-conditions))
Available Now
Available through CABAC and authorised Australian electrical distributors. ([cabac.com.au](https://www.cabac.com.au/amfile/file/download/file/158671/product/180160/))
