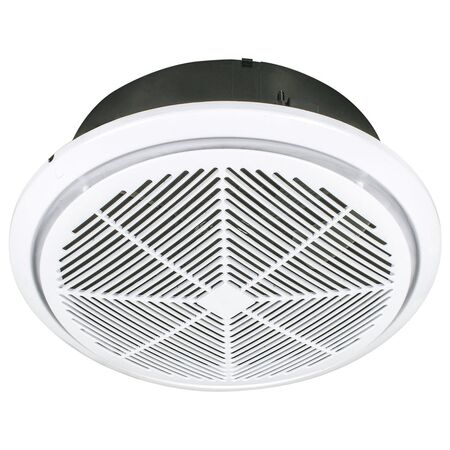

Brilliant White Whisper High-Velocity ø285mm Exhaust Fan

High-Velocity Exhaust Fan ø285mm | 750m³/hr | IPx4 Rated | White by Brilliant Lighting

BRAND: Brilliant Lighting

SKU: 18204/05

$77.00 List price: $100.20

+ −

30 Days Return Delivery Options

High-velocity exhaust fan with 750m³/hr airflow and IPx4 rating—ideal for bathrooms and kitchens. Built for quiet operation, with a compact design and easy installation.

Description
Attachments

Product Name/Title: Brilliant White Whisper High-Velocity ø285mm Exhaust Fan

Brand: Brilliant Lighting

SKU: 18204/05

Alternatively Known As: High-Velocity Exhaust Fan, Bathroom Exhaust Fan, Kitchen Exhaust Fan

Technical Specifications

Max airflow: 750m³/hr
Operating voltage: 240V / 50Hz
Ingress protection: IPx4
Class: Class I (1)
Motor wattage: 35W
Control: 3-pin SAA approved, 0.9m length
Dimensions (H x L x W): 285mm x 100mm x 285mm
Weight: 2.5 kg

Key Features

High performance quiet, long life, ball bearing motor.
High volume extraction to remove excess steam and odours.
Attractive, compact low profile design.
Removable grille cover for easy cleaning.
Easy installation clamps to secure the fan into place.
Draft stopper to prevent unwanted airflow.

Professional Installation Requirements

Must be installed by a licensed electrician.

Applications

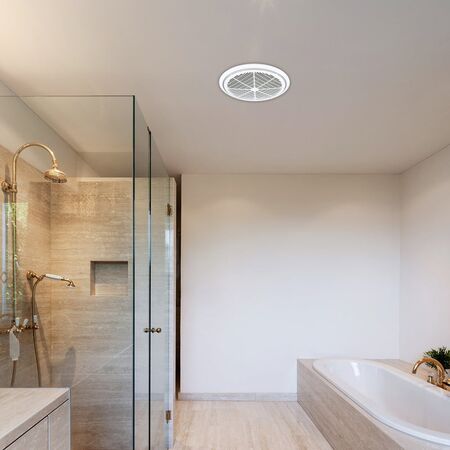

Residential: Bathrooms, kitchens, laundry rooms
Commercial: Restaurants, cafes, and other areas requiring ventilation

Standards & Compliance

Complies with AS/NZS 60335 for safety and performance standards.

Environmental Benefits

Efficient airflow design reduces energy consumption while maintaining high performance.

Warranty Information

3 years warranty against manufacturing defects.

Available Now

The Brilliant White Whisper High-Velocity Exhaust Fan is available now for immediate purchase. Ideal for residential and commercial spaces requiring effective ventilation.

Datasheet (18204_Datasheet.pdf, 1,467 Kb) [Download]

Instruction Manual (18204_IM.pdf, 495 Kb) [Download]

Exhaust Fan Airflow Calculator

Room Length (m):
Room Width (m):
Ceiling Height (m):
Fan Airflow Capacity:
Desired Air Changes per Hour (ACH):

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
