Home/Electrical/Parts/Timers/Run On Timers/High Voltage 6P Plug 300A | IP55 Ingress Protection | Quick Release & Flameproof Design by Ausproof

Trade Discount 19%

PL 1100V 300A 6P Plug Blue Body Kit wSLOT

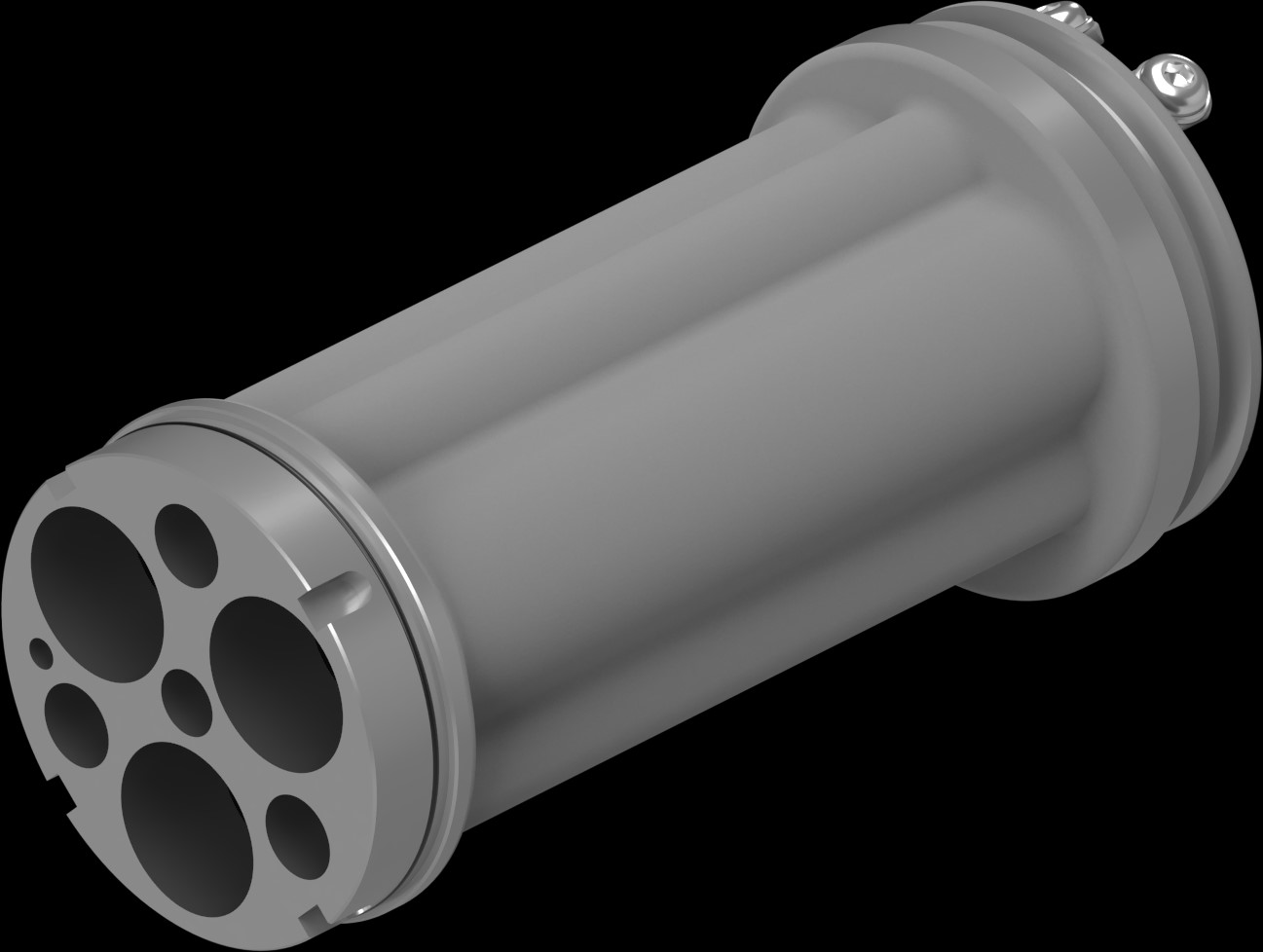

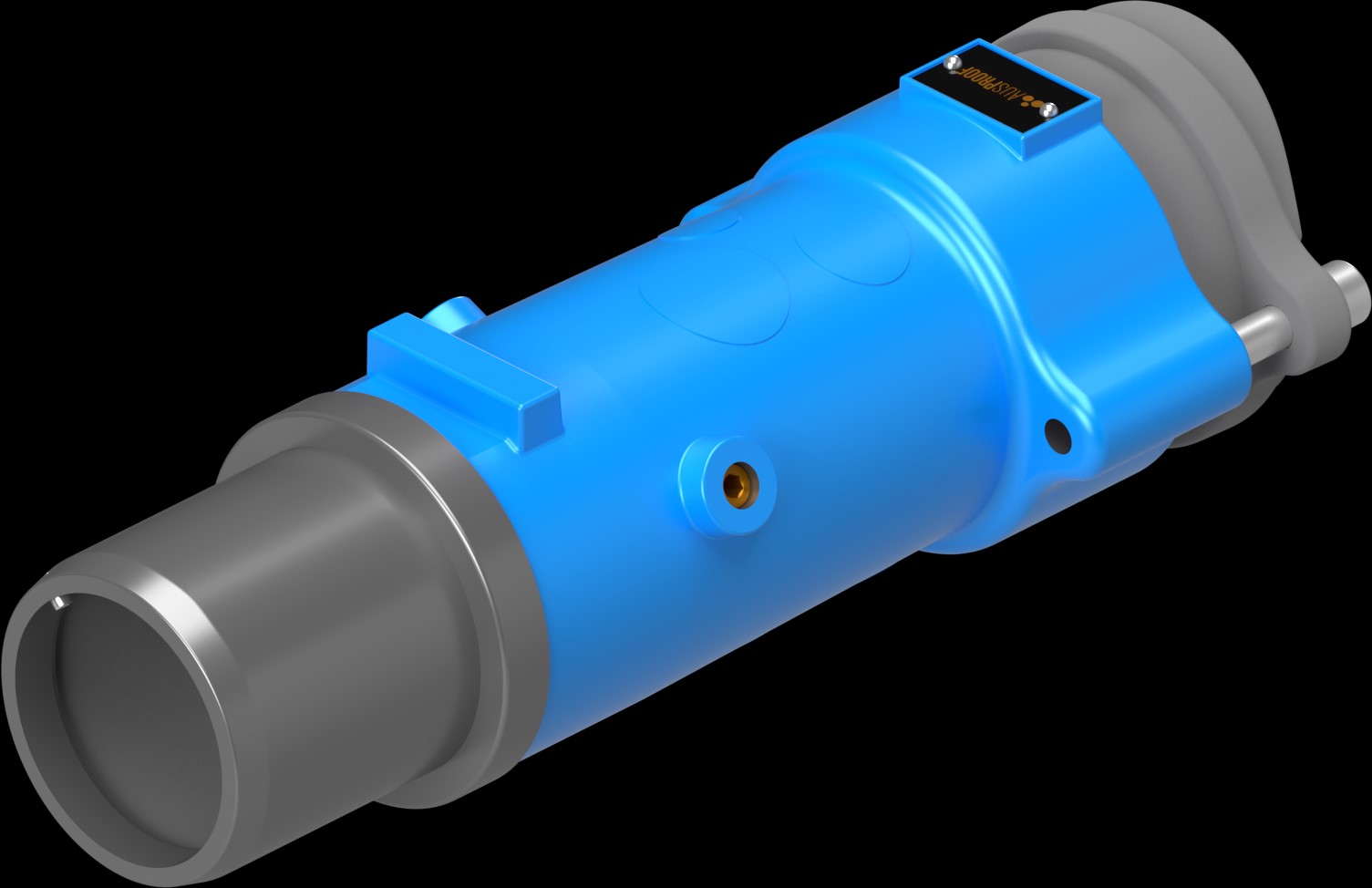

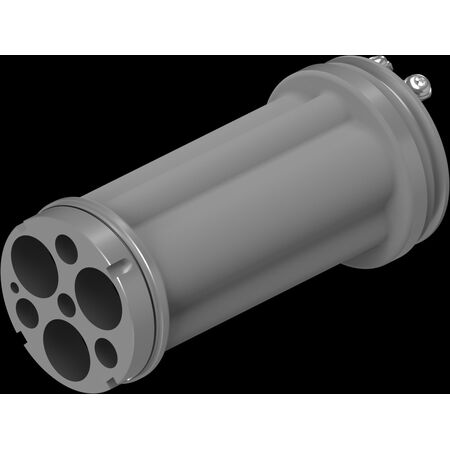

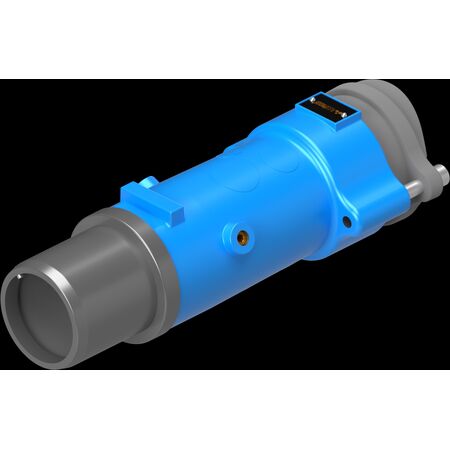

High Voltage 6P Plug 300A | IP55 Ingress Protection | Quick Release & Flameproof Design by Ausproof

BRAND: Ausproof

SKU: RS1763

$451.00 List price: $560.10

+ −

30 Days Return Delivery Options

High voltage 6P plug with 300A current rating and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and durability, featuring quick release and flameproof design for easy installation and maintenance.

Description

Product Name/Title: PL 1100V 300A 6P Plug Blue Body Kit wSLOT

Brand: Ausproof

SKU: RS1763

Alternatively Known As: Ex-certified plug, Mining plug, Flameproof plug, 6-pin industrial plug, High voltage plug

Technical Specifications

Voltage Range: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 300mm x 200mm
Weight: 9.0 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician trained in hazardous area electrical equipment to ensure compliance with safety standards.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste by extending product life
Easy flameproof repair reduces need for full replacements
Lightweight design reduces material usage and transport emissions

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 1100V 300A 6P Plug Blue Body Kit wSLOT is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
