High Voltage Industrial Plug 150A | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof
High voltage industrial plug with a 150A current rating and 660-1100V voltage range—ideal for mining and tunnelling applications. Built for safety with IP55 ingress protection and quick release features, ensuring reliable performance in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

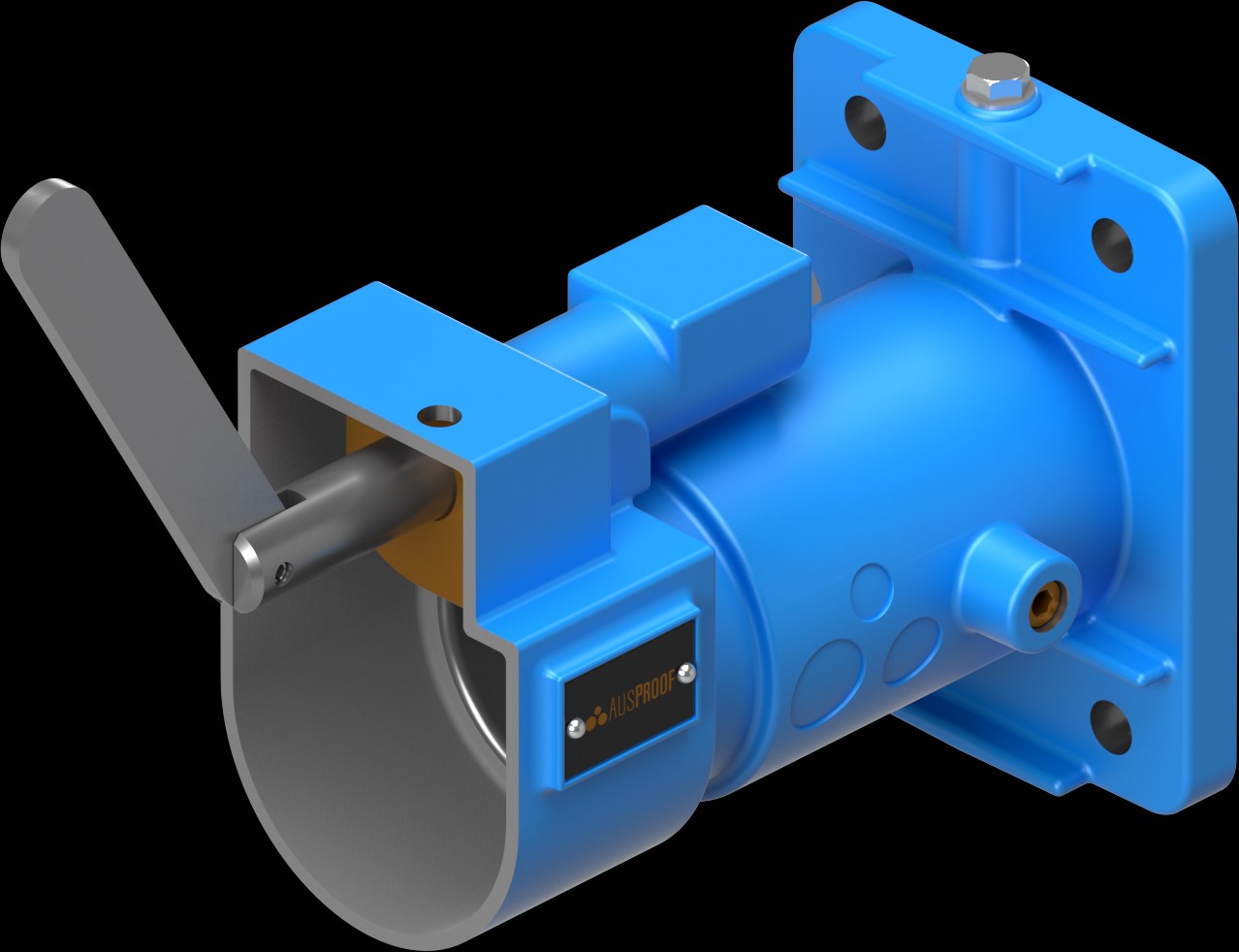

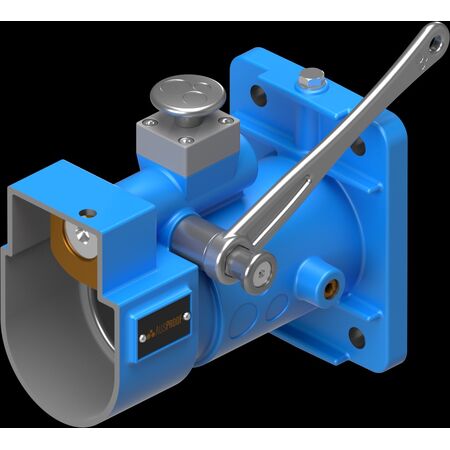

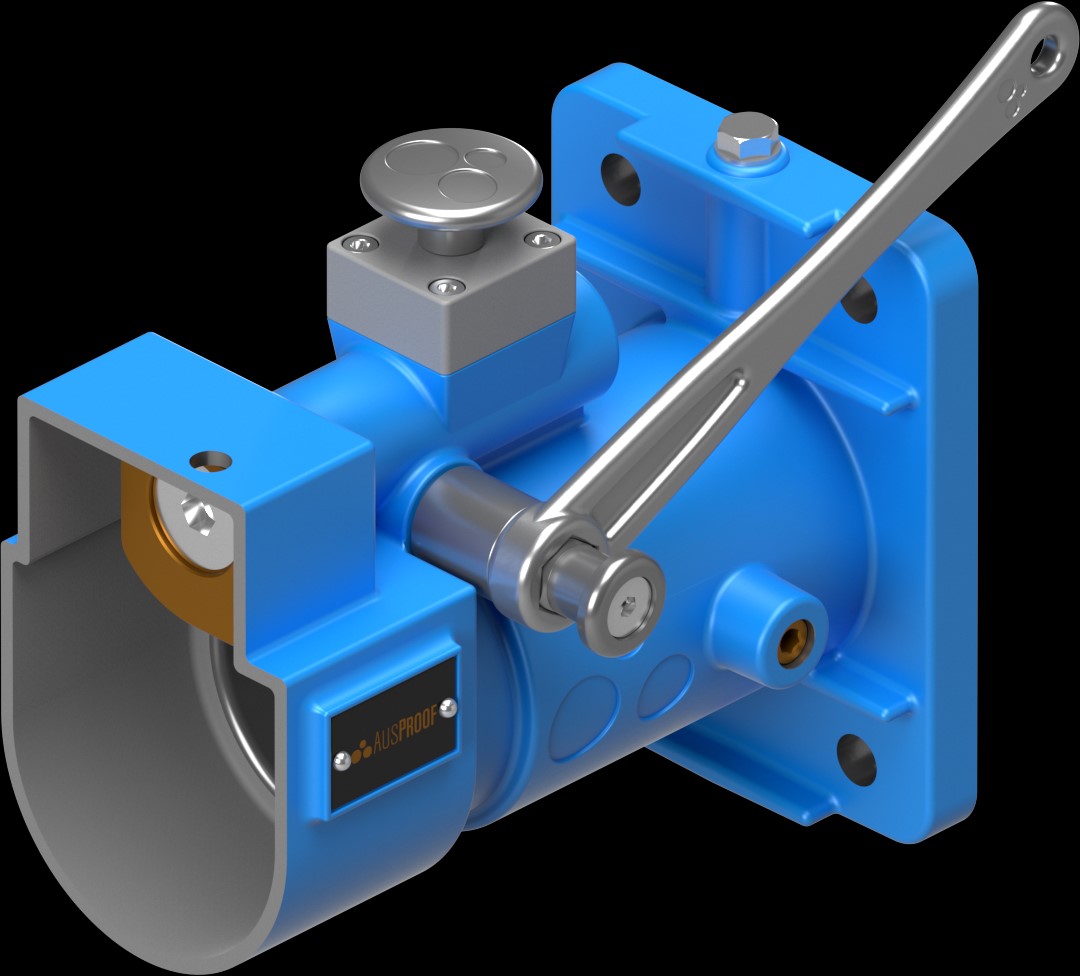

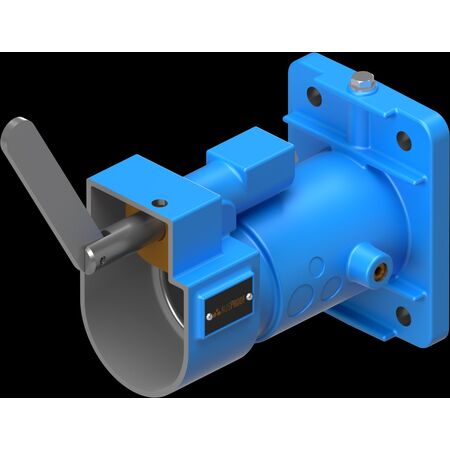

Product Name/Title: PS 1100V 150A RECEP Blue Body Kit
Brand: Ausproof
SKU: RS1805
Alternatively Known As: 150A Ex Plug and Receptacle, High Voltage Industrial Plug, Flameproof Electrical Connector
Technical Specifications
- Voltage Range: 660 to 1,100V
- Current Rating: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
- AC HV Withstand (Phase): 4.2kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: 150A
- Plug Weight: 4.1KG
- Receptacle Weight: 7.9KG
- Dimensions (H x L x W): 150mm x 250mm x 200mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof design enhances safety, reducing risk of environmental hazards.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PS 1100V 150A RECEP Blue Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
