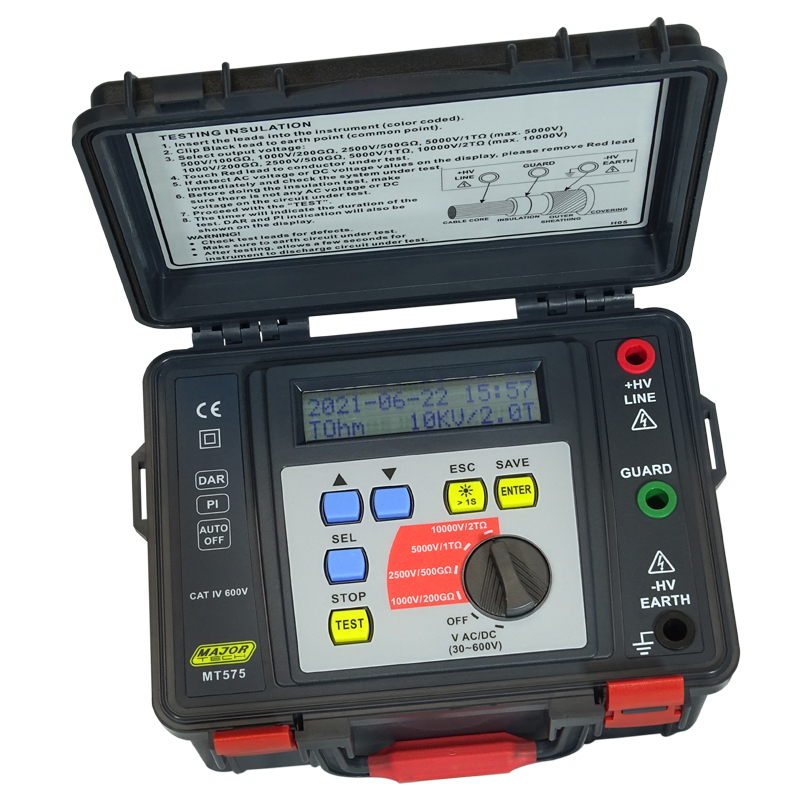

High Voltage Insulation Tester 10kV | Measures Up to 2TΩ | Automatic Circuit Discharge | LCD Display by Majortech
High voltage insulation tester measuring up to 10kV with insulation resistance up to 2TΩ—ideal for testing cables, transformers, and motors. Built for industrial and mining applications, featuring automatic circuit discharge and a large LCD display for easy reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Voltage Insulation Tester 10kV | Measures Up to 2TΩ | Automatic Circuit Discharge | LCD Display by Majortech
Brand: Majortech
SKU: MT575
Alternatively Known As: High Voltage Insulation Tester, 10kV Insulation Resistance Tester, HV Insulation Meter, Insulation Resistance Megohmmeter
Technical Specifications
- AC Voltage Measurement: 1V to 600V, Resolution: 1V, Accuracy: ±(2% + 3 digits)
- Insulation Resistance at 1000V: Range 1000V, Resolution 200GΩ, Accuracy ±(5% + 5 digits)
- Insulation Resistance at 2500V: Range 2500V, Resolution 500GΩ, Accuracy ±(5% + 5 digits)
- Insulation Resistance at 5000V: Range 5000V, Resolution 1TΩ, Accuracy ±(5% + 5 digits)
- Insulation Resistance at 10000V: Range 10000V, Resolution 2TΩ, Accuracy ±(5% + 5 digits)
- Short circuit current output: up to 5mA
- Memory: Stores 200 test results
- Display: 2 lines x 16 characters LCD
- Dimensions (H x L x W): 100mm x 300mm x 200mm
- Weight: 1.5 kg
Key Features
- Measures insulation resistance from 1000V DC to 10,000V DC
- Automatic circuit discharge after test completion
- Rotary selector switch with 4 preset voltage ranges: 1000V, 2500V, 5000V, 10,000V
- Insulation resistance measurement up to 2TΩ
- Microprocessor controlled with short circuit current output up to 5mA
- Stores 200 test results in memory with LCD recall
- Large intelligent 2-line x 16 character LCD display showing insulation reading, measuring time, output voltage, and output current
- Measures AC and DC voltage up to 600V
- Robust case suitable for extended field use
- Powered by 8 x 1.5V C batteries
Professional Installation Requirements
- No professional installation required; however, training in high voltage testing safety is recommended.
Applications
- Testing insulation characteristics of cables, transformers, motors, generators
- High pressure switches and insulators
- Large wiring installations in mining and industrial environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Battery-powered for portable use reducing need for mains power
- Durable design reduces waste and replacement frequency
Warranty Information
1 year warranty covering manufacturing defects and workmanship.
Available Now
The Majortech MT575 10kV High Voltage Insulation Tester is available now for immediate purchase. Ideal for mining, industrial, and electrical maintenance applications.
