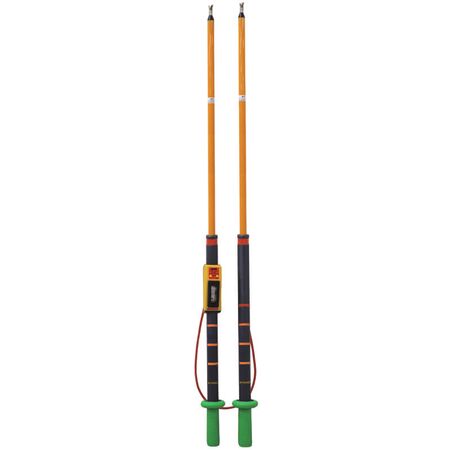

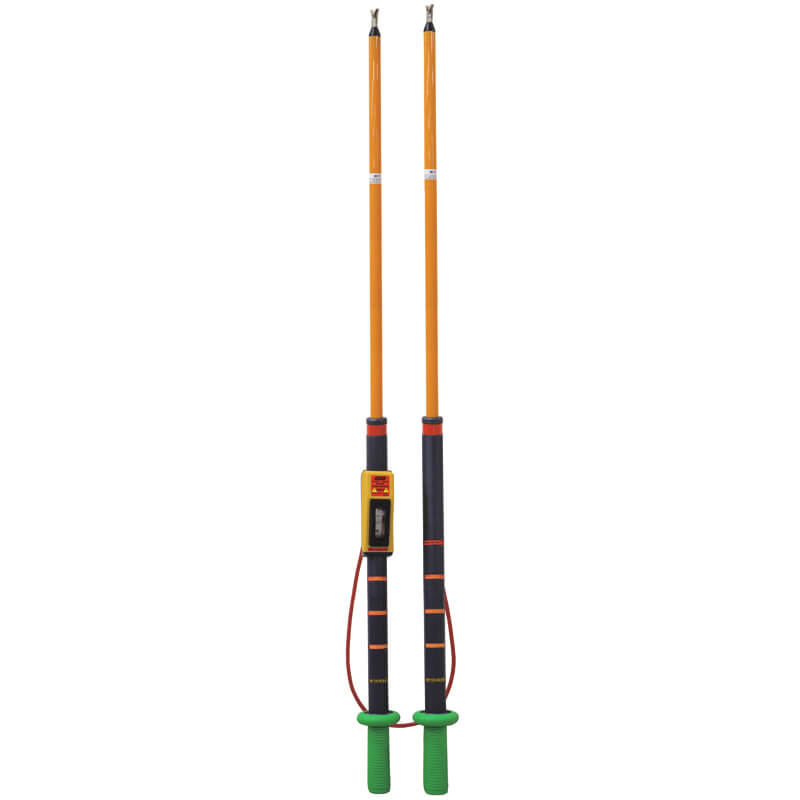

High Voltage Phasing Stick | 48kV Full Scale | Neon Indicator & Phase Comparator | 775mm Length by Majortech
The 44kV High Voltage Phasing Stick features a full scale voltage range of 48kV and a neon indicator for easy visibility—ideal for testing grounded or ungrounded electrical systems. Built for trained electrical personnel, it ensures accurate testing results with its durable composite body and high-quality glass fibre front ends.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Voltage Phasing Stick | 48kV Full Scale | Neon Indicator & Phase Comparator | 775mm Length by Majortech
Brand: Majortech
SKU: MT44KV
Alternatively Known As: High Voltage Phasing Stick, 44kV Voltage Detector, High Voltage Phase Comparator, HV Phasing Stick
Technical Specifications
- Full scale voltage range: 48kV
- Maximum voltage range: 55kV
- Frequency range: 50 or 60Hz
- Total resistance: 26.8MΩ
- Response time: less than 1 second
- Neon threshold voltage: 1.2kV
- Neon fully lit at: 1.5kV
- Display: Neon and panel meter
- Length of handle: 775mm
- Length of front end: 820mm
- Total length: 1595mm
- Handle material: Composite with polyurethane
- Front end material: Fibreglass wound tubing
- Operating temperature: -25°C to 55°C
- Operating humidity: 20 to 96% RH
- Safety standard: IEC61481
- Dimensions (H x L x W): 50mm x 1595mm x 50mm
- Weight: 2.5 kg
Key Features
- All-in-one meter including Phase Comparator with colour coded scale indication
- Voltage Detector with Neon Indication
- Scaled Voltmeter for accurate voltage measurement
- Dual pole instrument with high quality glass fibre front ends
- Composite polyurethane main body moulding for tough, lightweight construction
- Analogue colour coded dual scales (Green = in phase, Red = out of phase)
- Bright neon indicator for easy visibility and voltage detection above 1200VAC
- Housed in a high quality plastic case with shock absorbing foam
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Professional use by trained electrical personnel is recommended to ensure safety and accurate testing results.
Applications
- Testing of grounded or ungrounded electrical systems
- Checking voltage fuses
- Testing for correct phase connections
- Verifying absence of high voltage on de-energized lines or apparatus
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Lightweight and durable materials reduce resource consumption and waste
- Long-lasting construction minimizes replacement frequency
Warranty Information
Warranty details available upon request from Majortech; typically includes coverage against manufacturing defects.
Available Now
The Majortech 44kV High Voltage Phasing Stick is available now for immediate purchase. Ideal for electrical testing and maintenance in industrial and utility applications.
