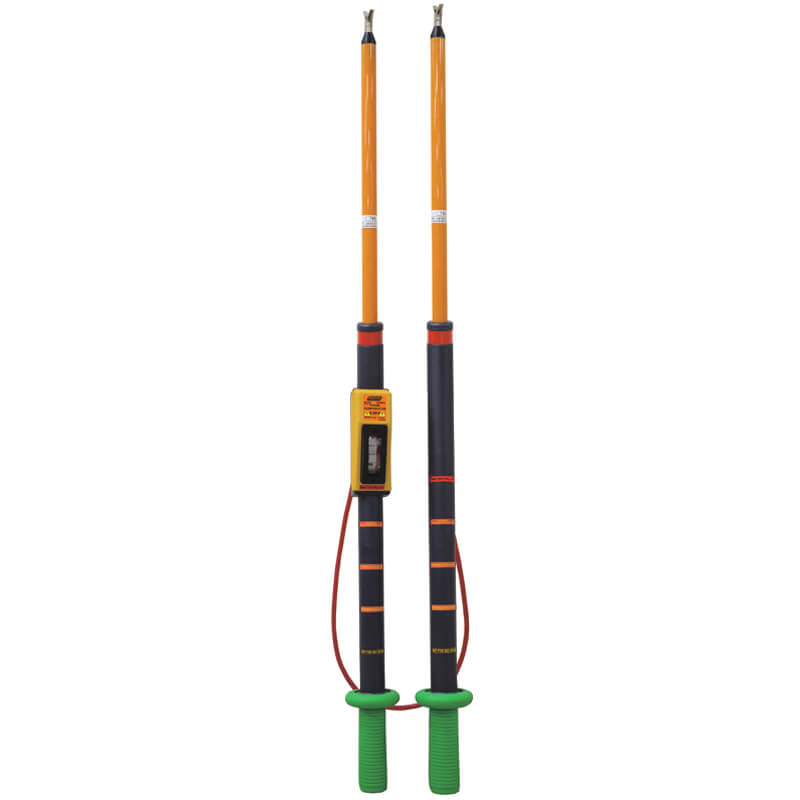

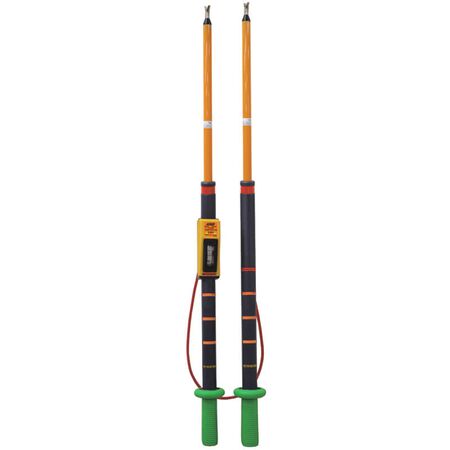

High Voltage Phasing Stick | 8kV Full Scale | Neon Indicator & Dual Scales | Lightweight by Majortech
High voltage phasing stick with an 8kV full scale and bright neon indicator—ideal for testing grounded or ungrounded electrical systems. Built for trained electrical personnel, it features a lightweight design and dual scales for accurate voltage detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Voltage Phasing Stick | 8kV Full Scale | Neon Indicator & Dual Scales | Lightweight by Majortech
Brand: Majortech
SKU: MT6KV
Alternatively Known As: High Voltage Phasing Stick, 6kV Voltage Detector, High Voltage Phase Comparator, Electrical Phasing Stick
Technical Specifications
- Full scale voltage range: 8kV
- Maximum voltage range: 9kV
- Frequency range: 50 or 60Hz
- Total resistance: 4.48MΩ
- Response time: <1 second
- Neon threshold voltage: 1.2kV
- Neon fully lit at: 1.5kV
- Display type: Neon & panel meter
- Handle material: Composite with polyurethane
- Front end material: Fibreglass wound tubing
- Operating temperature: -25°C to 55°C
- Operating humidity: 20 to 96% RH
- Safety standard: IEC61481
- Dimensions (H x L x W): n/a mm x 1175mm x n/a mm
- Weight: 2.1 kg
Key Features
- All-in-one meter including Phase Comparator with colour coded scale indication
- Voltage Detector with Neon Indication
- Scaled Voltmeter
- Analogue colour coded dual scales (kVAC and % full scale)
- Bright neon indicator for easy visibility and voltage detection
- Tough, lightweight construction with glass fibre front ends and composite polyurethane body
- Dual pole instrument with superior safety features
Professional Installation Requirements
- No professional installation required; however, use by trained electrical personnel is recommended for safety and accuracy.
Applications
- Testing of grounded or ungrounded electrical systems
- Checking voltage fuses
- Testing for correct phase connections
- Verifying absence of high voltage on de-energized lines or apparatus
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Lightweight design reduces material usage and transportation emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.
Available Now
The Majortech 6kV High Voltage Phasing Stick is available now for immediate purchase. Ideal for electrical testing and maintenance in industrial and utility applications.
