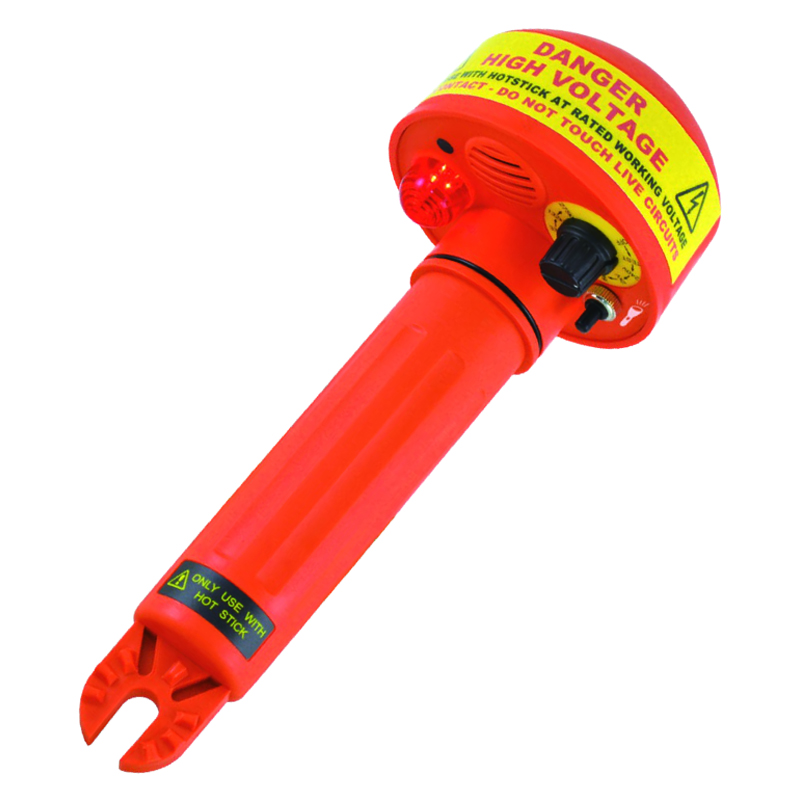

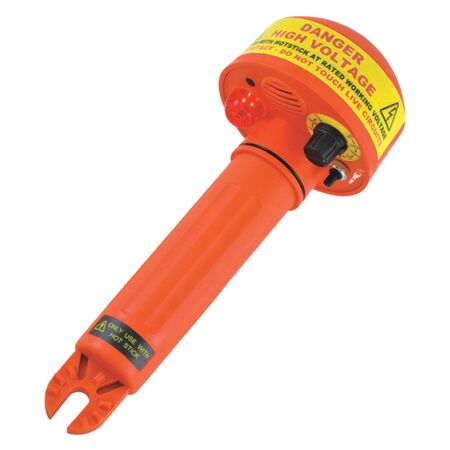

High Voltage Proximity Detector | 240V to 500kV AC | IP65 Rated | High Brightness LED by Majortech

BRAND: Major Tech

SKU: MT275

$511.50 List price: $658.20

+ −

30 Days Return Delivery Options

High voltage proximity detector with a detection range of 240V to 500kV AC and a wide 120° detection angle—ideal for electrical industry professionals. Built for safe, non-contact voltage detection, featuring a high brightness LED visual indicator and durable IP65 enclosure.

Description

Product Name/Title: High Voltage Proximity Detector | 240V to 500kV AC | IP65 Rated | High Brightness LED by Majortech

Brand: Majortech

SKU: MT275

Alternatively Known As: High Voltage Detector, Voltage Proximity Sensor, HV Voltage Detector, Non-contact Voltage Tester

Technical Specifications

Voltage Detection Range: 240V to 500kV AC
Frequency Range: 40 – 70Hz
Visual Indicator: High brightness red LED
Audible Indicator: High noise level buzzer
Power On Indicator: Self-test selection
Flash Light: Yes
Enclosure: Moulded IP65 rated
Power Supply: 3 x C batteries
Dimensions: 255 x 96 x 45 mm
Weight: 531 g
Safety Standards: EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8
Dimensions (H x L x W): 45mm x 255mm x 96mm
Weight: 0.531 kg

Key Features

10 voltage settings from 240V AC to 500kV AC
Wide 120° detection angle
Internal pickup sensor plate senses radiated field around live conductors
Built-in self-test range to verify detector functionality
High brightness red LED visual voltage indicator
High noise level buzzer for audible voltage detection
Flash light included
Moulded IP65 enclosure for durability
Powered by 3 x C batteries

Professional Installation Requirements

No professional installation required; however, training on safe handling and use is recommended for operators.

Applications

Electrical industry for detecting high voltage AC conductors
Use with insulating link sticks or hot sticks for high kilo voltage testing
Non-contact voltage detection in industrial and utility environments

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Non-contact detection reduces risk of damage to equipment and environment
Battery-powered with long life reduces frequent replacements

Warranty Information

Standard manufacturer warranty applies. Please refer to Majortech for specific warranty details.

Available Now

The Majortech MT275 High Voltage Proximity Detector is available now for immediate purchase. Ideal for electrical industry professionals requiring safe, non-contact voltage detection.
