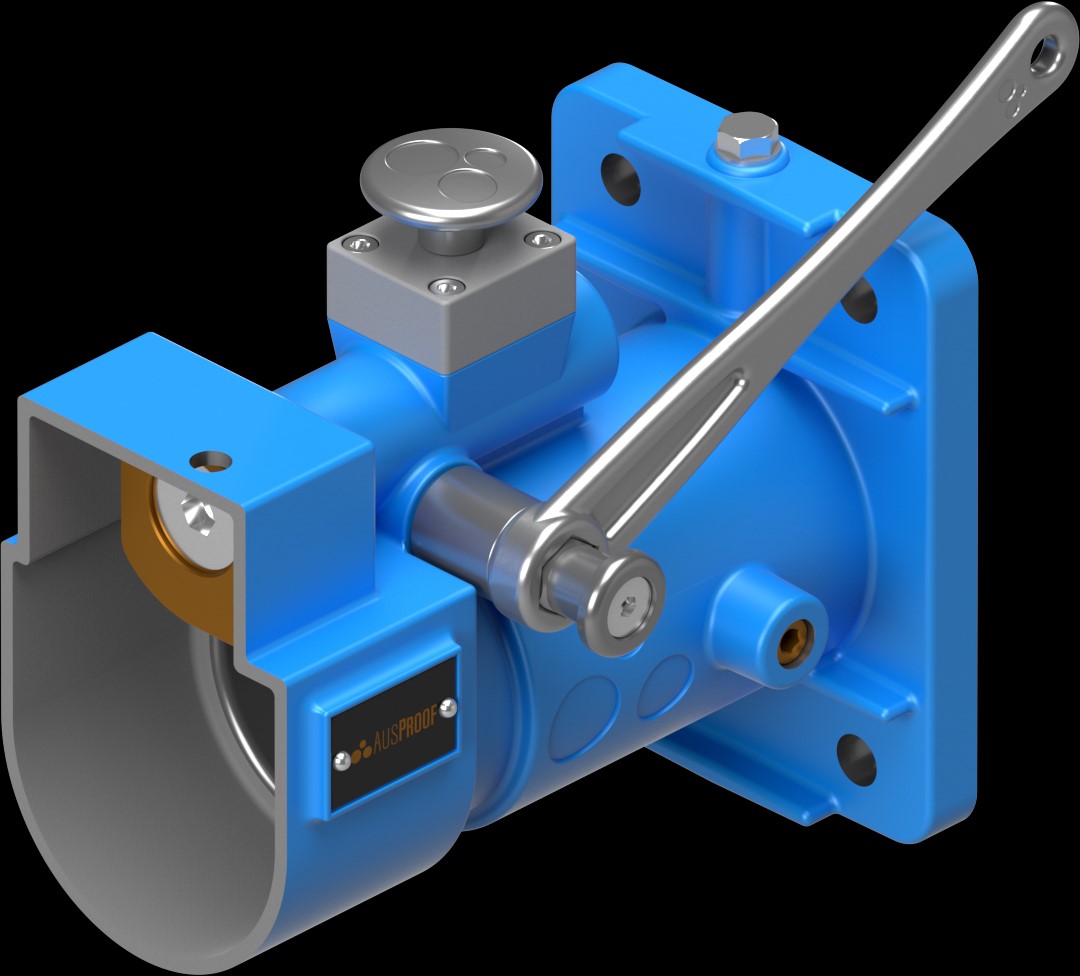

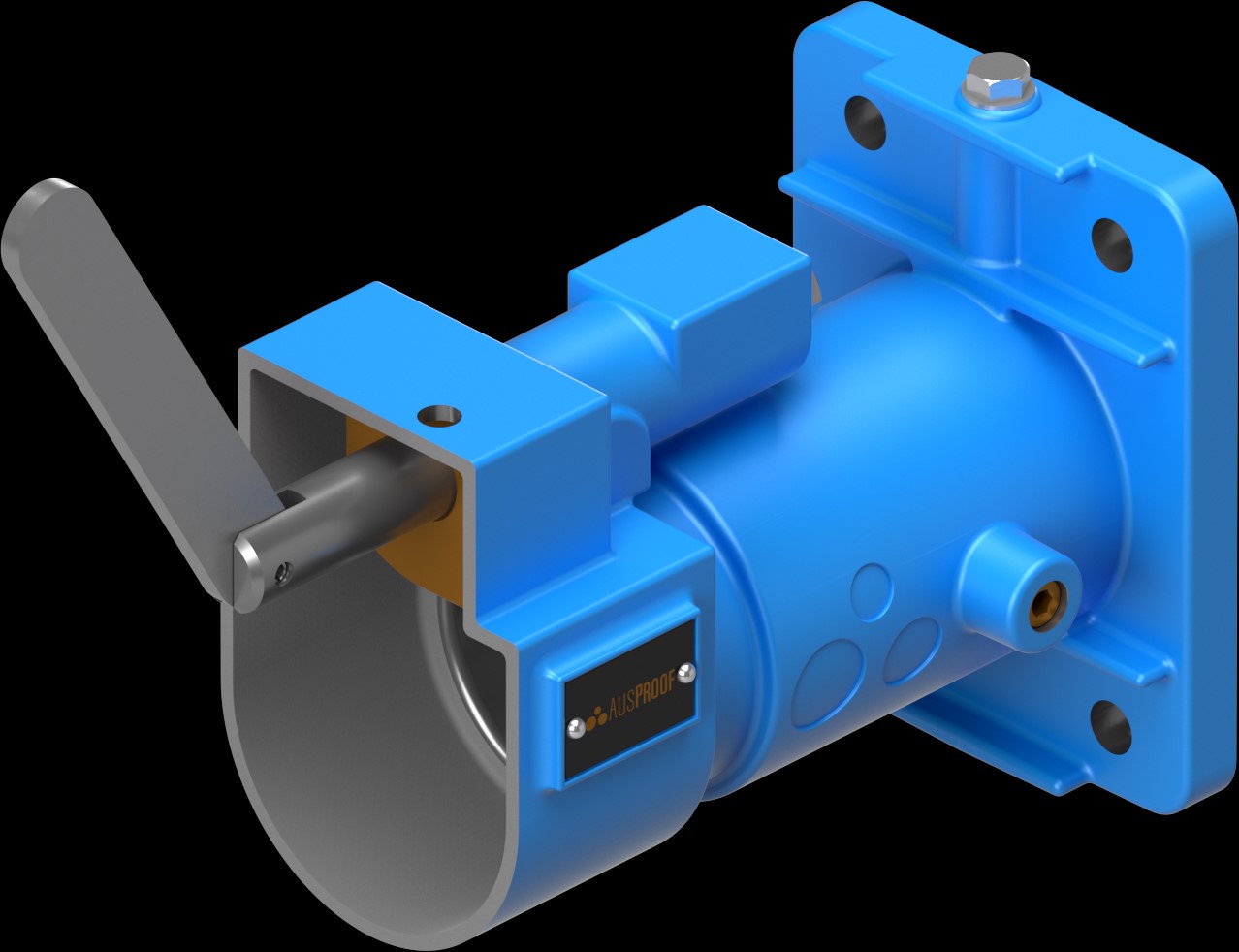

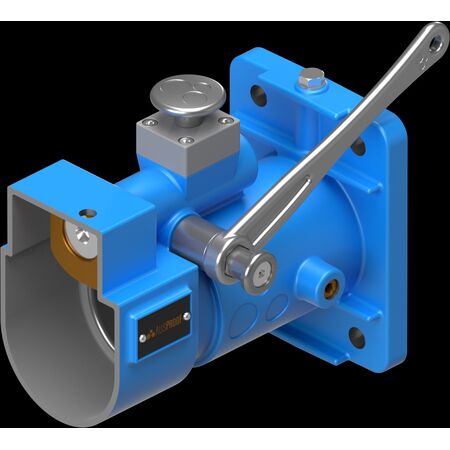

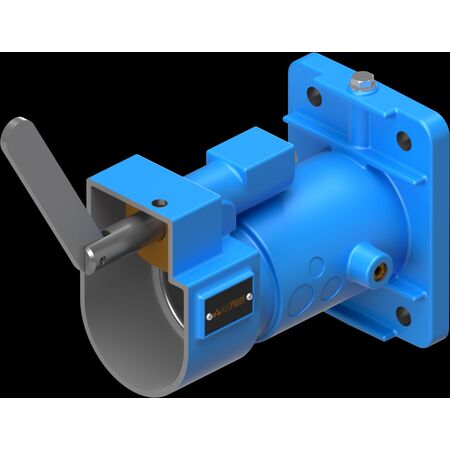

High Voltage Receptacle 150A | 660-1100V | IP55 Ingress Protection | Quick Release by Ausproof
High voltage receptacle rated at 150A with a voltage range of 660 to 1100V—ideal for mining and hazardous environments. Built for safety and durability, featuring IP55 ingress protection and quick release functionality for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PS QR 1100V 150A RECEP Blue Body Kit
Brand: Ausproof
SKU: RS1805QR
Alternatively Known As: 150A Flameproof Plug and Receptacle, Ex Certified Industrial Plug, High Voltage Mining Plug, Quick Release Receptacle
Technical Specifications
- Voltage Range: 660 to 1,100V
- Current Rating: 150A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 Tests of 12.5kA for 0.2 seconds
- Through Fault Current (Earth): 2 Tests of 4.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 4.2kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 150A
- Weight: Receptacle 7.9kg, Plug 4.1kg
- Dimensions (H x L x W): 300mm x 150mm x 250mm
- Weight: 7.9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and downtime
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PS QR 1100V 150A Receptacle Blue Body Kit is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
