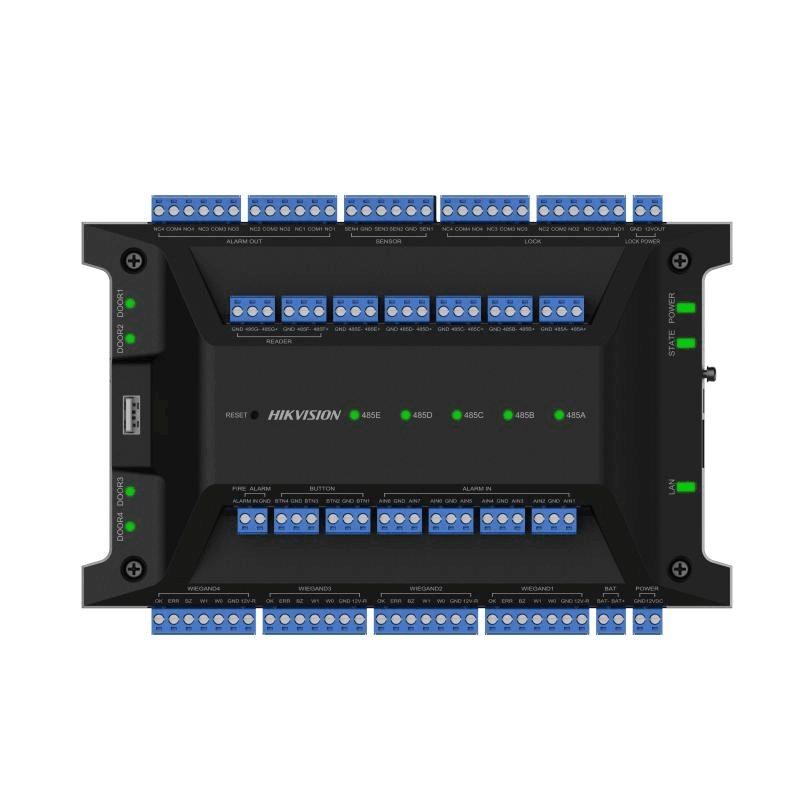

HIKVISION Access Control K2704X 4-Door Control Panel | Expandable to 128 Doors | Web-Based Management | by Dicker Data
The HIKVISION Access Control K2704X 4-Door Control Panel is designed for robust security management, supporting up to 4 doors and expandable to control 128 doors with ease. Ideal for commercial buildings, this panel features web-based management for seamless configuration and monitoring, ensuring efficient access control. With advanced functions like multi-door interlocking and anti-passback, it’s perfect for professional installations requiring high security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HIKVISION Access Control K2704X 4-Door Control Panel | Expandable to 128 Doors | Web-Based Management | by Dicker Data
Brand: Dicker Data
SKU: DS-K2704X-P
Alternatively Known As: 4-Door Access Control Panel, K2704X Control Module, DS-K2704X-P Access Controller
Technical Specifications
- Supports up to 4 door control
- Expandable to 62 DS-K2M002X access modules
- Controls up to 128 doors
- Downstream RS-485 redundancy wiring design
- 5-channel downlink RS-485 interface with dual-bus loops
- Web-based configuration management
- Supports multi-door interlocking and anti-passback
- Backup battery charging and discharging supported
- Status indicators for power, communication, and operation
- Dimensions (H x L x W): 100mm x 250mm x 300mm
- Weight: 2.5 kg
Key Features
- Supports control of up to 4 doors
- Expandable to 62 DS-K2M002X access modules and control of up to 128 doors
- Downstream RS-485 redundancy wiring design for communication stability
- 5-channel downlink RS-485 interface supporting redundant applications and dual-bus loops with physical isolation
- Web configuration management without the need for software applications
- Supports multi-door interlocking and anti-passback functions
- Backup battery support with charging and discharging capabilities
- Status indicators for power supply, communication, and operation for easy equipment health detection
Professional Installation Requirements
- Installation by a qualified security systems technician or licensed electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Access control for commercial buildings
- Security management for multi-door facilities
- Professional access control systems requiring multi-door interlocking and anti-passback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports energy-efficient operation with backup battery management
- Reduces paper-based security management through web configuration
Warranty Information
2 years warranty covering manufacturing defects and hardware failures.
Available Now
The HIKVISION ACCESS CONTROL K2704X 4-Door Control Panel Module is available for immediate purchase, ideal for commercial and professional access control applications.
