HIKVISION Access Control K2708X 8-Door Enclosure | Web Configuration Management | Multi-Door Interlocking | by Dicker Data

BRAND: Dicker Data
SKU: DS-K2708X-ENCLOSURE
$288.40 List price: $349.00
+ −
30 Days Return Delivery Options

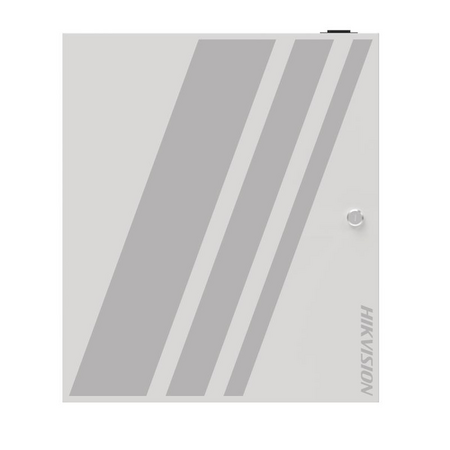

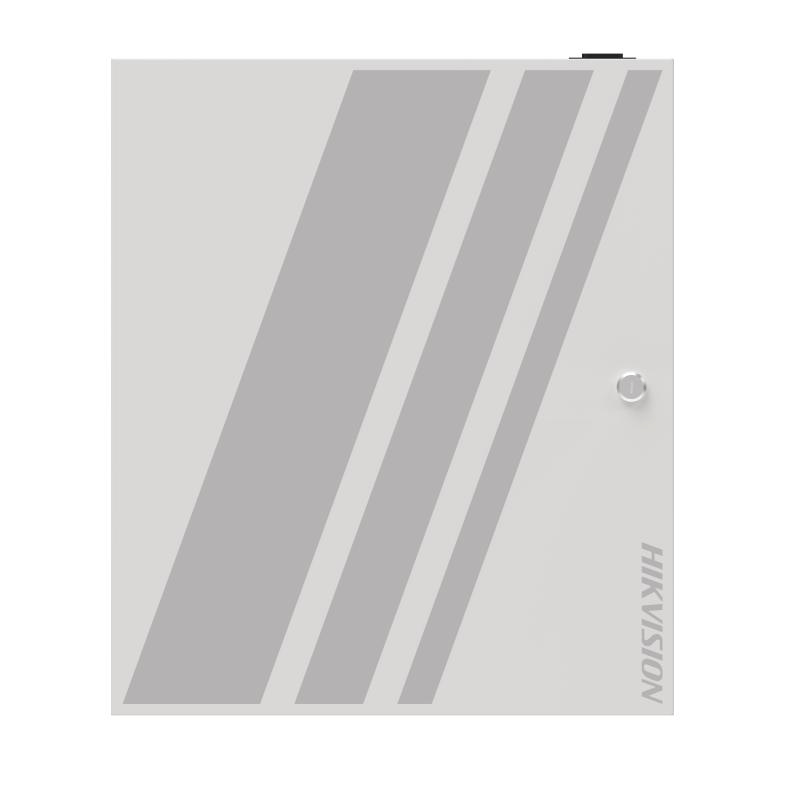

The HIKVISION Access Control K2708X 8-Door Enclosure is designed for robust security management in commercial buildings. It supports 8-door control with web configuration management, ensuring easy setup without software. Ideal for professional access control systems, it features multi-door interlocking and anti-passback capabilities, making it perfect for multi-door facilities.

Product Name/Title: HIKVISION Access Control K2708X 8-Door Enclosure | Web Configuration Management | Multi-Door Interlocking | by Dicker Data

Brand: Dicker Data

SKU: DS-K2708X-ENCLOSURE

Alternatively Known As: 8-Door Access Control Enclosure, Multi-Door Access Controller Enclosure, Hikvision K2708X Access Panel

Technical Specifications
  • Supports 8-door control via 2 DS-K2M002X access modules and one 4-door access controller
  • Downstream RS-485 redundancy wiring design for stable communication
  • 5-channel downlink RS-485 interface with dual-bus loop physical isolation
  • Supports up to 16 access modules per loop bus
  • Web configuration management without software
  • Supports multi-door interlocking and anti-passback
  • Backup battery charging and discharging supported
  • Status indicators for power supply, communication, and operation
  • Dimensions (H x L x W): 300mm x 100mm x 350mm
  • Weight: 3.5 kg
Key Features
  • Supports 8-door control with 2 DS-K2M002X access modules and one 4-door access controller
  • Downstream RS-485 redundancy wiring design for communication stability
  • 5-channel downlink RS-485 interface supporting redundant applications and dual-bus loops
  • Supports up to 16 access modules per loop bus
  • Web configuration management without software application
  • Supports multi-door interlocking and anti-passback
  • Backup battery access with charging and discharging capabilities
  • Status indicators for power supply, communication, and operation for equipment health detection
Professional Installation Requirements
  • Installation by a qualified security systems technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
  • Access control for commercial buildings
  • Security management for multi-door facilities
  • Professional access control systems requiring multi-door interlocking and anti-passback
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports backup battery to ensure continuous operation during power outages, reducing system downtime
  • Web-based configuration reduces the need for physical software installation and associated resource use
Warranty Information

2 years warranty from the date of purchase covering manufacturing defects.

Available Now

The HIKVISION ACCESS CONTROL K2708X 8-DOOR ENCLOSURE is available for immediate purchase, ideal for commercial and professional access control applications.
