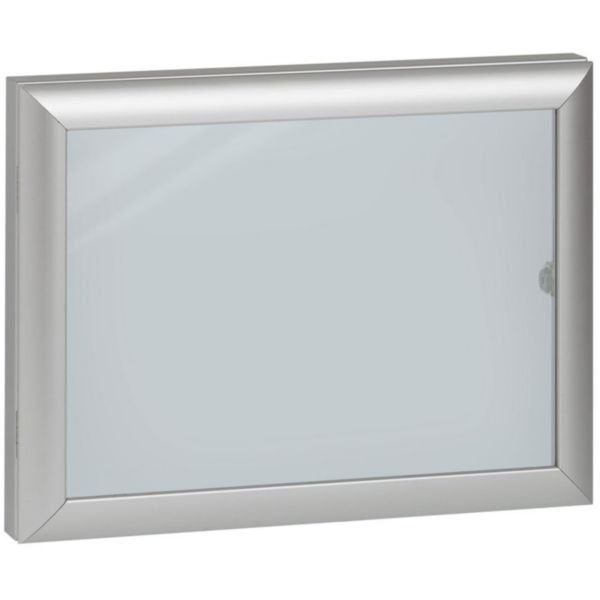

Hinged Glass Door for Cabinets | IP54 Rated | Anodised Aluminium Frame | 3mm Polycarbonate Window | @EA of 1 | by Legrand
The Hinged Glass Door for Cabinets is IP54 rated, providing excellent dust and water protection. Featuring a durable anodised aluminium frame and a 3mm thick polycarbonate transparent window, this door is perfect for industrial enclosures and cabinet applications. With a 120° opening angle and a secure 455 key lock, it ensures easy access while protecting sensitive equipment from accidental operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hinged Glass Door for Cabinets | IP54 Rated | Anodised Aluminium Frame | 3mm Polycarbonate Window | @EA of 1 | by Legrand
Brand: Legrand
SKU: 047545
Alternatively Known As: Cabinet hinged glass door, IP54 cabinet door, industrial enclosure glass door
Technical Specifications
- IP Rating: IP54
- Frame Material: Anodised aluminium
- Window Material: 3 mm polycarbonate transparent window
- Seal: Neoprene
- Lock Type: 455 key lock
- Opening Angle: 120°
- Usable Depth: 42 mm
- External Dimensions: Width 300 mm, Height 400 mm, Depth 50 mm
- Window Height: 230 mm
- Window Depth: 330 mm
- Dimensions (H x L x W): 400mm x 50mm x 300mm
- Weight: 1.5 kg
Key Features
- IP54 rated for dust and water protection
- Anodised aluminium frame for durability
- 3 mm thick polycarbonate transparent window
- Neoprene seal for enhanced sealing
- 455 key lock with 120° opening
- Supplied with drilling template for easy installation
Professional Installation Requirements
- Professional installation recommended to ensure proper sealing and secure locking mechanism.
Applications
- Industrial enclosures for protecting electrical and electronic equipment
- Cabinet doors for Atlantic stainless steel and Marina cabinets
- Protection of devices on front panels to prevent accidental operation
Standards & Compliance
- Complies with AS/NZS 2208 – Safety Glass in Buildings
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Protects sensitive equipment, reducing electronic waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Hinged Glass Door for Cabinets IP54 300x400mm is available for immediate purchase, ideal for industrial and commercial cabinet protection applications.
