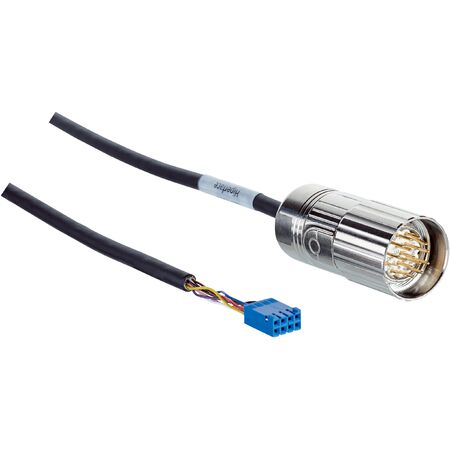

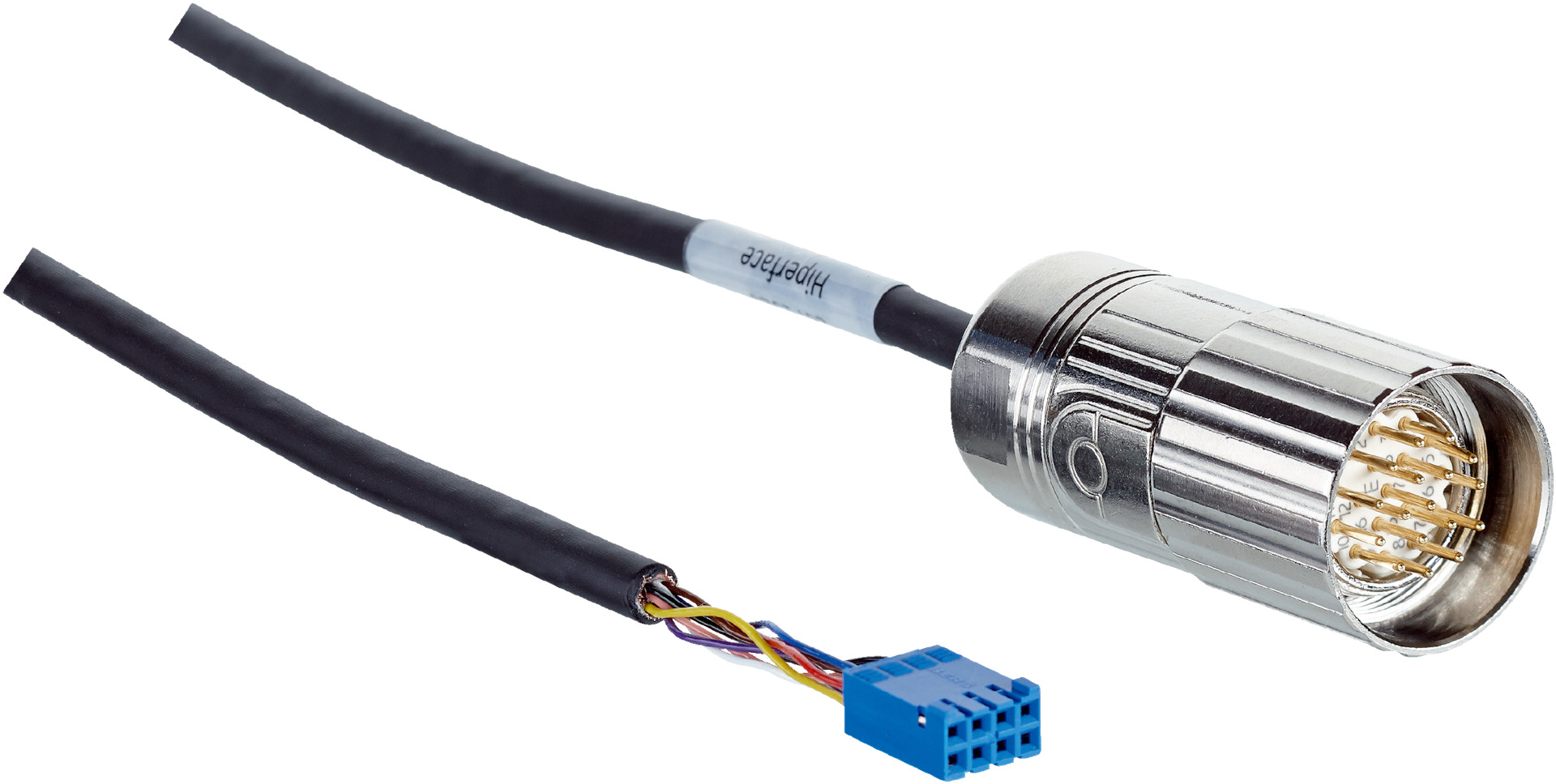

HIPERFACE Cable Assembly | DUBOX 8-Pin Female & M23 17-Pin Male | 1m Length | Black Jacket | by SICK
The HIPERFACE Cable Assembly is designed for seamless connectivity in industrial automation systems, featuring a DUBOX 8-pin female connector and a M23 17-pin male connector. With a 1-meter length and 8-wire configuration, this unshielded cable ensures reliable signal transmission for robotics and motion control applications, making it an essential component for machine tool communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, DUBOX, 8-pin, straight
- Connection type head B: Male connector, M23, 17-pin, straight
- Cable length: 1 m
- Cable wires: 8-wire
- Jacket color: Black
- Cable diameter: 5.6 mm
- Conductor cross section: 0.15 mm²
- Shielding: Unshielded
- Signal type: HIPERFACE®
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, DUBOX, 8-pin, straight on head A
- Male connector, M23, 17-pin, straight on head B
- 1 meter length, 8-wire cable
- Black jacket color
- Unshielded cable with 0.15 mm² conductor cross section
- Supports HIPERFACE® signal type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and signal integrity.
Applications
- Industrial automation systems
- Robotics and motion control
- Machine tool communication
- Encoder signal transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China-RoHS for restricted hazardous substances
- EU declaration of conformity ensures adherence to environmental and safety regulations
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK DSL-2317-G01MJB1 HIPERFACE cable assembly is available for immediate purchase, ideal for industrial automation and motion control applications.
