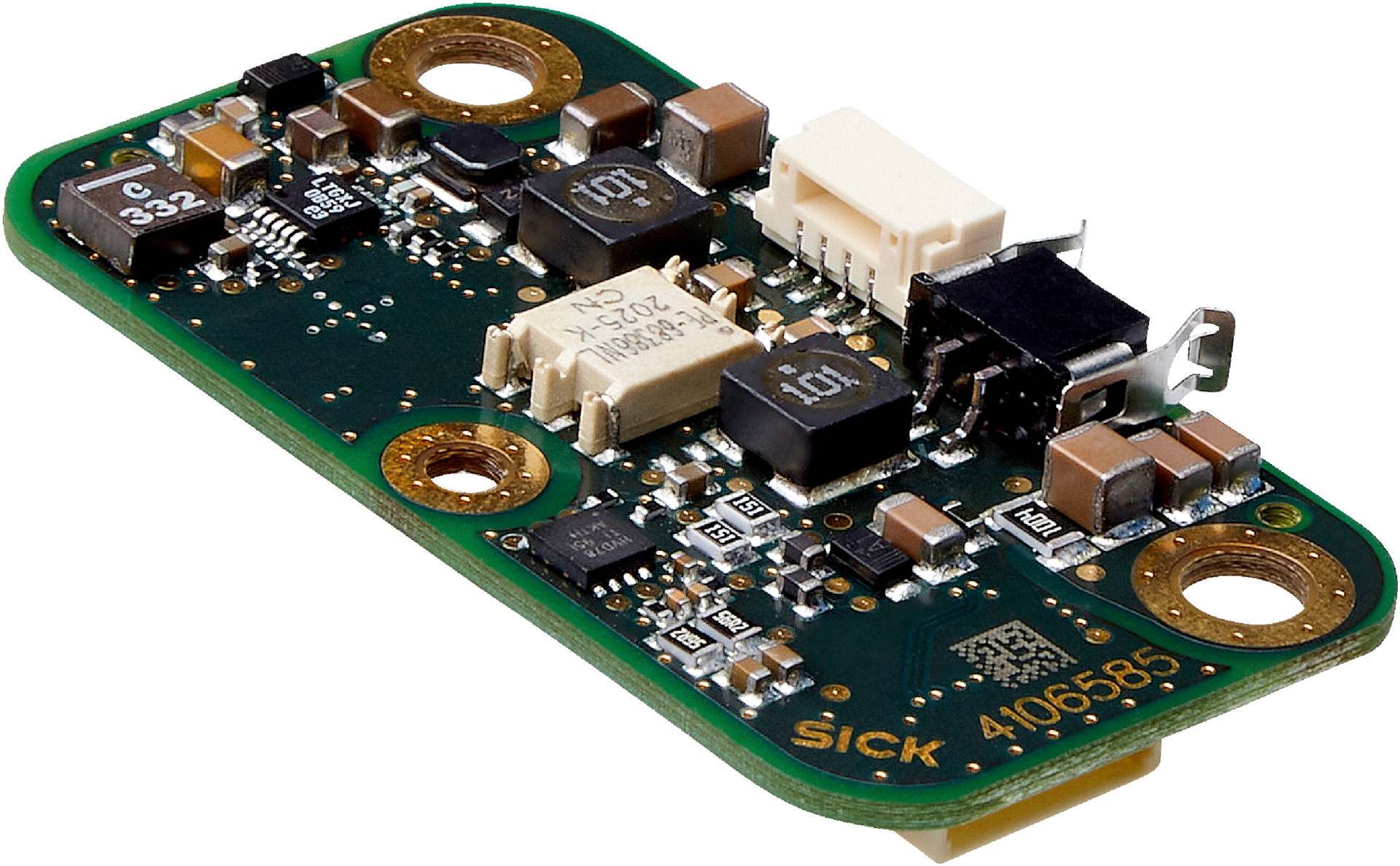

HIPERFACE DSL Motor Feedback Sensor | MTTFD ≤ 190 Years | 13 Bit Interpolation | by SICK
The HIPERFACE DSL Motor Feedback Sensor is designed for high precision in industrial automation, featuring a mean time to dangerous failure (MTTFD) of ≤ 190 years and a 13-bit interpolation factor for enhanced resolution. Ideal for safety-related motor control systems, this sensor operates within a temperature range of –30 °C to +115 °C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): ≤ 190 years (EN ISO 13849)
- Speed when switching on/resetting: ≤ 0.5 min⁻¹
- Interpolation factor: 13 bit
- Communication interface: HIPERFACE DSL®
- Initialization time: ≤ 1.3 ms
- Measurement external temperature resistance: 32-bit value, 0 to 209,600 Ω
- Input signal type: HIPERFACE®
- Maximum cable length: ≤ 0.2 m
- Connection type: Male connector, 4-pin output; Male connector, 8-pin input
- Supply voltage: 7 V to 12 V
- Warm-up time voltage ramp: Max. 180 ms
- Current consumption: 80 mA (without load)
- Operating temperature range: –30 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Enclosure rating: IP00
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Mean time to dangerous failure (MTTFD) ≤ 190 years according to EN ISO 13849
- Speed when switching on/resetting the motor feedback system ≤ 0.5 min⁻¹
- 13 bit interpolation factor for high resolution
- Communication interface: HIPERFACE DSL®
- Initialization time ≤ 1.3 ms
- Measurement of external temperature resistance with 32-bit value
- Input signal type HIPERFACE® with maximum cable length ≤ 0.2 m
- Supply voltage range 7 V to 12 V
- Current consumption 80 mA (without load)
- Operating temperature range from –30 °C to +115 °C
- Storage temperature range from –40 °C to +125 °C
- Relative humidity up to 90%, condensation not permitted
- Enclosure rating IP00
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with HIPERFACE DSL systems and electrical safety standards.
Applications
- Industrial automation for motor feedback
- Safety-related motor control systems
- High precision speed and position measurement
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 80 mA reduces energy usage
- Long operational life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

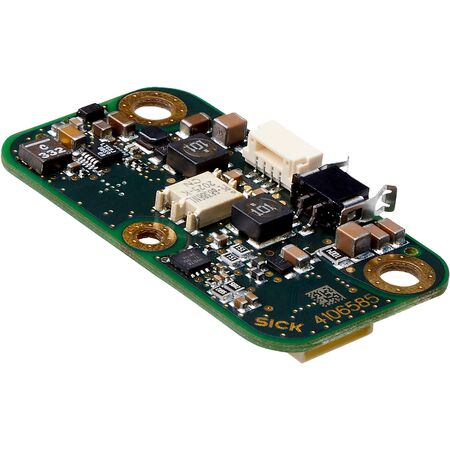

The SICK AD-HF2DSL03 HIPERFACE DSL Motor Feedback System is available for immediate purchase, ideal for industrial automation and safety-related motor control applications.
