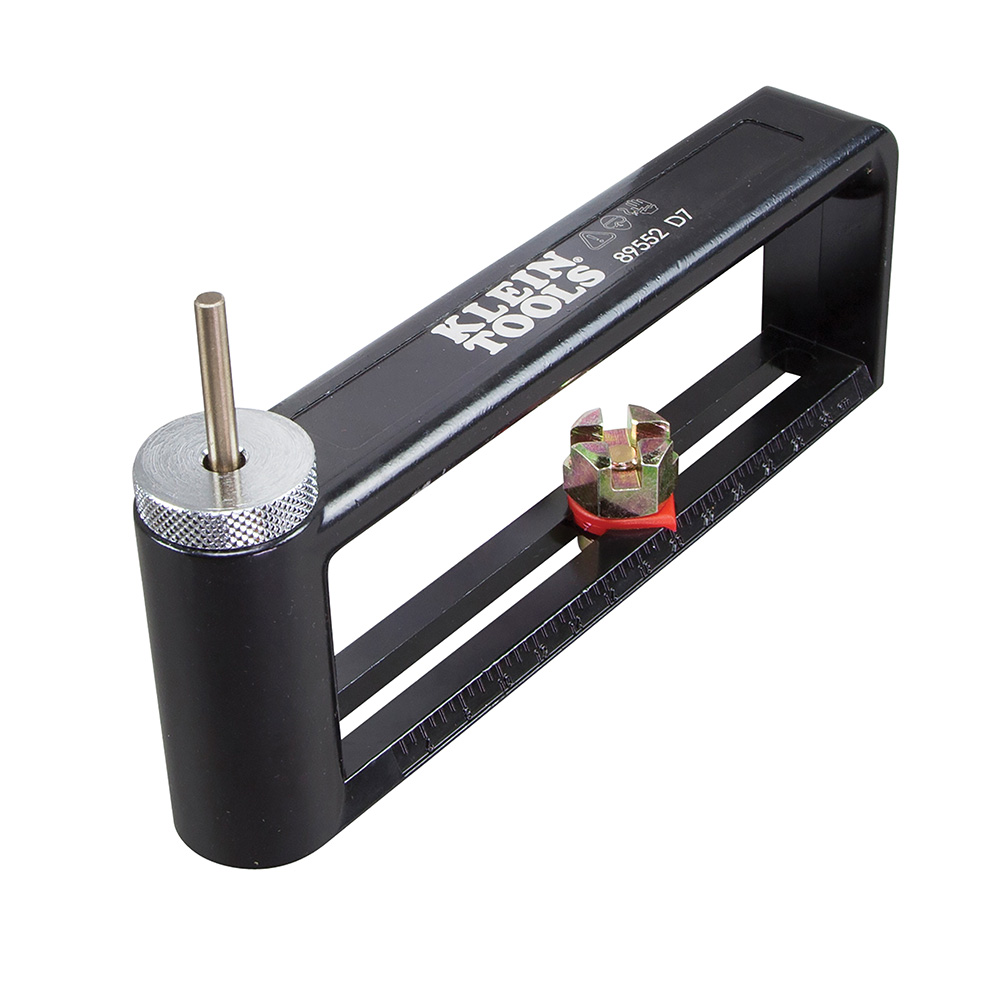

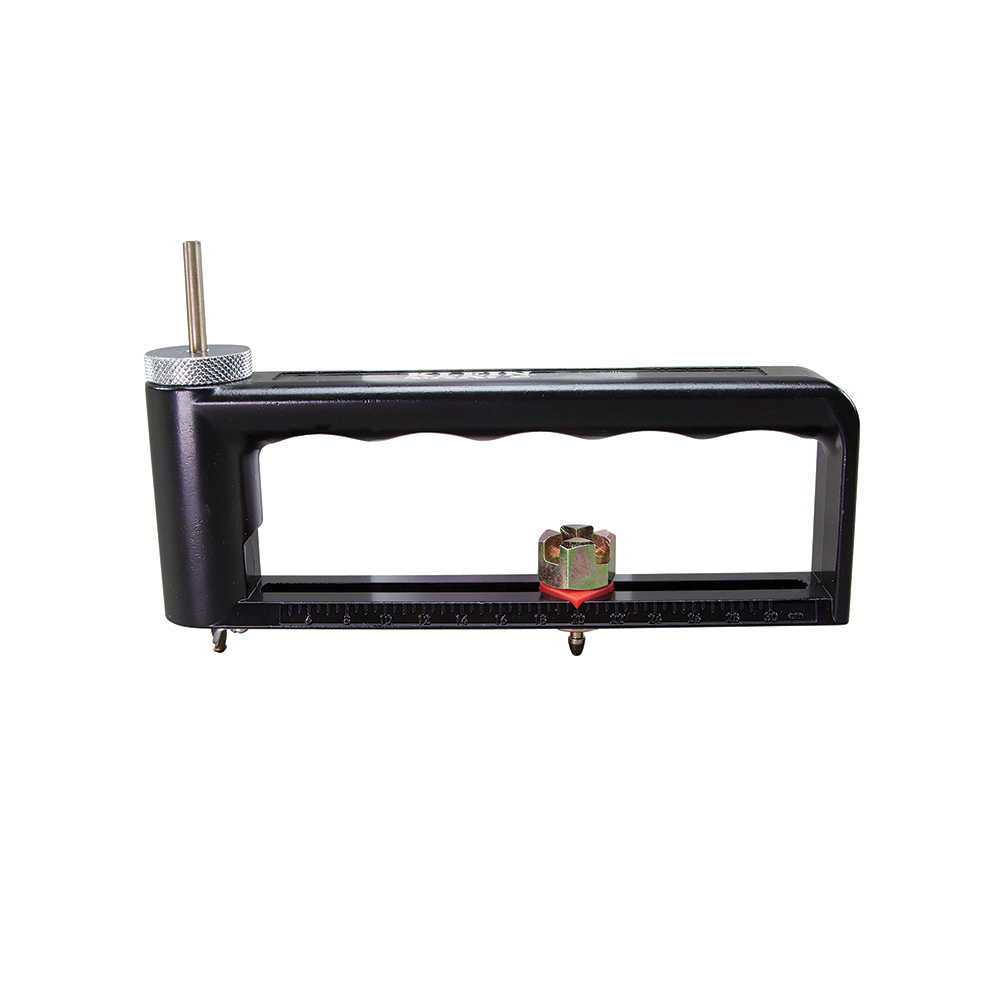

Hole Cutter for Duct and Sheet Metal | 51 to 305 mm | Cuts Up to 24-Gauge Steel | Adjustable Pivot Point | by Wattmaster
The Hole Cutter for Duct and Sheet Metal is designed for precision cutting of holes ranging from 51 mm to 305 mm in sheet metal and ductwork. Ideal for HVAC professionals, it features a durable aluminium alloy body and a heat-treated chromium bit, ensuring long-lasting performance. With inch and centimetre measurement scales for accuracy, this tool is perfect for sheet metal fabrication and modification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hole Cutter for Duct and Sheet Metal | 51 to 305 mm | Cuts Up to 24-Gauge Steel | Adjustable Pivot Point | by Wattmaster
Brand: Wattmaster
SKU: A-89552
Alternatively Known As: Duct Hole Cutter, Sheet Metal Hole Cutter, Adjustable Hole Saw for Metal, HVAC Hole Cutter
Technical Specifications
- Hole Diameter: 2'' to 12'' (51 mm to 305 mm)
- Cutting Capacity: Up to 24-gauge steel and 26-gauge stainless steel
- Material: Aluminium Alloy body with black powder coating
- Bit Material: Heat-treated chromium
- Bit Length: 4.3'' (109.2 mm)
- Overall Length: 7.2'' (183 mm)
- Overall Height: 4.3'' (109 mm)
- Overall Width: 1.1'' (29 mm)
- Weight: 14.2 oz (404 g)
- Cutting Pattern: Circle
- Dimensions (H x L x W): 109mm x 183mm x 29mm
- Weight: 0.404 kg
Key Features

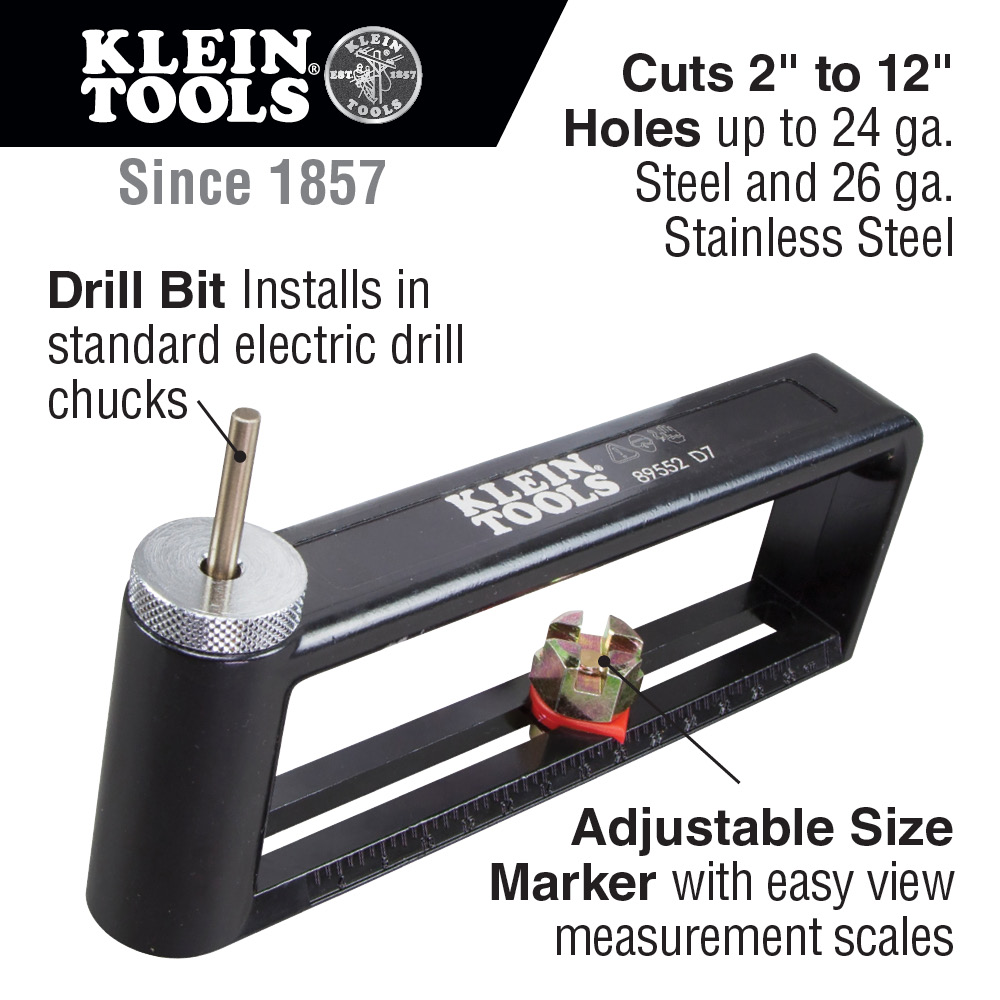

- Cuts 2'' to 12'' (51 mm to 305 mm) holes in sheet metal
- Suitable for up to 24-gauge steel and 26-gauge stainless steel
- Inch and centimetre measurement scales moulded into the body for accuracy
- Quality bearings for long cutting life
- Fits standard electric drill chucks

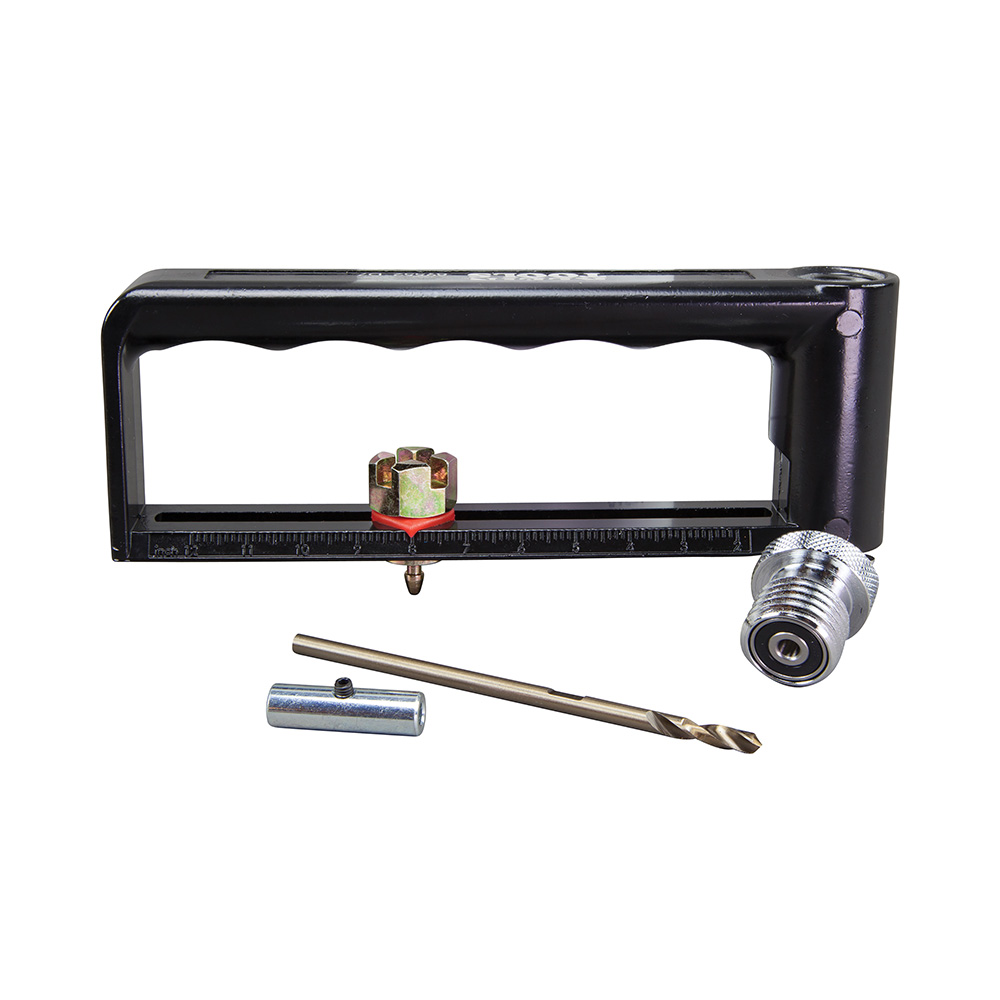

- Includes replacement bit and L-Style Hex-Key for tightening
- Adjustable pivot point for accurate hole sizing
- Black powder coated aluminium alloy body
- Heat-treated chromium bit
Professional Installation Requirements
- Use by trained professionals or under supervision. Always wear approved eye protection and avoid use near live electrical circuits. Not insulated; does not protect against electric shock.
Applications

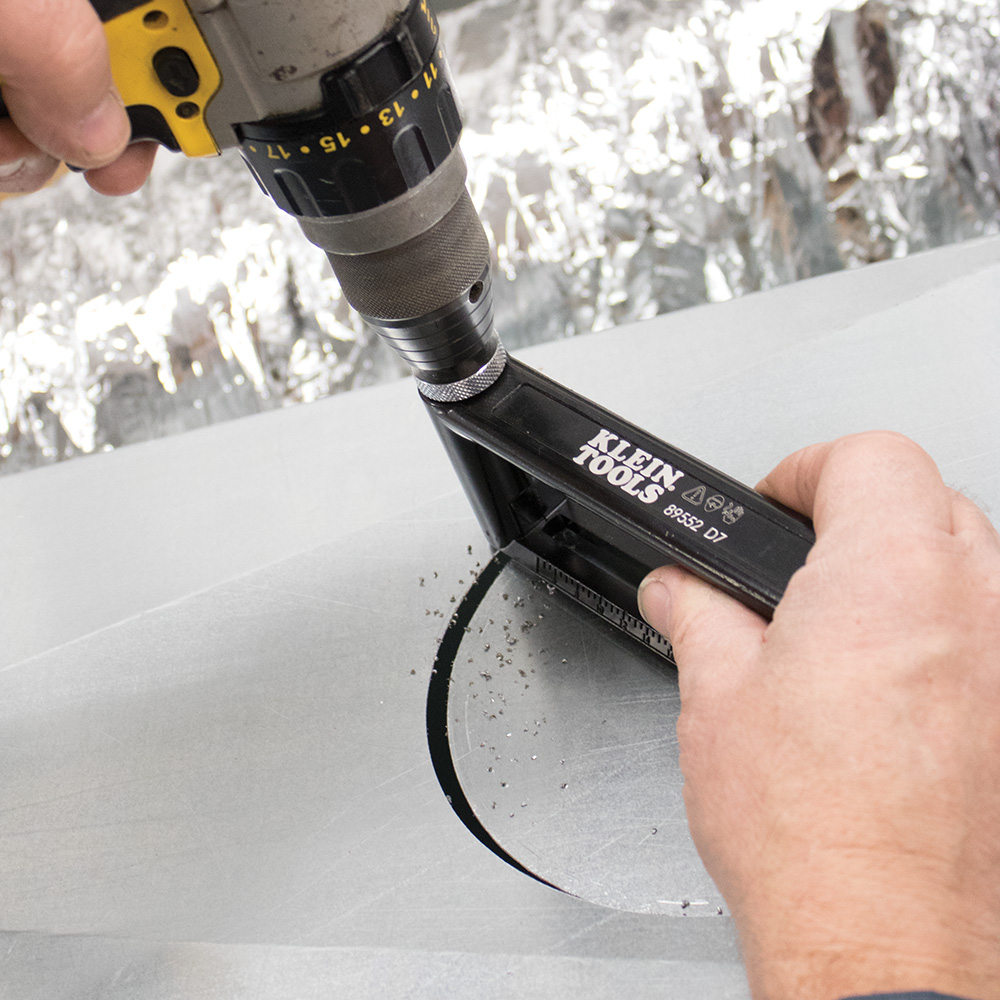

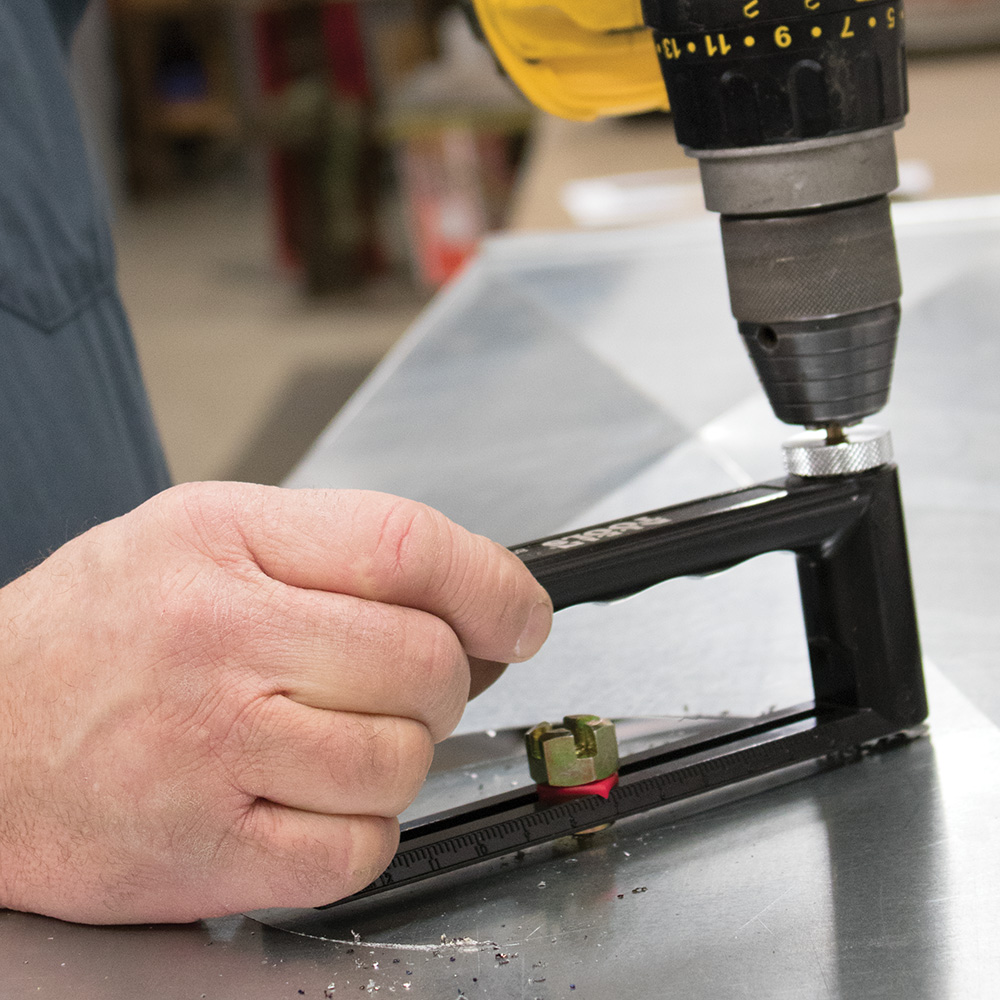

- Cutting precise holes in ductwork
- Sheet metal fabrication and modification
- HVAC installation and maintenance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Precision cutting minimizes material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Hole Cutter for Duct and Sheet Metal 51 to 305 mm is available now for immediate purchase. Ideal for HVAC professionals and sheet metal workers requiring precise hole cutting.
